Flatbed Semi Trailer

Flatbed Semi Trailer

The flatbed semi trailer are versatile. When transporting goods such as logs,We can install the 1.2 meters height front panel and 6 stand columns on each side,which are removable.The bottom platform of 40 ft flatbed semi trailer has 12 twist locks to stabilize the container while it is being transported.

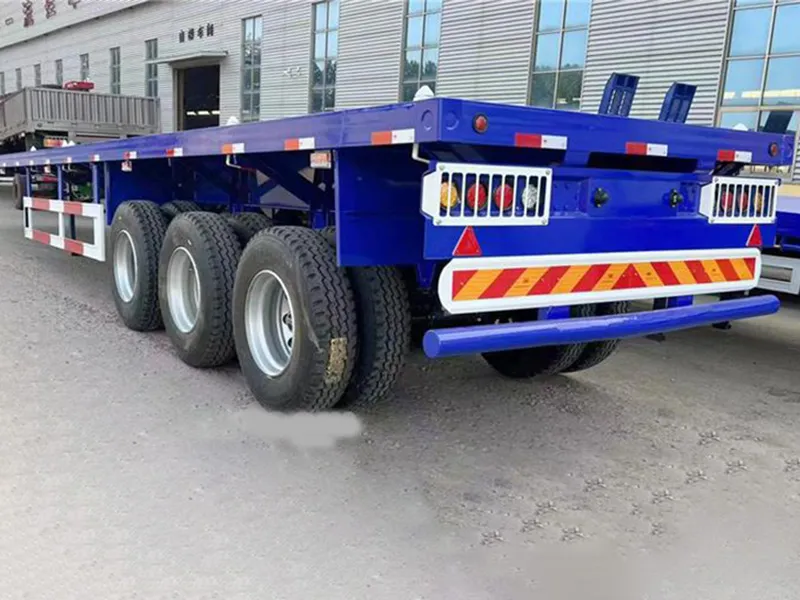

Product Gallery Of Flatbed Semi Trailer

Product Parameter Of Flatbed Semi Trailer

Specifications
Dimension 12.5m×2.5m×1.6m (Outside)
Payload Max.50T
Tare weight About 7.5T
Twist lock 12 units for 20ft 40ft container
Main beam Heavy duty and extra durability designed “H” beam; Opting for high tensile steel Q345B, Welded by automatic Submerged-Arc processes.
Frame Beam Top 14mm, Middle 8mm; Bottom16mm, Width 140mm, Height 500mm
Frame Floor The Thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10#Channel
Along beam 6#Channelx6
Axle 3 units 14tons  heavy axles for Africa rough road condition
Landing Gear JOST brand 28T lifting capacity with linkage speed
King Pin 2.0 or 3.5 inch
Suspension Mechanical suspension reinforced type
Leaf Spring 90mm(W)*16mm(T)*10Layer
Pneumatic Braking System Dual line pneumatic brake system, T30/30+T30 air chamber , 40L air tanks, Emergency relay valve
Tire 12R22.5*12pcs, TRIANGLE brand
Accessories Two standard tool box and spare tire carriers
Electrical system 24 volt electrical system.7 pin electrical connector. Parking ,stop,reverse,number plate and indicator lights, rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Color Optional

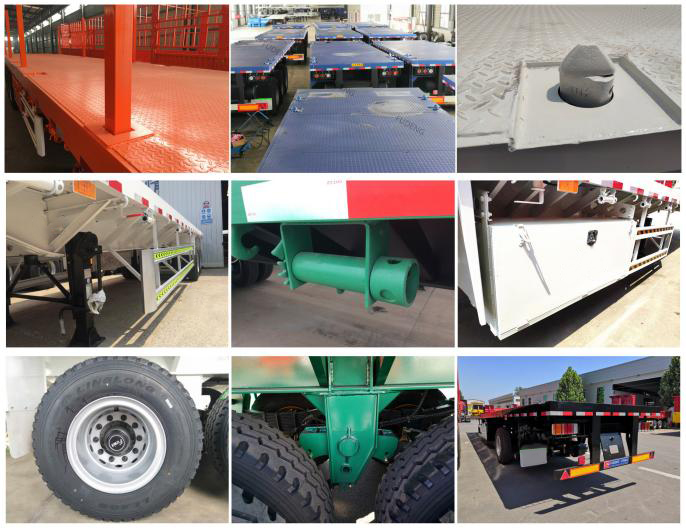

Product Detail Of Flatbed Semi Trailer

  1. 28T Landing Gear; One or Two side operation on your requirement; JOST or FUWA brand.
  2. Heavy duty and extra durability designed “H” beam, Opting for high tensile steel Q345B.Welded by automatic Submerged-Arc processes.
  3. Axle: 12T 13T 16T Axles; FD, L1, FUWA, BPW brand on your requirement. Multi-axles, such as 4 axles 5 axles 6 axles on your requirement too.
  4. Tyre: Tubeless tyres: 12R22.5 13R22.5 Double-tyres or 385/65R22.5 Super single tyres ;Steel wire tires:12.00220,11.00220,according to your requirement.
  5. Mechanical Suspension or Air Suspension on your requirement.
  6. Painting and LOGO: we can paint your logo on or make stickers on your flatbed semi trailer.
flatbed-semi-trailer

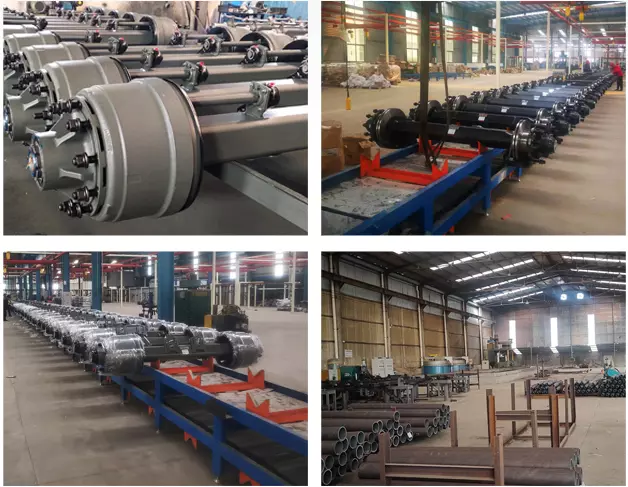

American type axle

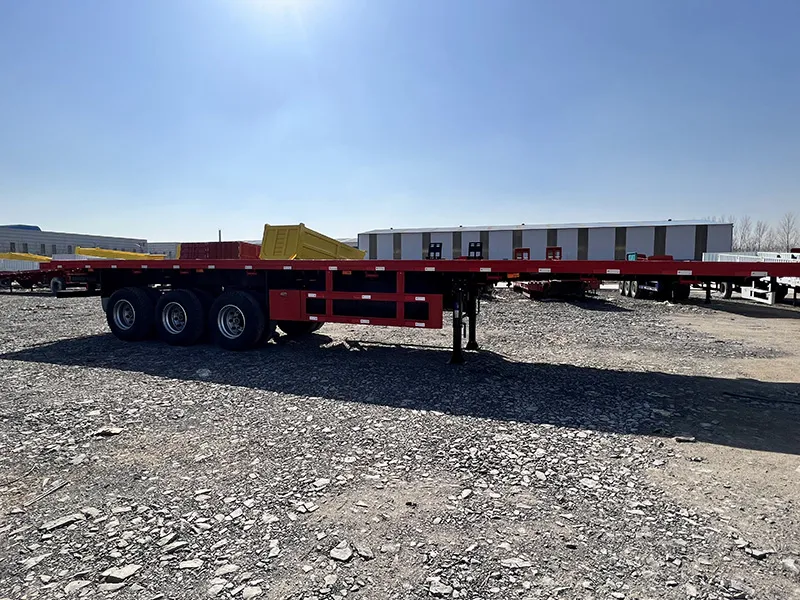

Working Principle Of Flatbed Semi Trailer

Flatbed Semi Trailer
Flatbed Semi Trailer
The working principle of a flatbed semi-trailer is relatively straightforward. Here’s a breakdown:
  1. Structure: A flatbed semi-trailer consists of a flat, level bed surface mounted on a chassis with wheels. The bed is typically made of steel and may have wooden or metal side rails to contain loads.
  2. Hitching: The flatbed semi-trailer is hitched to a tractor truck using a fifth-wheel coupling mechanism. This connection allows the trailer to be towed by the truck.
  3. Loading and Unloading: The flatbed design allows for easy loading and unloading of cargo from the sides or overhead. Forklifts, cranes, or other lifting equipment are commonly used to load and unload heavy or oversized items onto the trailer.
  4. Securing Cargo: Once loaded, cargo on the flatbed semi-trailer needs to be properly secured to prevent shifting or falling during transit. This is typically done using straps, chains, binders, or other tie-down equipment attached to anchor points on the trailer bed.
  5. Transportation: Once the cargo is securely loaded and the trailer is attached to the tractor truck, it is ready for transportation. The truck driver operates the vehicle, adhering to safety regulations and road traffic laws.
  6. Unhitching and Unloading: Upon reaching the destination, the trailer is unhitched from the truck, and the cargo is unloaded using appropriate equipment. The process is similar to loading but in reverse.
  7. Maintenance: Regular maintenance of the flatbed semi-trailer is essential to ensure its safe operation. This includes inspecting the tires, brakes, lights, and structural components for any signs of wear or damage.

Application Scenarios Of Flatbed Semi Trailer

Flatbed semi trailers are versatile transportation tools commonly used in various industries for transporting large and heavy loads. Here are some application scenarios where flatbed semi trailers are frequently utilized:

  1. Construction Industry: Flatbed trailers are extensively used in the construction sector for transporting construction materials such as steel beams, lumber, pipes, and heavy machinery like excavators, bulldozers, and cranes to and from construction sites.
  2. Transportation of Oversized Loads: Flatbed trailers are ideal for transporting oversized or irregularly shaped loads that cannot fit into enclosed trailers or containers. This includes large industrial equipment, prefabricated structures, wind turbine components, and oversized machinery.
  3. Shipping Containers: Flatbed trailers are commonly used for hauling shipping containers. They are often employed in ports and freight yards for loading and unloading containers from ships and trains, as well as for transporting containers over long distances.
  4. Manufacturing and Industrial Logistics: Manufacturers and industrial facilities use flatbed trailers to transport raw materials, finished products, and equipment between different facilities or to deliver products to customers. This includes transporting steel coils, aluminum sheets, automotive parts, and other bulk materials.
  5. Transportation of Vehicles: Car carriers, a type of flatbed trailer, are specifically designed for transporting automobiles, trucks, and other vehicles over long distances. Car manufacturers, dealerships, rental companies, and individuals use car carriers to transport vehicles between locations.
  6. Agricultural Sector: Flatbed trailers are used in agriculture for transporting farm machinery, equipment, and supplies such as tractors, combines, harvesters, irrigation equipment, and large bales of hay or straw.
  7. Renewable Energy Industry: In the renewable energy sector, flatbed trailers are used to transport components of wind turbines, solar panels, and other renewable energy infrastructure to construction sites. These components are often large and require specialized handling and transportation.
  8. Military and Defense Applications: Flatbed trailers are used by military and defense organizations for transporting military vehicles, equipment, and supplies. They are essential for logistical operations during military deployments, exercises, and missions.
  9. Emergency Response and Disaster Relief: Flatbed trailers are utilized in emergency response and disaster relief efforts to transport supplies, equipment, and temporary shelters to affected areas. They can carry items such as generators, water tanks, medical supplies, and temporary housing materials.
  10. Entertainment Industry: Flatbed trailers are sometimes used in the entertainment industry for transporting stage equipment, sets, props, and lighting rigs between venues for concerts, festivals, film shoots, and other events. They provide a convenient and flexible solution for moving large and bulky equipment.

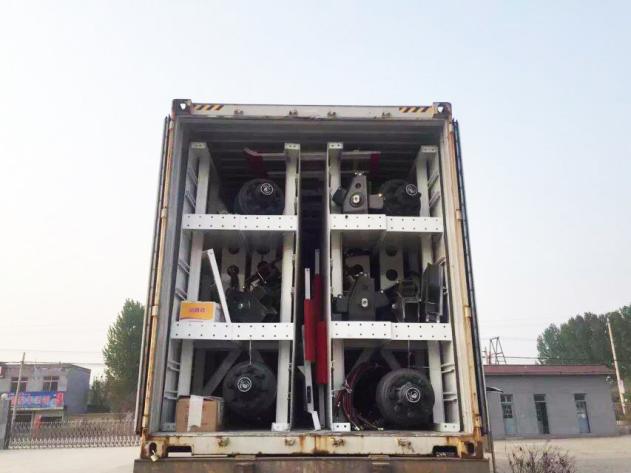

Product Shipping Of Flatbed Semi Trailer
