Skeleton Trailer

The skeleton trailer is a specialized type of trailer designed for transportation of large and heavy loads. It features a skeletal structure with minimal framework, maximizing cargo space and reducing overall weight. This lightweight design allows for increased payload capacity and improved fuel efficiency. Skeleton trailers are commonly used in industries such as shipping, logistics, and construction, where hauling oversized or irregularly shaped cargo is required.

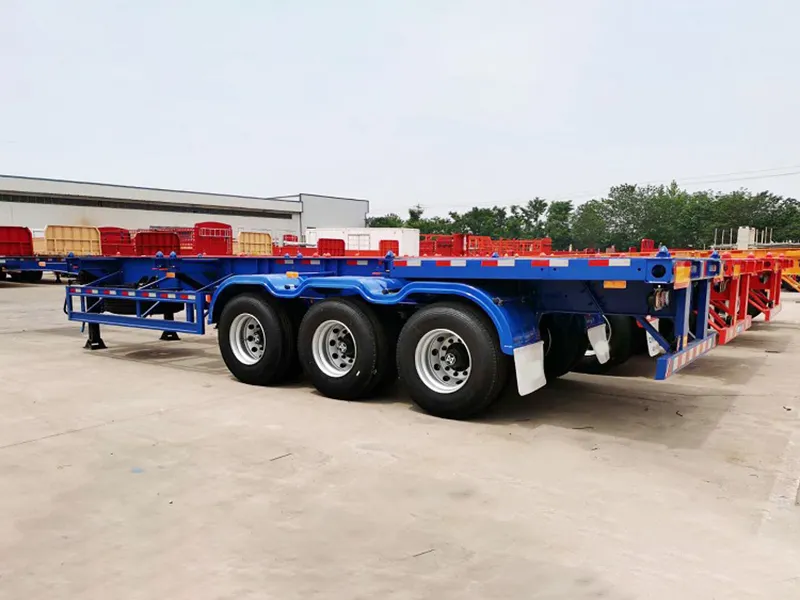

Product Gallery Of Skeleton Trailer

Product Parameter Of Skeleton Trailer

Specifications
Dimension 12.5m×2.5m×1.6m (Outside)
Payload Max.50T
Twist lock 12 units for 20ft 40ft container
Main beam Heavy duty and extra durability designed “H” beam; Opting for high tensile steel Q345B, Welded by automatic Submerged-Arc processes.
Frame Beam Top Flange 14mm; Middle Flange 8mm; Bottom Flange 16mm; width 140mm, main beam height 500mm
Axle 3 axles design for Africa road condition
Landing Gear JOST brand 28T lifting capacity
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10Layer
Pneumatic Braking System Dual line pneumatic brake system, T30/30+T30 air chamber , 40L air tanks, Emergency relay valve
Tire 12R22.5*12pcs, TRIANGLE brand
Accessories One standard tool box and spare tire rack
Electrical system 24 volt electrical system.7 pin electrical connector. Parking ,stop,reverse,number plate and indicator lights, rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

Decomposition Chart Of Skeleton Trailer

Decomposition Chart Of Skeleton Trailer

What Is The Skeleton Trailer?

  • A skeleton trailer, or skeletal trailer, is a type of semi-trailer characterized by its lightweight and minimalistic frame structure. Unlike traditional trailers, skeleton trailers typically have no sides or roof, providing an open framework that resembles the skeleton of a trailer. This design is specifically tailored for efficiently transporting shipping containers, allowing for easy loading and unloading of containers onto the trailer.
  • Skeleton trailers are commonly utilized in the logistics and transportation industries, particularly for intermodal transportation of containers between various points such as ports, rail yards, and warehouses. The open frame of the skeleton trailer enables quick and secure handling of containers, maximizing cargo capacity and streamlining the container transfer process. Due to their versatility and efficiency, skeleton trailers are a popular choice for businesses involved in container transport and intermodal operations.

Product Advantage Of Skeleton Trailer

The skeleton trailer’s lightweight frame structure allows for enhanced fuel efficiency and increased payload capacity, making it a cost-effective option for transporting containers.

The open frame design of skeleton trailers makes it simple and efficient to load and unload shipping containers, reducing turnaround time and improving productivity.

Skeleton trailers are versatile and can easily accommodate different sizes and types of shipping containers, making them a flexible option for various transportation needs.

Skeleton trailers are designed to facilitate the seamless transfer of containers between different modes of transport, such as ships, trains, and trucks, making them ideal for intermodal logistics operations.

Skeleton trailers are built to withstand heavy loads and tough operating conditions, requiring minimal maintenance and offering long-lasting durability.

Skeleton Trailer

How do Skeleton Trailer work?

  1. Loading: The skeleton trailer is designed with an open skeletal frame structure that allows for easy loading of cargo such as containers, pallets, or other goods. The cargo is typically secured using straps, chains, or other methods to ensure safe transportation.
  2. Transportation: The trailer is attached to a vehicle using a hitch and towed to the designated destination. The skeletal design of the trailer provides ample space for the cargo to be transported securely and efficiently.
  3. Unloading: Upon reaching the destination, the cargo can be easily unloaded from the skeleton trailer using equipment such as forklifts or cranes. The open design of the trailer facilitates quick and efficient unloading of the cargo.
  4. Versatility: The skeletal structure of the trailer makes it versatile for transporting a wide range of goods, including oversized or odd-shaped items. The open design allows for flexibility in loading different types and sizes of cargo.
  5. Stability: The sturdy skeletal frame of the trailer provides stability during transportation, ensuring that the cargo remains secure and well-supported. This stability helps prevent shifting or damage to the cargo while in transit.
  6. Durability: The skeleton trailer is typically constructed with strong materials that can withstand heavy loads and rough road conditions. This durability allows the trailer to safely transport cargo over long distances and under various environmental conditions.

How To Choose A Skeleton Trailer?

When choosing a skeleton trailer, consider the following factors:

  1. Payload capacity: Determine the maximum weight of the cargo you will be transporting and choose a trailer with a payload capacity that can accommodate your needs.
  2. Size and dimensions: Consider the size and dimensions of the cargo you will be transporting to ensure that the trailer can accommodate the size of your goods.
  3. Type of cargo: Consider the type of cargo you will be transporting, such as containers, pallets, or other goods, and choose a trailer that is suitable for that specific type of cargo.
  4. Material and construction: Look for trailers made from durable materials such as steel or aluminum to ensure longevity and durability for transporting heavy loads.
  5. Compatibility: Ensure that the trailer is compatible with your towing vehicle and meets any regulations or requirements for transporting cargo in your region.
  6. Safety features: Check for safety features such as brake systems, lighting, and reflective markers to ensure safe transportation of your cargo.
  7. Budget: Consider your budget and compare prices and features of different skeleton trailers to find one that offers the best value for your needs.

Application Scenarios Of Skeleton Trailer

  1. Transportation of containers: Skeleton trailers are commonly used for transporting shipping containers from ports to warehouses or distribution centers.
  2. Construction materials: trailers are used for transporting construction materials such as steel beams, pipes, and concrete slabs to job sites.
  3. Agriculture: trailers can be used for transporting agricultural products such as grain, hay, or livestock feed.
  4. Recycling industry: trailers are utilized for transporting recyclable materials such as metal, paper, or plastics to recycling facilities.
  5. Moving and storage: trailers can be used for moving and transporting household goods, furniture, and personal belongings during a relocation.
  6. Manufacturing industry: trailers can be used for transporting raw materials and finished products between manufacturing facilities or suppliers.
  7. Event logistics: trailers are used for transporting equipment and supplies for events such as concerts, festivals, or fairs.

Product Shipping Of Skeleton Trailer

Skeleton chassis semi trailer will ship to your country by Container,Bulk Cargo or RO-RO.When you choose container transportation,40 ft skeleton chassis semi trailer we will remove 1.25 meters bottom plate at the end to save the money.When bulk cargo is transported, we will spray wax to prevent corrosion and rust.If it is RO-RO, it will be put directly inside the cabin.If you buy more than two skeleton chassis semi trailers, We’ll stack them to reduce the volume, so as to reduce the ocean freight cost for you.

Our company provides good service for customers.About shipping,you can arrange  your own ships to pick up the goods at Chinese ports, and we can also help you arrange the shipments.We will find a shipping company and keep you updated estimated time of arrival.Ensure the safe and stable delivery of the trailer to your hands.
