Spoke axle

Product Application of Spoke axle

Axle
According to different driving methods, axles are also divided into four types: steering axle, drive axle, steering axle and support axle. The steering axle and the support bridge are both driven bridges. Most cars use a front-mounted rear drive (FR), so the front axle acts as a steering axle and the rear axle acts as a drive axle; while the front-front drive (FF) car has a front axle that becomes a steering axle and the rear axle acts as a support bridge.

Spoke axle

The structure of the steering axle is basically the same, consisting of two knuckles and a beam. If the beam is compared to the body, the knuckle is the head that he shakes around. The neck is the kingpin we often say, and the wheel is mounted on the knuckle, as if a straw hat is on the head. However, when driving, the straw hat turns, but the head does not turn. The middle is separated by bearings, and the head only shakes left and right. Neck – The kingpin is the axis of rotation of the wheel. The axis of this axis is not perpendicular to the ground. The wheel itself is not vertical. We will discuss this in the wheel positioning section.

Product Advantages of Spoke axle

1.The spoke axle series is from 12t to 18t, and the track can be made according to customer’s requirements.

2. Spoke axles are suitable for areas with special climate and road surface, and some spare parts can be interchanged with ordinary axles.

3. S-type cam head design and adjustable brake chamber sub-pump hole make its braking force larger, and it can more reasonably distribute the front, rear and rear axle braking forces, and the braking force distribution is more reasonable.
The special formula shoe used has a large friction coefficient, high temperature resistance, better braking performance, and long-distance braking can also operate freely, which can shorten the braking distance.

Product Parameters of Spoke axle

MODEL
Capacity
Tread Rut
Axle Tube
Total Length
Studs
Recommended Wheel
LH-4321610
12T
1840mm
□150mm
2158mm
6-M20*2
Trilex wheel 8.5-24
LH-4351610
12T
1840mm
□150mm
2158mm
6-M20*2
Trilex wheel 8.5-24
LH-4327610
14T
1840mm
□150mm
2172mm
6-M20*2
Trilex wheel 8.5-24
LH-4328610
16T
1840mm
□150mm
2245mm
6-M20*2
Trilex wheel 8.5-24
LH-4329610
18T
1840mm
□150mm
2245mm
6-M20*2
Trilex wheel 8.5-24
LH-4352610
18T
1840mm
□150mm
2245mm
6-M20*2
Trilex wheel 8.5-24

Product Detail of Spoke axle

Spoke axle
Machine Parts

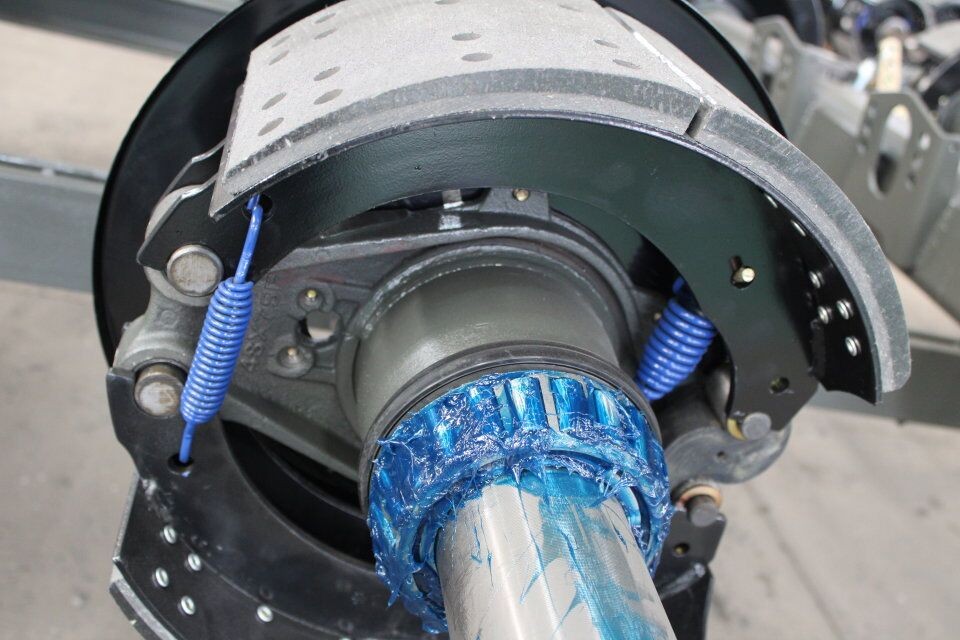

Name: Brake Lining

Original: China

This product has high quality brake lining.

The brake pad is squeezed on the brake disc or brake drum to produce friction when the vhicle need to be braked. Because of the friction, the friction block will gradually be worn out. High quality brake lining can improve the service life of the trailer axler

Machine Parts

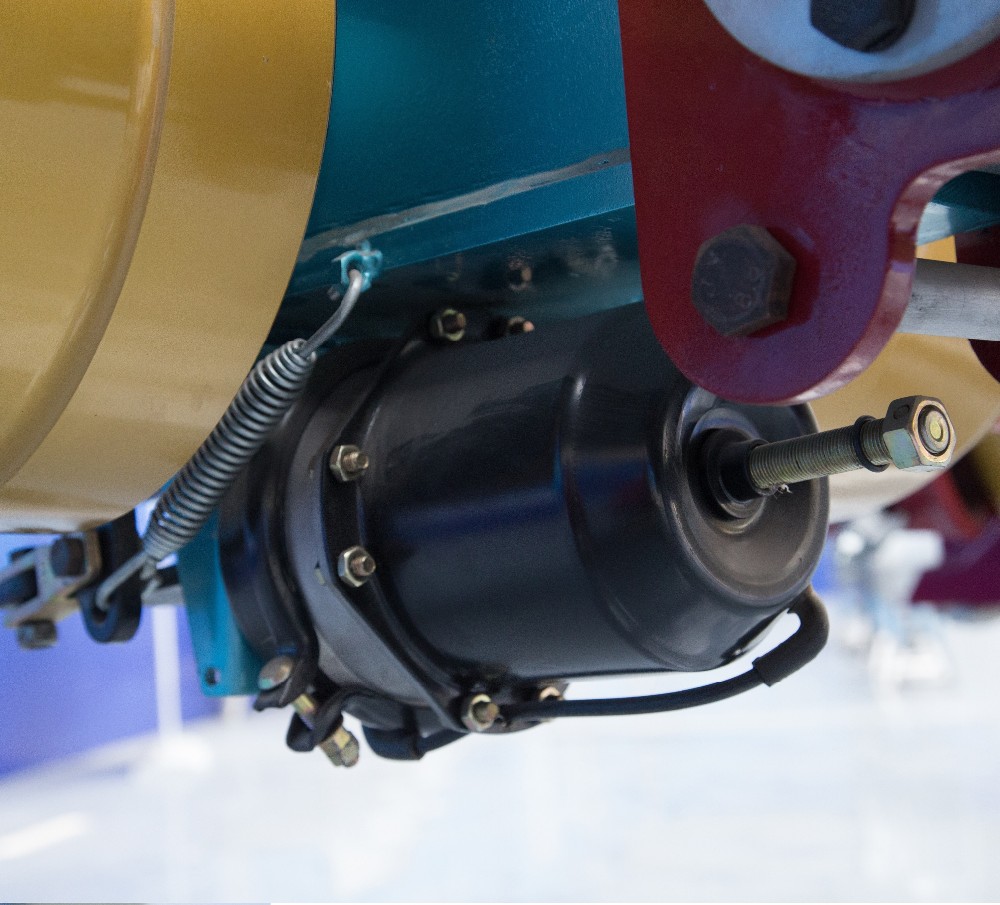

Name:Air chamber bracket
Original: China
If the trailer needs to use the air chamber, this air chamber bracket can help you to install it on to your trailer.

Spoke axle
Spoke axle
Machine Parts

Name: Hub Cap
Original: China
The function of the hub cap is usually use to install the bearing, which plays the role of the equipment running on the bearing shaft. We can also Customized different kinds of LOGOs on the hub cap.

Machine Parts

Name: Adjust Slack
Original: China
The adjusting slack can ensure that the wheel has a constant brake clearance and it can also make the brake  safe and reliable. This part can improve the safty of your trailer.
