Air suspension

Product Application of American Type Air Suspension

1. The air suspension system is light in weight, safe, reliable, stable, noiseless, and comfortable.
2. The air suspension has high machining accuracy, convenient use and installation, and long service life of parts.
3. Good economy, light weight, large cargo capacity, and the axle can be lifted when empty to reduce tire wear.
American Type Air Suspension
Germany Type Air Suspension

Product Application of Germany Type Air Suspension

Our trailer suspension equipped with strong one-piece or welded axle head, exceeding the industry standard for hardness and tensile strength. Stable and reliable brake system with non-asbestos brake linings.
1. Products Name: Heavy duty trailer 3 Axles Suspension factory made
2. Suspension Track: 1310mm
3. Suspension Hanger Thickness: 6mm
4. Product type: American, Germany and Europe type
5. Two axles and three axles type are available
6.Equalizer Thickness: 12mm

7.Material: Steel

8.Equalizer Pin: 60mm

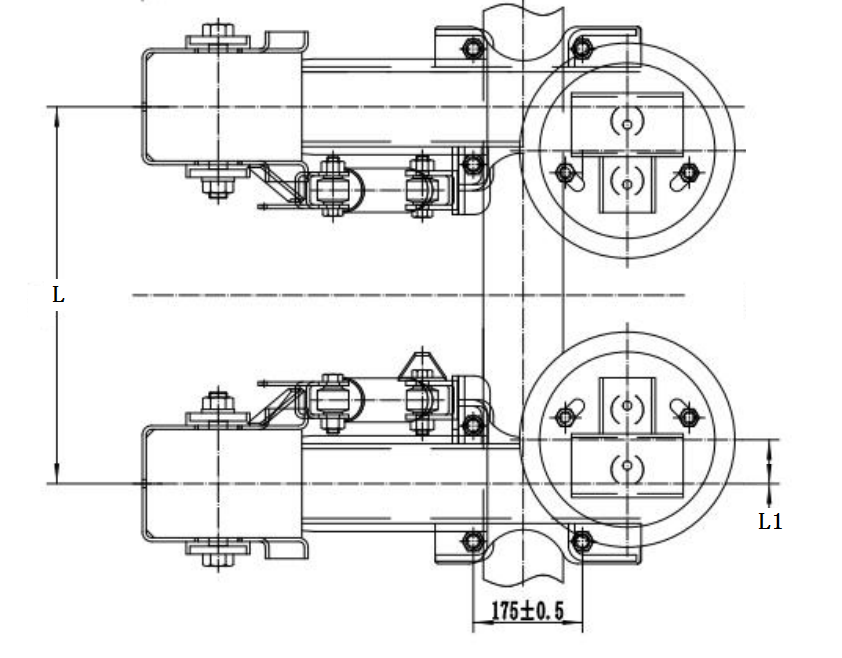

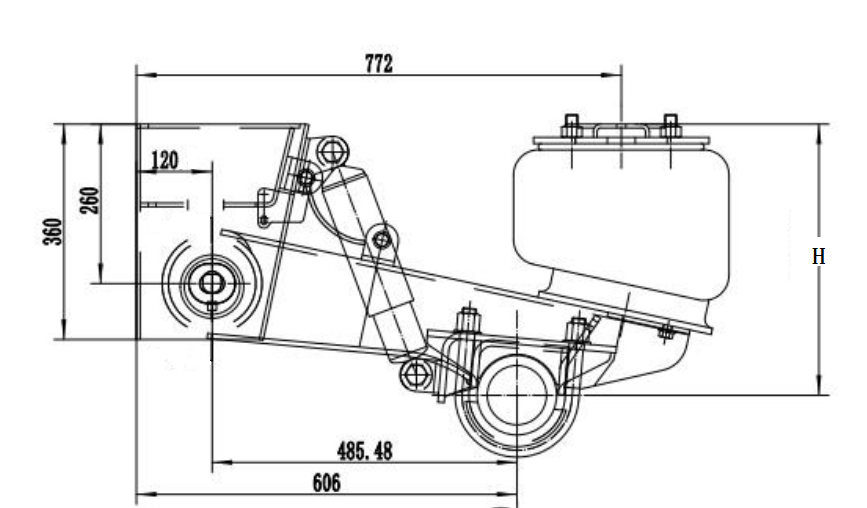

Product Parameters of Air suspension

Model

H

(mm)

L1

(mm)

Axle Spacing

(mm)

Air Bag Spec

(mm)

Axle Load

(kg)

LHAAS-38011

380

63.5

1220-1360

∅343

11000

LHAAS-43011

430

63.5

1220-1360

∅343

11000

LHAAS-48011

480

63.5

1220-1360

∅343

11000

LHAAS-38013

380

75

1220-1360

∅381

13000

LHAAS-43013

430

75

1220-1360

∅381

13000

LHAAS-48013

480

75

1220-1360

∅381

13000

1. It can be equipped with lifting air suspension according to customer requirements.

                              2. According to customer requirements, there are reverse/formal air suspensions.

Model Capacity(mm) Suspension Height(mm) Height of plate(mm) Leaf spring thickness
LH-180 13T*3 180 1180 12mm
LH-230 13T*3 230 1230 12mm
LH-270 13T*3 1270 335 16mm
LH-320 13T*3 1320 335 16mm

Product Detail of Air suspension

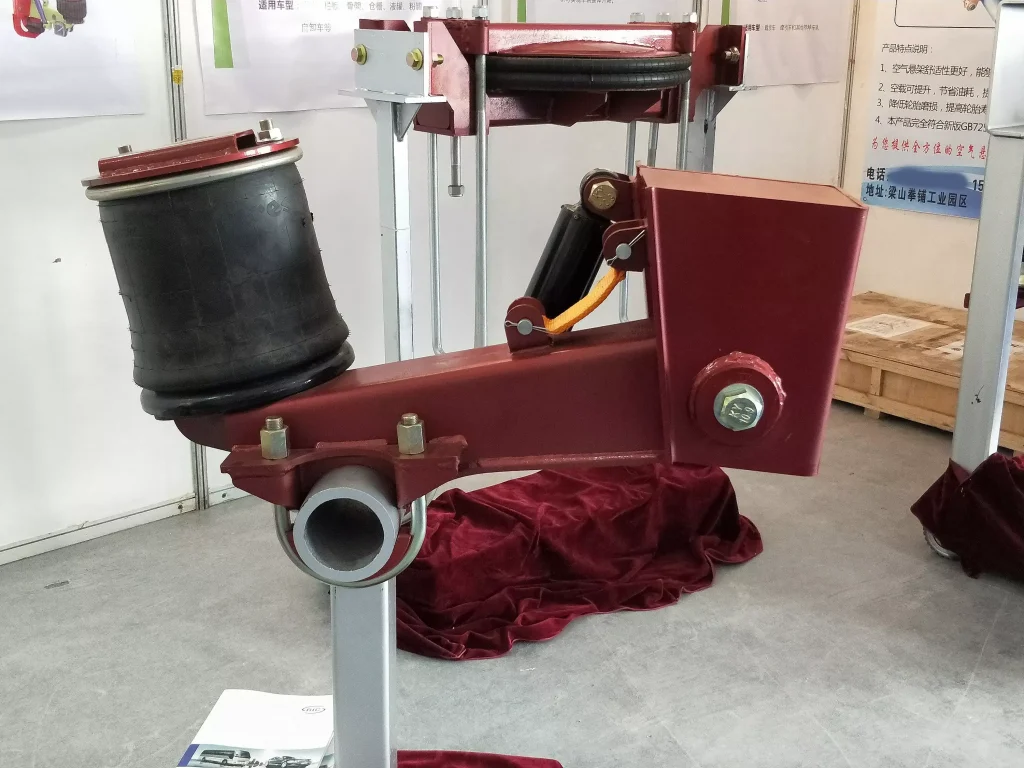

Product Detail of  American Type Air Suspension:

1. The air suspension system is light in weight, safe, reliable, stable, noiseless, and comfortable. 2. The air suspension has high machining accuracy, convenient use and installation, and long service life of parts. 3. Good economy, light weight, large cargo capacity, and the axle can be lifted when empty to reduce tire wear.

American Type Air Suspension
Product Detail of  Germany Type Air Suspension:

1. Suspension Body Advantage: suspension is made of high-quality alloy steel with a special process, high strength and lightweight, and the two ends of the tube body have good coaxially.

2. Suspension pin Advantage: Brake Shoes Holder six hole boring machine using six completed a one-time processing, high processing, high position precision, asbestos free friction plate, in line with international environmental standards.

3. Quality Assurance:

1). The Whole suspension assured one year.

2). Other parts, assured three months.

4.Other Details:

Germany Type Air Suspension

1). Professional heat treatment.
2). Precise welding technology.
3). Strictly tested and defect-free.
4). World top after-sales service.

 13T 14T 16T 18T 20T AmericanType Semi Trailer suspension that sells well around the world. Here we have only listed some of the models we produce, and please note that we can produce American Drum Wheel Brake Axle of various specifications according to your drawings, sample or specific parameters you give us.

Factory Show

American type axle

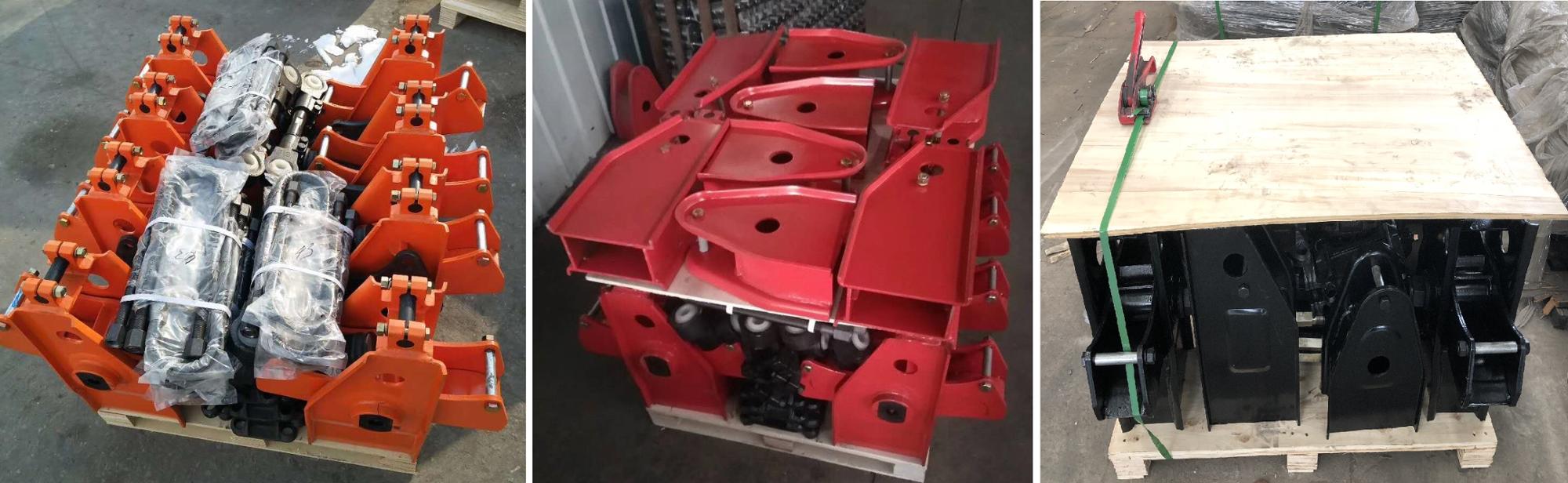

Package Delivery
