Windmill Blade Trailer

Windmill Blade Trailer

windmill blade trailer for transport rotor blade, wind blades , e-138 e2 rotor blade. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
Hauling wind turbine blades mainly includes wind blades, nacelles, e-138 e2 rotor blade,hubs and towers, and each component is an over-limit item for ordinary road transportation, which requires professional wind turbine blade transport trailer for transportation and assemble a wind turbine.

Product Type Of Windmill Blade Trailer

Windmill Blade Trailer

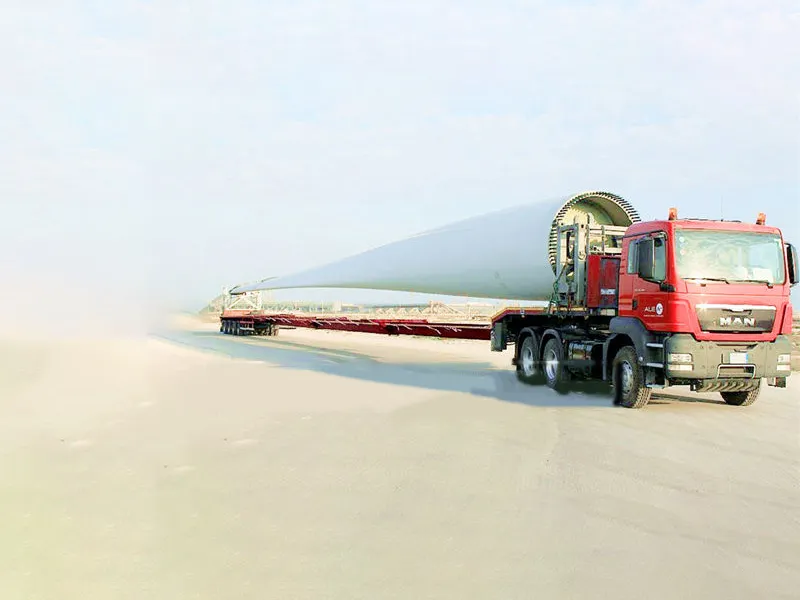

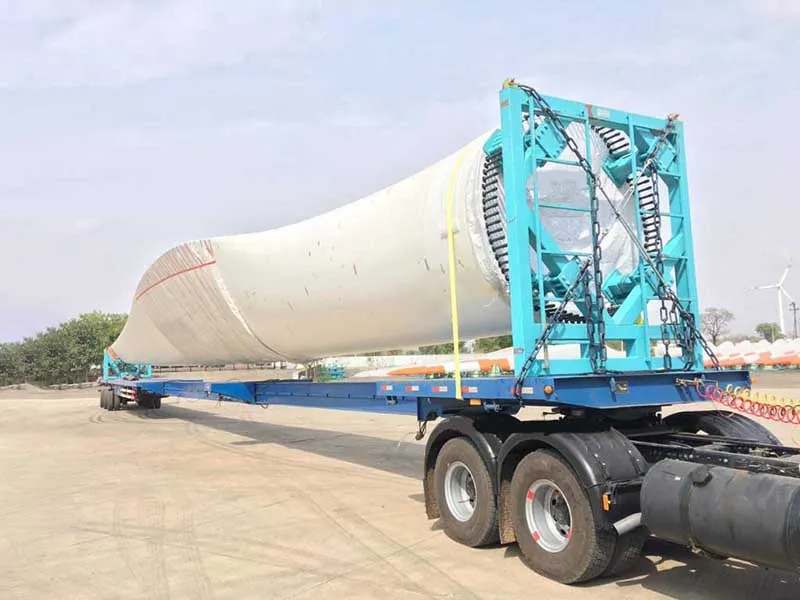

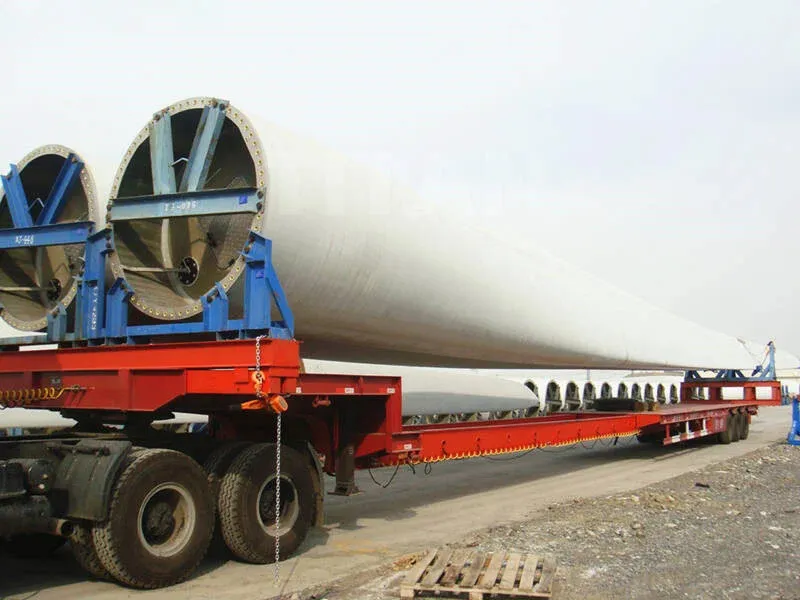

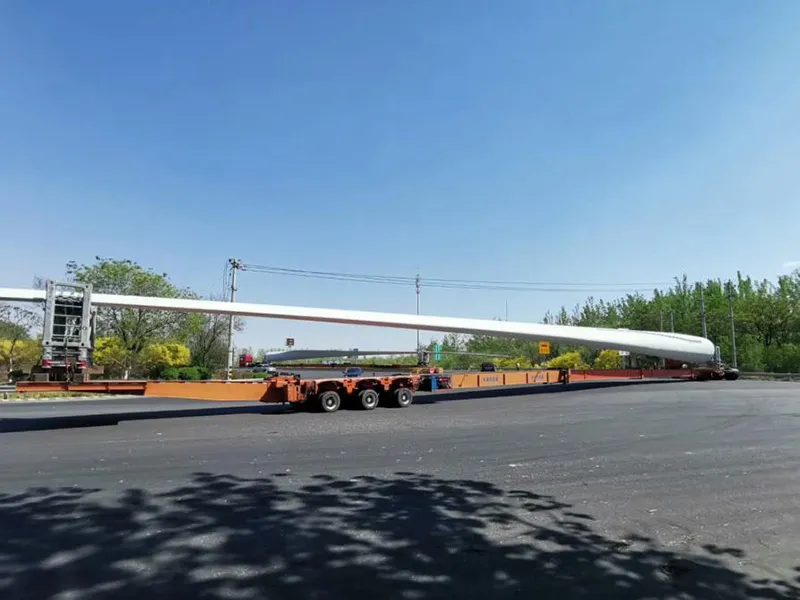

Ordinary extendable flatbed trailer

  • This transport method generally uses ordinary extendable flatbed trailer to transport wind blades. The characteristics of this extendable trailer for sale are that it can be extended and retracted to accommodate blades of different lengths.
  • These can be used to transport both wind blades and the tower. This is the kind of wind turbine transport vehicles that you need if you want to handle the different kinds of loads in your operations. Extendable flatbed trailer design and construction are meant to take care of these needs.
  • The tail platform forms the rear section of the extendable trailer for sale. mega windmill transporter can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.

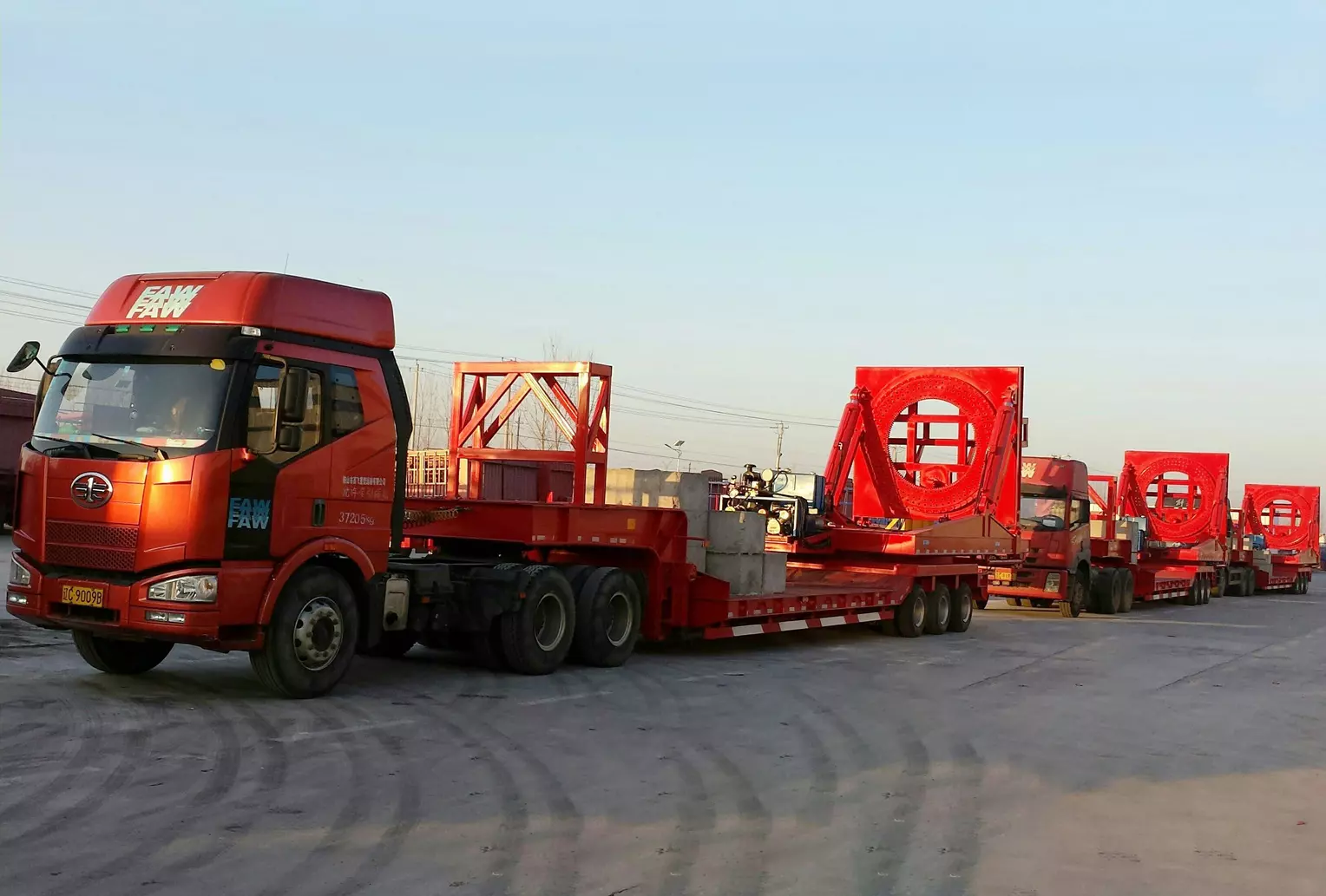

Windmill Blade Adapter transport trailer

  • This Windmill Blade Adapter transportation method generally uses a special blade lifters blade transportation wind turbine blade transportation with blade lifting-rotating-hydraulic rear wheel steering.
  • The special wind turbine transport vehicles can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport windmill trailer body can improve the curve passing performance.

Product Gallery Of Windmill Blade Trailer

Product Parameter Of Windmill Blade Trailer

Size 17,000mm (can be extended to 26,000mm)*14,000mm
Payload 50tons(after fully extension) 150tons(fully enclosed)
Chassis T700 Plates With Quality Sheet For Automatic Arc Welding Submerged Meta, Compatible With Body Design, One-Piece Chassis.
Main Beam Height:500mm, Upper Plate Is 25mm, Down Plate Is 25mm, Double Middle Plate Is 12 mm.
Side Beam Side beam 280mm, three-in-one H-shaped edge beam
Floor Thickness of Surface is 5mm; Steel Plate(Full coverage floor over axles)
Suspension Mechanical Suspension With Leaf Spring
Axles 13 Tons
Tyre(Optional) 12.00*12 Pcs Steel Tyre; LINGLONG
Safety Protection Protection Rails On Both Sides And Rear Of The Trailer
Tool Box As International Standards*1 Pcs
Spare Wheel Carrier As International Standards*1 Pcs

What Is The Windmill Blade Trailer?

  • A windmill blade trailer is a specialized transportation vehicle designed to carry large wind turbine blades from manufacturing facilities to wind farm sites. These trailers are engineered to accommodate the extraordinary length and weight of the blades, which can range from 40 to over 70 meters in length and weigh several tons each. Typically, the trailer consists of a sturdy chassis equipped with multiple axles to distribute the weight evenly and ensure stability during transit. Additionally, specialized hydraulic or mechanical systems are often integrated to facilitate the loading and unloading process, as handling such massive components requires precision and care.
  • The design of a windmill blade trailer prioritizes safety and efficiency. Given the sheer size of the blades, transporting them over long distances presents unique challenges, including navigating narrow roads, sharp turns, and varying terrain. Therefore, these trailers are equipped with advanced braking and suspension systems to enhance control and stability, especially when encountering uneven surfaces or adverse weather conditions. Moreover, to mitigate the risk of accidents or damage to the blades, extensive safety measures such as reinforced securing mechanisms and escort vehicles are often employed to ensure a smooth and secure journey.
  • A windmill blade trailer plays a crucial role in the renewable energy industry by facilitating the transportation of oversized turbine components with precision and safety. Through innovative engineering and meticulous planning, these trailers enable the seamless delivery of wind turbine blades to their intended destinations, contributing to the expansion of wind energy infrastructure worldwide.

Product Advantage Of Windmill Blade Trailer

  1. Optimized Design: These trailers are specifically engineered to accommodate the extraordinary size and weight of wind turbine blades, ensuring they can be transported safely and efficiently. The design includes a sturdy chassis with multiple axles to evenly distribute weight and advanced braking and suspension systems for enhanced control and stability.
  2. Safety Features: Safety is paramount when transporting oversized components over long distances. Windmill blade trailers incorporate extensive safety measures such as reinforced securing mechanisms and escort vehicles to minimize the risk of accidents or damage to the blades. This prioritization of safety ensures a smooth and secure journey for both the cargo and other road users.
  3. Efficiency and Precision: Through innovative engineering and meticulous planning, these trailers enable the seamless delivery of wind turbine blades to their intended destinations. Specialized hydraulic or mechanical systems facilitate the loading and unloading process with precision, ensuring that the massive components are handled with care throughout transportation.
  4. Contribution to Renewable Energy: By facilitating the transportation of oversized turbine components, windmill blade trailers play a crucial role in the expansion of wind energy infrastructure worldwide. Their efficient operation supports the growth of renewable energy sources, contributing to sustainability and reducing reliance on fossil fuels.
Extendable Wind Blade Trailer
Extendable Wind Blade Trailer

Differences between wind blade adapter trailer and telescopic extendable trailers

1. Advantages of turbine blade transport trailer

The blade rotates flexibly, and the transformation cost is small. The blade sweeping area of ​​the special blade lifters wind blade adapter trailer blade lifting and transportation method is larger than that of an ordinary extendable trailer for sale. The blade sweeping area is large, and the area involved in the renovation project in the curve is reduced by about 10 times.

Blades can be transported by lifting, which can better avoid high mountains and cliffs, or house buildings, so about achieve rapid blade transportation. At the same time, this method can also reduce the cost of road reconstruction and house demolition, which can help improve blade transportation efficiency and engineering benefits.

2. Disadvantages of windmill  blade adapter trailer
  • High transportation costs. The transportation cost of using special blade lifters windmill blade trailer for sale is higher than that of ordinary flatbeds. For a wind farm with an installed capacity of 50MW, if it is transported by special windmill blade trailer for sale, the transportation cost will increase by about 3.5 million yuan.
  • There is a lot of work to clear the height limit. After the blade is lifted, the height is high, and the net height along the line is increased. Compared with ordinary flatbed transportation, it will increase the removal of height-limiting objects (such as cross-road cables, pipes, branches, etc.).
  • Need to increase weight. Since the blade’s center of gravity increases after the blade is lifted, blade lifters windmill blade trailer for sale is not conducive to stable transportation. It is necessary to place a weight on the front of the vehicle and avoid windy weather transportation.

How do Windmill Blade Trailers work?

Windmill blade trailers work by providing a specialized means of transporting large wind turbine blades from manufacturing facilities to wind farm sites. Here’s how they typically operate:
  1. Loading Process: The loading process begins at the manufacturing facility, where the massive wind turbine blades are carefully positioned onto the trailer. Specialized hydraulic or mechanical systems are often employed to facilitate this process, ensuring that the blades are securely fastened to the trailer for transit. Precision is crucial during loading to prevent any damage to the blades and ensure they are balanced correctly on the trailer.
  2. Transit: Once loaded, the windmill blade trailer sets off for its destination, typically a wind farm site. During transit, the trailer’s advanced braking and suspension systems come into play, providing enhanced control and stability, especially when navigating challenging terrain or adverse weather conditions. The multiple axles on the trailer evenly distribute the weight of the blades, minimizing stress on the vehicle and ensuring safe transportation.
  3. Unloading Process: Upon arrival at the wind farm site, the unloading process begins. Again, specialized hydraulic or mechanical systems may be used to carefully unload the blades from the trailer with precision. Safety measures, such as reinforced securing mechanisms and escort vehicles, may also be employed during unloading to prevent accidents and ensure the smooth transfer of the blades to their installation location.
  4. Repeat Process: Once unloaded, the windmill blade trailer may return to the manufacturing facility to transport more blades or move on to the next wind farm site, depending on the logistics of the project. This process continues as needed to transport all necessary components for the construction and maintenance of wind turbines. Throughout the entire process, safety, efficiency, and precision remain top priorities to ensure the successful delivery of wind turbine blades to their intended destinations.

How To Choose A Windmill Blade Trailer?

Choosing the right windmill blade trailer involves considering several factors to ensure safe and efficient transportation of oversized turbine components. Here are some key considerations:
  • Capacity and Compatibility: Determine the capacity and compatibility of the trailer with the wind turbine blades you intend to transport. Ensure that the trailer can accommodate the length, width, and weight of the blades without compromising safety or stability.
  • Quality and Durability: Invest in a high-quality trailer constructed from robust materials that can withstand the rigors of transporting heavy and bulky loads over long distances. Look for trailers with sturdy chassis, reinforced axles, and reliable braking and suspension systems to ensure durability and longevity.
  • Safety Features: Prioritize trailers equipped with advanced safety features to minimize the risk of accidents or damage during transportation. This includes reinforced securing mechanisms, escort vehicles for oversize loads, and integrated safety systems to enhance control and stability on the road.
  • Ease of Loading and Unloading: Choose a trailer with features that facilitate the loading and unloading process with ease and precision. Look for trailers equipped with specialized hydraulic or mechanical systems for efficient handling of the blades, as well as user-friendly controls for optimal maneuverability.
  • Maneuverability and Control: Consider the trailer’s maneuverability and control capabilities, especially when navigating challenging terrain or tight spaces. Opt for trailers with responsive steering systems and adaptive technologies that enhance control and stability, ensuring safe transportation under various conditions.
  • Compliance and Regulations: Ensure that the chosen trailer complies with relevant transportation regulations and standards governing the movement of oversized loads. This includes obtaining necessary permits, adhering to weight and dimension restrictions, and following safety protocols to avoid legal issues and delays during transit.
  • Cost and Value: Evaluate the overall cost of the trailer in relation to its features, capabilities, and long-term value. While upfront costs are important, prioritize investing in a trailer that offers the best combination of quality, safety, and efficiency to maximize return on investment over time.

By considering these factors and conducting thorough research, you can choose a windmill blade trailer that meets your specific transportation needs while ensuring safety, efficiency, and reliability throughout the journey.

Application Scenarios Of Windmill Blade Trailer

The application scenarios of windmill blade trailers primarily revolve around the transportation of large wind turbine blades from manufacturing facilities to wind farm sites. Here are some specific scenarios where these trailers are commonly used:

Windmill blade trailers are essential for transporting turbine blades to newly constructed wind farm sites. During the construction phase, multiple trailers may be employed to transport batches of blades, ensuring timely delivery for installation.

In cases where wind turbine blades need to be replaced due to damage or wear, windmill blade trailers are used to transport the new blades to the wind farm site. Similarly, trailers may transport blades to and from maintenance facilities for repair or servicing.

As wind farms expand to accommodate additional turbines, windmill blade trailers play a crucial role in transporting the necessary components, including blades, towers, and nacelles, to the site. This ensures seamless integration of new turbines into the existing infrastructure.

Windmill blade trailers are designed to navigate various transportation challenges, including long distances, diverse terrains, and narrow roads. They are equipped with features such as reinforced axles, advanced braking systems, and adjustable suspension to overcome obstacles and ensure safe delivery of oversized loads.

Windmill blade trailers contribute to the optimization of logistics in the renewable energy industry by streamlining the transportation process. Through careful planning and coordination, trailers can efficiently transport blades from multiple manufacturing facilities to different wind farm sites, maximizing productivity and minimizing costs.

In cases where wind farm projects span across international borders, windmill blade trailers facilitate the cross-border transportation of turbine components. They comply with international regulations and standards for oversized load transportation, ensuring smooth transit across diverse jurisdictions.

In rare instances of emergency situations, such as natural disasters causing significant damage to wind turbines, windmill blade trailers may be deployed to transport replacement blades urgently. This ensures the swift restoration of renewable energy generation capacity to affected areas.
