Fifth wheel

Product description of Fifth wheel

A Fifth Wheel is a pulling parts used for pulling a semi-trailer by a cargo towing vehicle. It is mainly composed of a seat cover, mainly a saddle base and a locking mechanism. The two end portions of the seat cover have a large arc shape, and a butterfly-shaped concave surface in the middle portion divides the plane into five similarly-sized portions. They are generally pressed by a hydraulic press.

Fifth wheel

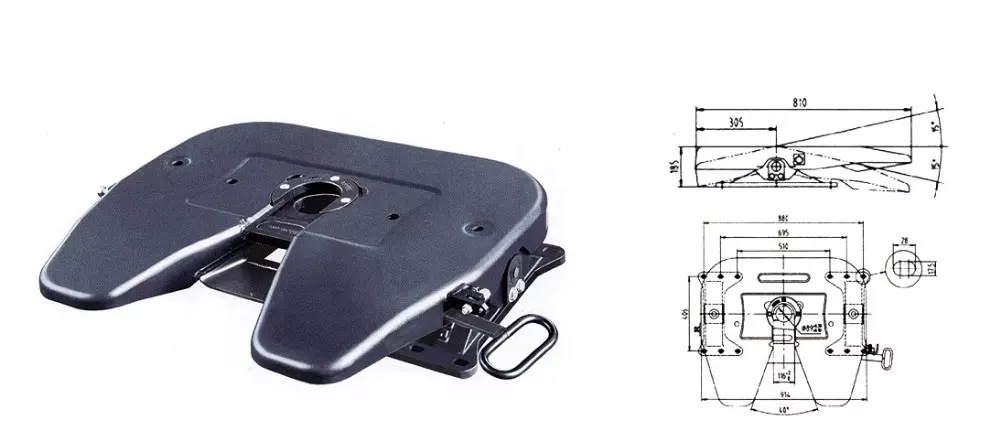

Product Parameters of Fifth wheel

Fifth Wheel 3.5” Longituginal Swing

Fifth wheel
Model NumberHImposed LoadPicthing AngleCompllete Truck Weight
LH-QD90A-200200mm≤25000kg15°≤100000kg
LH-QD90B-185185mm≤25000kg15°≤70000kg
LH-QD90D-200200mm≤25000kg15°≤100000kg
Model NumberHImposed LoadPicthing AngleCompllete Truck Weight
LH-QD50A-152150mm≤20000kg13°≤65000kg
LH-QD50B-173173mm≤20000kg15°≤65000kg
LH-QD50D-185185mm≤20000kg15°≤65000kg

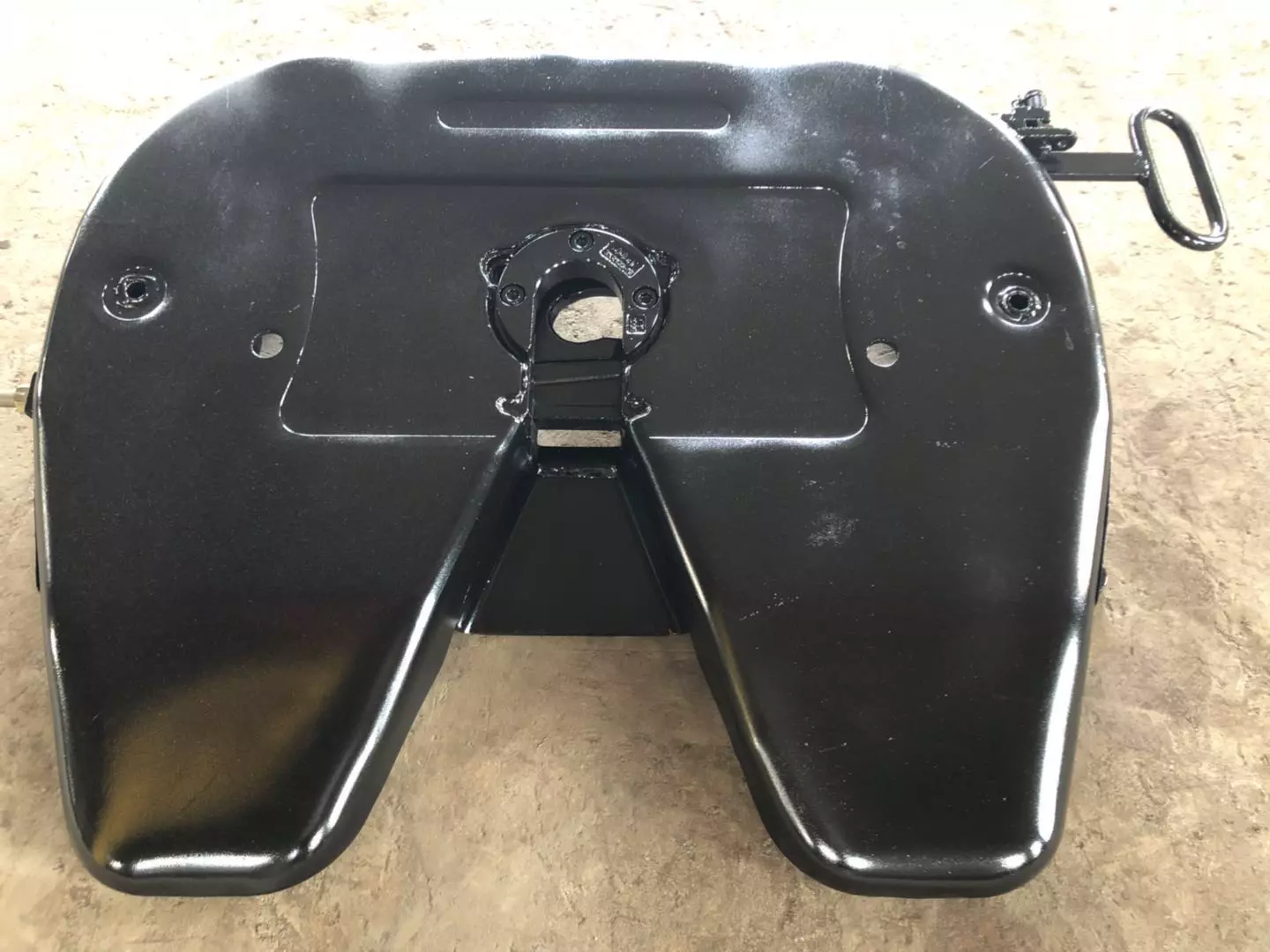

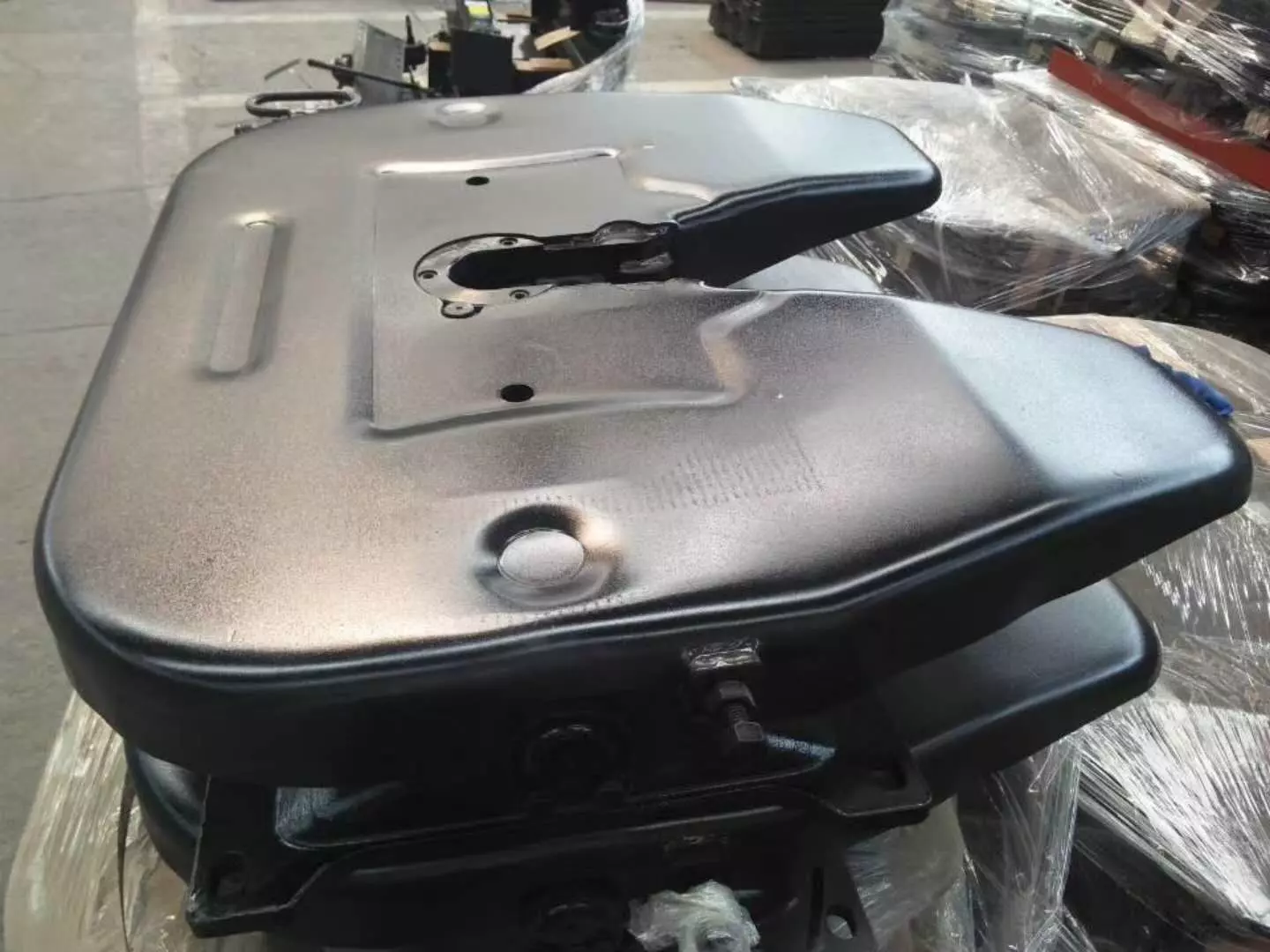

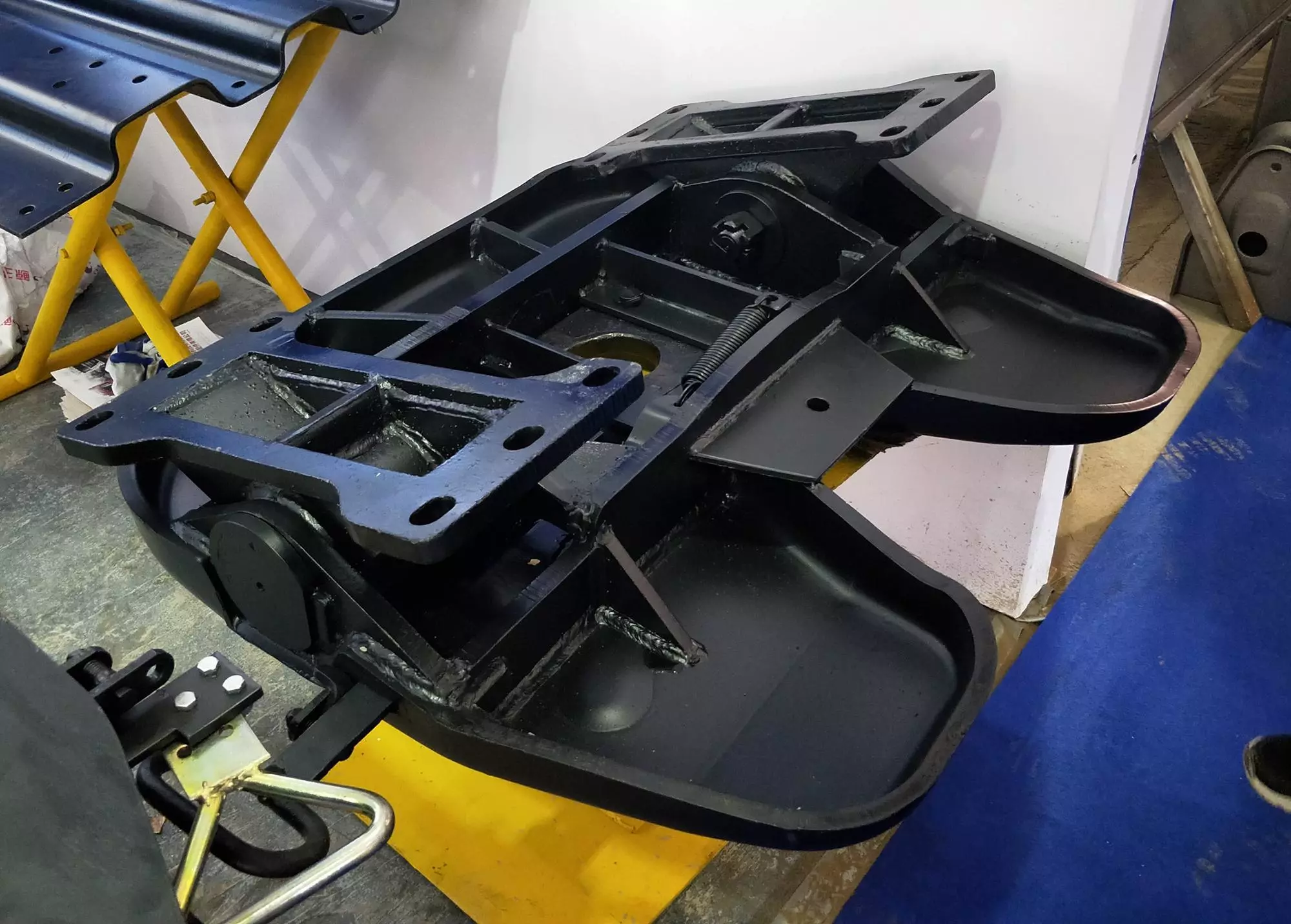

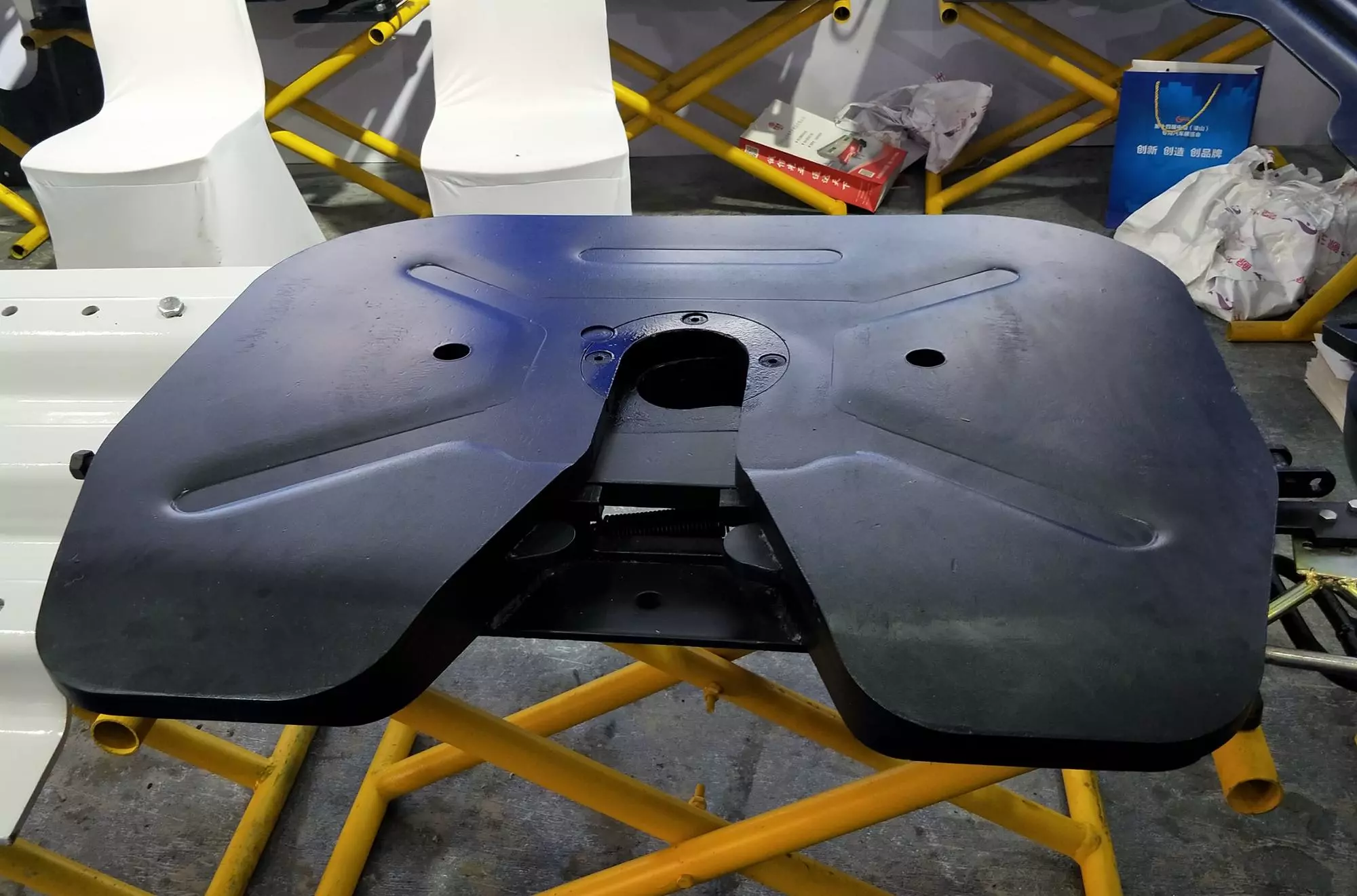

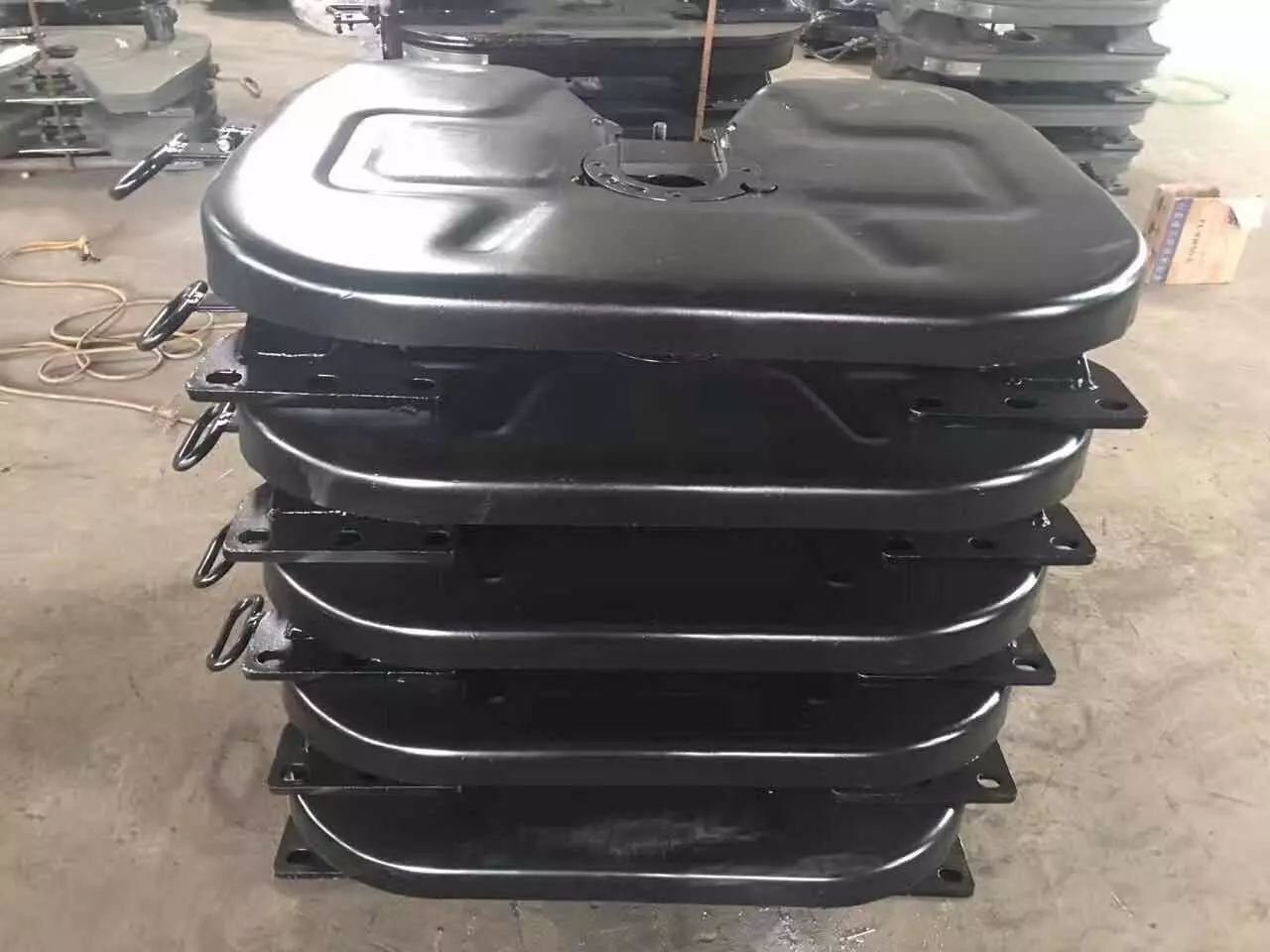

Product Detail of Fifth wheel

Fifth wheel
Fifth wheel
Fifth wheel
Fifth wheel
Fifth wheel
