Side Wall Trailer-top

Side Wall Semi Trailer

The side wall semi trailer design on the basic of the flatbed semi trailer,the side wall can be detached when you need that,which can become the flatbed semi trailer to use .It can support you transport the 20ft and 40ft container and diverse bulk cargo, use one unit side wall semi trailer can achieve muti-function for your transportation.

Product Gallery Of Side Wall Semi Trailer

Product Parameter Of Side Wall Semi Trailer

Dimension 12.5m×2.5m×2.6m (Outside)
Side Wall Height 1m
Payload Max.60T
Twist lock 12 units for 2*20ft or 1*40ft container
Main beam Heavy duty and extra durability designed “H” beam; Opting for high tensile steel Q345B, Welded by automatic submerged-arc processes.
Frame Beam Top Flange 14mm; Middle 8mm; Bottom Flange 16mm; width 140mm, height 500mm
Frame Floor The Thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10#Channel
Along beam 6#Channelx6
Axle 3pcs 14tons heavy axles for Africa rough road condition
Landing Gear JOST brand 28T lifting capacity
King Pin 2.00 or 3.5 inch bolt-in
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10Layer
Pneumatic Braking System Dual line pneumatic brake system, T30/30+T30 air chamber , 40L air tanks, Emergency relay valve
Tire 12R22.5*12pcs, TRIANGLE brand
Accessories One standard tool box and spare tire carrier
Electrical system 24 volt electrical system.7 pin electrical connector. Parking ,stop,reverse,number plate and indicator lights, rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Color White

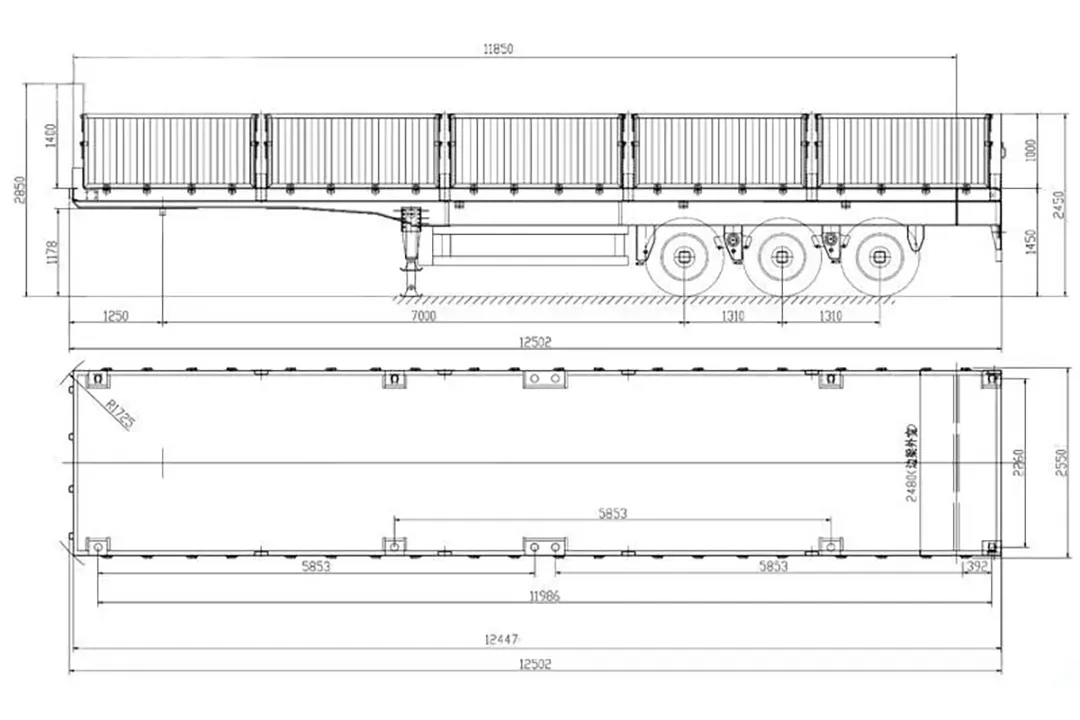

Decomposition Chart Of Side Wall Semi Trailer

side-wall-semi-trailer

What Is The Side Wall Semi Trailer?

  • A side wall semi-trailer is a type of trailer used for transporting goods that have unique loading and unloading requirements. It features side walls that can be raised and lowered, providing easy access to the cargo from the sides. This design makes it convenient for loading and unloading bulky and oversized items that may not fit through the rear doors of a traditional trailer. Side wall semi-trailers are commonly used in industries such as construction, agriculture, and logistics where efficient and flexible transportation solutions are required.
  • The versatility of the side wall semi-trailer makes it a practical choice for businesses looking to transport a wide range of goods. With the ability to adjust the side walls to accommodate different types of cargo, it offers convenience and efficiency in loading and unloading processes. The side wall semi-trailer is designed to meet the specific needs of industries that require quick and easy access to their cargo, making it a valuable asset for businesses looking to streamline their transportation operations.

Product Advantage Of Side Wall Semi Trailer

The ability to raise and lower the side walls allows for easy access to the cargo from the sides, making it suitable for transporting a variety of goods with different loading requirements.

The design of the side wall semi-trailer makes loading and unloading bulky and oversized items quicker and more convenient compared to traditional trailers.

The adjustable side walls enable the trailer to accommodate different types of cargo, offering flexibility in transporting various goods.

The efficiency and convenience of a side wall semi-trailer can help businesses save time and money on transportation operations.

The design of the side wall semi-trailer makes it well-suited for industries such as construction, agriculture, and logistics, where specialized transportation needs are common.

side-wall-semi-trailer
Side Wall Semi Trailer

How do Side Wall Semi Trailer work?

  1. Loading process: The side wall semi-trailer operates by raising the side walls to create a wide opening for loading goods onto the trailer. This feature is especially useful for accommodating large, bulky, or irregularly shaped items that may not fit through the rear entrance of a standard trailer.
  2. Cargo containment: After the cargo is loaded onto the trailer, the side walls are lowered to secure and contain the goods during transportation. This ensures that the cargo remains in place and is not damaged or shifted during transit.
  3. Unloading procedure: When it is time to unload the cargo, the side walls can be raised again to provide easy access from the sides for efficient removal of the goods. This simplifies the unloading process and speeds up the overall operation.
  4. Versatile access: The adjustable side walls of the side wall semi-trailer allow for easy access to the cargo from the sides, making it suitable for transporting various types of goods with different loading requirements. This adaptability makes the side wall semi-trailer a practical choice for industries with diverse transportation needs.
  5. Flexibility in cargo handling: Due to the adjustable nature of the side walls, the side wall semi-trailer can accommodate a wide range of cargo types, offering flexibility in transporting different goods. This makes it a versatile option for businesses with varied transportation requirements.
  6. Increased efficiency: The design of the side wall semi-trailer facilitates a more streamlined loading and unloading process, leading to faster and more convenient operations compared to traditional trailers. This increased efficiency translates into time and cost savings for businesses in the transportation industry.

How To Choose A Side Wall Semi Trailer?

When choosing a side wall semi-trailer, it is important to consider several factors to ensure that it meets your transportation needs effectively. Here are some steps to guide you in selecting the right side wall semi-trailer:

  1. Consider the type of goods you will be transporting: Different side wall semi-trailers are designed to accommodate specific types of cargo. Ensure that the trailer you choose can handle the size, weight, and dimensions of the goods you will be transporting.
  2. Evaluate the adjustable side wall mechanism: Check the functionality and durability of the side wall adjustment system. Make sure it is easy to operate and can securely hold the cargo in place during transit.
  3. Assess the loading and unloading process: Consider how easy it is to load and unload cargo from the side wall semi-trailer. Look for features that facilitate quick and efficient loading and unloading operations.
  4. Review the security and stability of the trailer: Verify that the side wall semi-trailer has secure latching mechanisms to prevent cargo from shifting during transit. Additionally, ensure that the trailer is stable and can withstand the demands of the road.
  5. Examine the overall build quality: Inspect the construction of the side wall semi-trailer to ensure it is robust and durable. Choose a trailer made from high-quality materials that can withstand frequent use and harsh environmental conditions.
  6. Consider your budget and transportation requirements: Determine your budget constraints and transportation needs to find a side wall semi-trailer that offers the best value for your investment. Compare different options and choose one that aligns with your budget and operational requirements.

By following these steps and considering these factors, you can select a side wall semi-trailer that meets your specific transportation needs and provides efficient and reliable cargo transport capabilities.

Application Scenarios Of Side Wall Semi Trailer

Side wall semi trailers, also known as stake semi trailers, are designed with side walls that can be removed or folded down to make loading and unloading cargo easier. These trailers are commonly used in a variety of applications, including:

  1. Construction Industry: Side wall semi trailers are often used to transport construction materials such as lumber, steel beams, and pipes. The side walls provide added security for the cargo and help prevent it from shifting during transit.
  2. Agriculture: Farmers use side wall semi trailers to transport crops, livestock, and equipment. The side walls help contain the cargo and protect it from the elements.
  3. Retail and Distribution: Side wall semi trailers are used to transport goods to and from distribution centers, warehouses, and retail stores. The side walls provide added protection for the cargo and help secure it during transport.
  4. Recycling and Waste Management: Side wall semi trailers are commonly used to transport recyclable materials, such as cardboard, plastic, and metal. The side walls help contain the materials and prevent them from spilling during transit.
  5. Event and Exhibition Logistics: Side wall semi trailers are often used to transport equipment, props, and materials for events, exhibitions, and trade shows. The side walls provide added security for the cargo and help protect it from damage.

Overall, side wall semi trailers are versatile and can be used in a wide range of applications to safely transport a variety of goods and materials. Their flexibility and security features make them a popular choice for many industries.

Product Shipping Of Side Wall Semi Trailer

Upon purchasing a Side Wall Semi Trailer, the packaging and transportation process involves carefully securing the trailer for delivery to the customer. The trailer is typically packaged with protective materials to ensure it arrives in pristine condition. Once the trailer is loaded onto a transportation vehicle, it is delivered to the customer’s designated location in a timely manner. The transportation process is coordinated to ensure the safe and efficient delivery of the trailer to the customer, ready for immediate use.
