Detachable Gooseneck Trailer

DETACHABLE GOOSENECK TRAILER

The hydraulic detachable gooseneck trailer uses a concave beam type. Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.

Product Gallery Of Detachable Gooseneck Trailer

Removable Gooseneck Truck Characteristics

Mechanically detachable gooseneck operation: In the process of removing the gooseneck, the front gooseneck of the detachable gooseneck trailers for sale must be separated from the saddle of the truck. After the disassembly is completed, the equipment can be loaded.

Removable gooseneck trailer for sale features: Because front loading low bed trailer has a low center of gravity and a long cargo table, it can transport a lot of goods. The maintenance cost is also very low, the structure is easy to assemble, and the weight is light. Thus, the rgn trailer for sale near me is the preferred type that many transportation companies sell.

Product Parameters Of Detachable Gooseneck Trailer

Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T):  40-100T
Axle:  13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension:  Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam:  Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform:  5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

Points to Consider When Buying a Detachable Gooseneck Trailer

There are a variety of different transport semi trailers in the Chinese transport market, as many of them are locally transported and so common low bed trailers are more. Every city in China is under construction and is basically equipped with construction machinery and equipment, so long-distance transportation of large machines such as heavy excavators is not required.

  1. What is the difference in steel used in the Detachable Gooseneck Trailer?

Currently, the main steel type used for Detachable Gooseneck Trailers is HG60. HG60 is high-strength structural steel with high toughness, good fatigue resistance, welding performance and corrosion resistance.

HG60 high strength steel: C≤0.18 Si0.15 ~ 0.40 Mn1.00 ~ 1.70 P≤0.030 S≤0.025 Mo-Cr-Nb0.02 ~ 0.06 V0.03 ~ 0.08 Ni- HG60

Tensile test: Ret≥450MPa Rm570 ~ 720MPa A50≥19 used detach lowboy trailers for sale

Common lowbed trailers use Q345 manganese steel. Q345 steel cannot be used to transport heavy equipment.

  1. Frame of Detachable Gooseneck Trailer

The effective load surface length of the frame is generally 5500mm to 9000mm, the width is 3000mm to 36000mm, and the widest can be 4 meters wide.

  1. What is the load of the detach trailer for sale?

TITAN can be customized heavy duty lowboy trailer according to actual load requirements. Common design load tonnages are 60 tons, 80 tons, 100 tons, 120 tons, 150 tons, fixed rgn equipment trailer max weight reaches 200 tons.

  1. How high off the ground is a lowboy trailer?

The height of the 60 ton lowboy trailer for sale plate can be customized. The common design of the height of the working surface is 850mm, and 800mm and 900mm. The height of the working surface can be controlled by the hydraulic system during actual transportation.

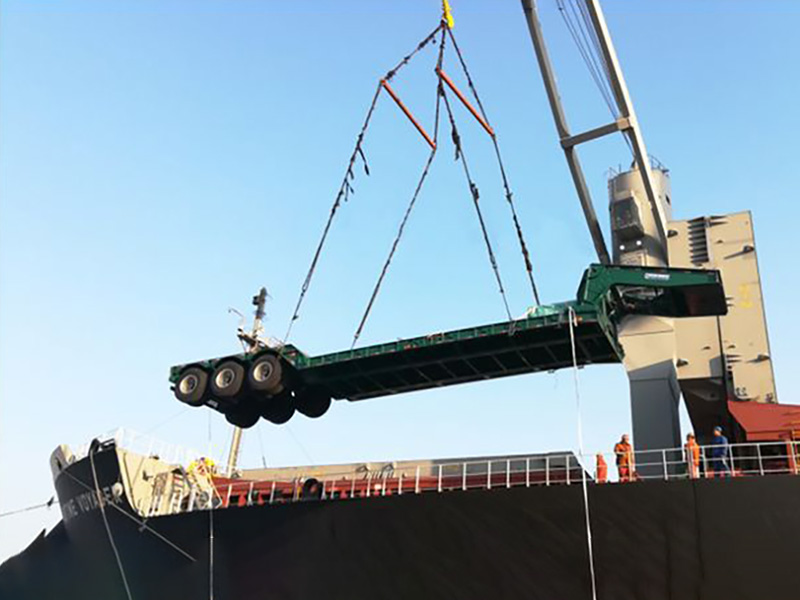

Package Delivery Of Detachable Gooseneck Trailer

The Package Delivery of the Detachable Gooseneck Trailer offers a streamlined and efficient solution for transporting this high-capacity trailer to its destination. Upon purchase, the trailer is meticulously prepared and secured, ensuring its safety and integrity during transit. Special attention is given to the detachable gooseneck mechanism, guaranteeing that all components arrive in perfect working order. This delivery service prides itself on timely and reliable delivery, making the process of acquiring the trailer hassle-free for customers. Whether it is being delivered locally or across greater distances, the package delivery process is designed to meet the highest standards of convenience and customer satisfaction, ensuring that the trailer is ready for immediate use upon arrival.

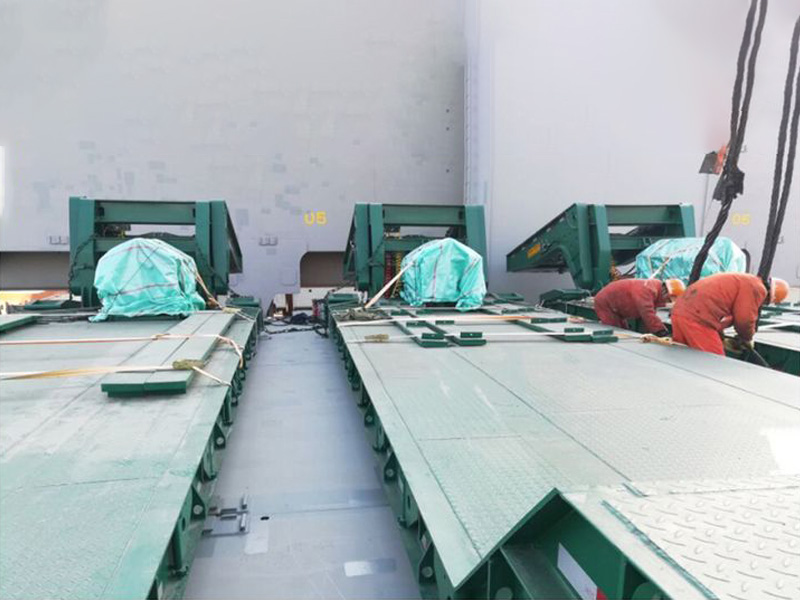

Package Delivery Of Detachable Gooseneck Trailer

40T Gooseneck Lowboy Trailer

The 40T Gooseneck Lowboy Trailer is a heavy-duty transport solution designed for hauling large and bulky loads with ease. Its key features include a sturdy gooseneck design that enhances stability and maneuverability, allowing for smooth navigation even on challenging terrains. With a maximum weight capacity of 40 tons, this trailer is ideal for transporting heavy machinery, construction equipment, and oversized cargo. Its lowboy design ensures easy loading and unloading, making it a preferred choice for industrial and construction applications.

40T Gooseneck Lowboy Trailer

50T Removable Gooseneck Trailer

The 50T Removable Gooseneck Trailer is a versatile and durable transport solution designed for heavy-duty hauling tasks. Its standout feature is the removable gooseneck design, offering flexibility and ease of loading and unloading. With a maximum weight capacity of 50 tons, this trailer is ideal for transporting large machinery, construction equipment, and oversized cargo. Its sturdy construction ensures stability and maneuverability, enabling smooth navigation on diverse terrains.

50T Removable Gooseneck Trailer

60T Detachable Gooseneck Trailer

The 60T Detachable Gooseneck Trailer is a robust and adaptable transport solution engineered for heavy-duty hauling requirements. Its defining feature is the detachable gooseneck design, offering exceptional flexibility and convenience during loading and unloading operations. With a remarkable maximum weight capacity of 60 tons, this trailer is perfectly suited for transporting large-scale machinery, construction equipment, and oversized cargo. Its rugged construction ensures stability and maneuverability, enabling seamless navigation across various terrains.

60T Detachable Gooseneck Trailer

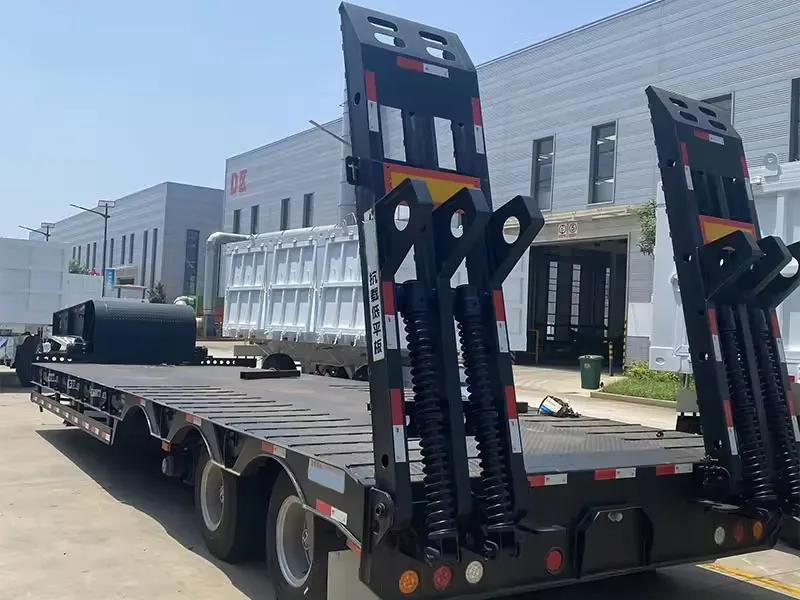

70T Removable Gooseneck Trailer For Sale

The 70T Removable Gooseneck Trailer for Sale is a powerful and versatile transport solution tailored for heavy-duty hauling applications. Featuring a removable gooseneck design, this trailer offers unparalleled flexibility and convenience during loading and unloading operations. With an impressive maximum weight capacity of 70 tons, it is the ideal choice for transporting large machinery, construction equipment, and oversized cargo. The robust construction ensures stability and maneuverability, allowing for smooth navigation across diverse terrains.

70T Removable Gooseneck Trailer For Sale

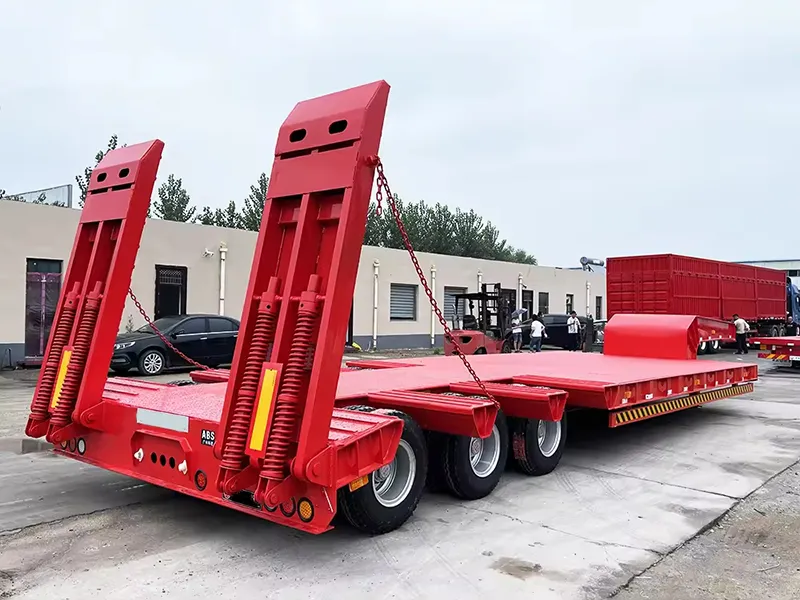

80T Removable Gooseneck Lowboy Trailer

The 80T Removable Gooseneck Lowboy Trailer is an advanced and high-capacity transport solution designed for heavy-duty hauling demands. Noteworthy for its removable gooseneck feature, this trailer offers unmatched flexibility and convenience during loading and unloading operations. Boasting an impressive maximum weight capacity of 80 tons, it excels in transporting large-scale machinery, construction equipment, and oversized cargo with utmost efficiency. Its robust construction ensures stability and maneuverability, facilitating smooth navigation across a variety of terrains.

80T Removable Gooseneck Lowboy Trailer

100T Detach Gooseneck Trailer

The 100T Detach Gooseneck Trailer is a cutting-edge transport solution designed for heavy-duty hauling applications. Featuring a detachable gooseneck design, this trailer provides exceptional flexibility and convenience during loading and unloading operations. With an impressive maximum weight capacity of 100 tons, it is the ultimate choice for transporting oversized machinery, construction equipment, and heavy cargo with unparalleled efficiency. The trailer’s sturdy construction ensures stability and maneuverability, enabling seamless navigation across various terrains.
