Hydraulic Modular Trailer-top

Hydraulic Modular Trailer

A modular trailer accounts for various special trailers or semi-trailers that are normally used in the transportation of bulky and heavy cargoes that cannot easily be disassembled for ease of transportation. Modular trailers are commonly used in the chemical industry, power stations, construction industry and in the iron and steel industry. Due to their excellent lateral stability, they can be used for mining operations. They are also used to transport products that are over-length. The tractor trucks are used to provide traction for the modular trailers.

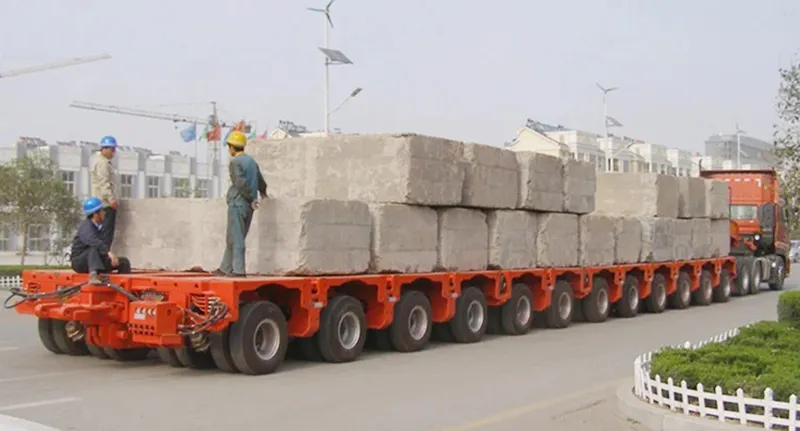

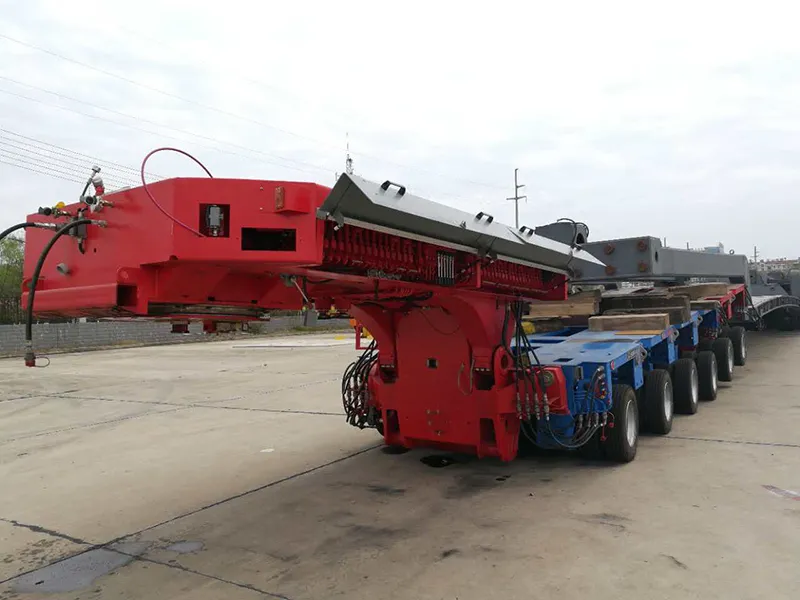

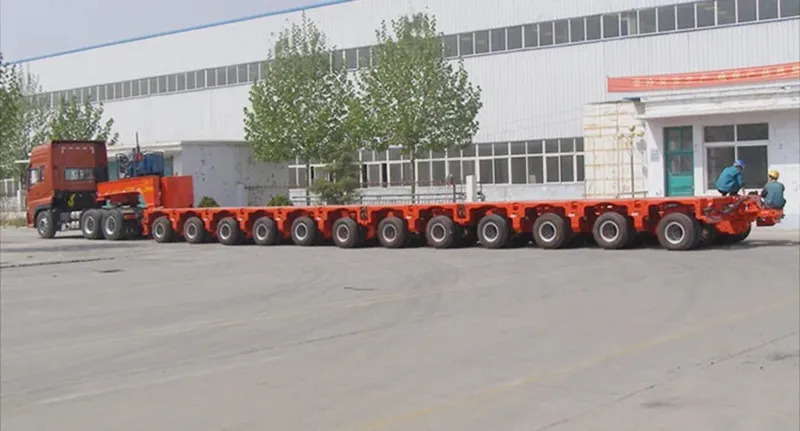

Product Gallery Of Hydraulic Modular Trailer

Product Parameter Of Hydraulic Modular Trailer

Specification
Modular Trailer (All dimension data can be customized)
Driving speed (km/h) 5 3 1 0.5
Max.total weight (t) 204 212 216 230
Dead weight (t) 24 24 24 204
Rated payload (t) 180 185 192 202
Total weight of per axle line (t) 34 35 36 40
Overall dimensions of platform, L (mm)xW (mm) 9000×3000
Min.height of platform (mm) Approx.980
Driving.height of platform when unloaded (mm) Approx.1580
The lifting compensation of the platform (mm) 600 (± 300)
Qty.of wheel bogies (total) 12
Qty.of wheel bogies (wheel bogie with drive) 4
Qty.of wheel bogies (wheel bogie with brake) 6
Qty.of wheel bogies (wheel bogie without brake) 2
Traction force (kN) 240
Brake force (kN) 240
Type of tire 215/75R17.5 (Solid tire)
Steering angle (°) ±106°
Permissible bending moment (kN/m) Approx.-6200~+7700

What Is The Hydraulic Modular Trailer?

  • The Hydraulic Modular Trailer (HMT) is a revolutionary transport solution designed for the efficient and safe movement of heavy and oversized loads. Comprised of modular units, the HMT offers unparalleled flexibility, allowing it to adapt to a wide range of cargo sizes and weights. Its innovative hydraulic system enables seamless adjustments in trailer height and configuration, empowering it to navigate diverse terrains and challenging obstacles with ease.
  • Utilized extensively in industries such as construction, mining, and heavy equipment transportation, the Hydraulic Modular Trailer streamlines logistics operations by providing a versatile and reliable means of transporting cumbersome loads. Its modular design facilitates quick assembly and disassembly, enabling swift customization to meet specific project requirements. Equipped with robust hydraulic mechanisms, the HMT ensures stability and control, even when handling the most demanding loads across rugged landscapes.
  • In essence, the Hydraulic Modular Trailer represents a pinnacle of engineering ingenuity, offering unparalleled efficiency, adaptability, and reliability in the transportation of heavy and oversized cargo. Its versatility and advanced capabilities make it an indispensable asset for industries reliant on the seamless movement of large-scale equipment and machinery.

The Specs and Dimensions of Modular Trailers

The modular trailers come in different modular units that include 2, 3, 4, 5, 6, and 8 axle models. The maximum load per axle is up to 40 tons. A larger number of axle lines means that the modular trailer has a higher loading capacity.

4-axles-modular-trailer
4 Axles Modular Trailer
6-axles-modular-trailer
6 Axles Modular Trailer
5-axles-modular-trailer
5 Axles Modular Trailer
8 Axles Modular Trailer

Product Features and structures of Hydraulic Modular Trailer

  • Extremely robust and durable construction, extremely high load capacity.
  • Platform height is adjustable
  • All wheels can be steerable
  • Small turning radius, 48° steering angle with hydraulic gooseneck
  • Longitudinal and lateral combination of each module are available
  • All wheels steerable automatically or manually.
  • Hydraulic axle suspension system adopt uneven road condition.
  • Lifting cylinder make multi axle low bed trailer automatically responds tough road conditions.
  • Dual-circuit hydraulic system guarantee safe work condition

Product Advantage Of Hydraulic Modular Trailer

Hydraulic Modular Trailer

1. Meeting Different demands

  • Due to the modularization nature of the multi axle trailer, various cargo demands can be met.
  • These multi axle trailers are completely modular and that means they can be connected to each other either end to end or side by side to provide various configurations for use as the cargo would require. The end to end or side by side connection is made possible through a mechanical coupling or in some cases, loose coupling.
  • There is a single set of controls for each modular transporter that can be synchronized for coordinated steering function and other operations as well. These capabilities make it possible for the loading and transportation of a complex and oversized project cargo.

2. High Load Carrying Capacity

  • This is arguably the most defining characteristic of a modular trailer that makes it an appropriate vehicle for the project cargo. Its usefulness begins here – its ability to take up the load.
  • The main load-bearing frame and the suspension are constructed of 690 MPa yield stress steel material. Ideally, this is the main structure for bearing, taking into consideration the most dangerous cargo condition.The entire frame has a strong strength and great capabilities able to efficiently withstand bending moments in case of concentrated loads.

3. Efficient Transportation

  • The modular trailer offers effective transportation means a for a project cargo with reliable speeds.
  • The design and building of a multi axle  trailer are such that all the axles can swivel through 270°. In some cases, you can even find some that can go up to 360° full motion. Looking that the bulky size of the project cargo, features of maneuverability as present in the modular trailer are very useful.
  • Each of these axles is usually controlled via a system of controls to facilitate the turning of a modular trailer. A number of motions can be executed on the multi axle trailer including allowing it to spin on one location or else move sideways as needed in a specific condition.
  • Efficiency in transportation is also enhanced through stable operations. Each of the modular trailer units can be categorized into 3 and 4 hydraulic regions. All the fields can maintain hydraulic pressure to the axles in it. This enables the trailer to make desired adjustments for uneven terrain ensuring the stability of your cargo during transportation. The low loading height of the transporter coupled with a wide wheel track ensures a greatly enhanced stability too.

4. Safety

  • Due to its huge size and weight, the project cargo needs careful attention to its safety during loading, transportation and offloading.
  • This is what the modular trailer has been designed for. It is very good in keeping the cargo in a horizontal balanced position offering 3 and 4 points of support that take uniform loading forces.
  • The modular unit uses a hydraulic wheel bogie that comprises a bogie frame, hydraulic cylinder, rocker arm, the tyre and axle that are designed for robust load capacity needs.

How do Hydraulic Modular Trailer work?

  • Hydraulic Modular Trailers (HMTs) operate based on a sophisticated hydraulic system that enables them to adjust their height, configuration, and maneuverability to suit various loads and terrains. The fundamental principle involves the use of hydraulic pressure to control the movement and positioning of different components of the trailer.
  • At the core of the HMT’s functionality is its modular design, consisting of interconnected units that can be assembled or disassembled as needed. These modular units typically include axles, beams, and hydraulic cylinders.
  • When a load needs to be transported, the hydraulic system is activated to raise or lower the trailer’s platform to the appropriate height for loading and unloading. This adjustment ensures that the cargo is positioned securely and maintains stability during transport.
  • Moreover, the hydraulic system enables the trailer to adapt its axle configuration based on the weight distribution of the load. By adjusting the placement and number of axles, the trailer can evenly distribute the weight, reducing the risk of overloading and ensuring safe operation.
  • During transit, the hydraulic system allows for precise steering control, enabling the trailer to navigate tight corners and obstacles with ease. By selectively adjusting the hydraulic pressure applied to each wheel or axle, the trailer can execute turns smoothly while maintaining stability.
  • Overall, the Hydraulic Modular Trailer’s working principle revolves around the seamless coordination of its hydraulic components to provide versatility, adaptability, and safety in the transportation of heavy and oversized loads.

How To Choose A Hydraulic Modular Trailer?

Choosing a hydraulic modular trailer involves considering several key factors:
  1. Load Capacity: Determine the maximum weight and dimensions of the loads you’ll be transporting. Ensure the trailer’s capacity matches or exceeds your requirements.
  2. Configuration Options: Assess the flexibility of the trailer’s modular design. Look for options to adjust axle configurations, platform heights, and other features to accommodate various loads and terrains.
  3. Hydraulic System: Evaluate the reliability and performance of the hydraulic system. Opt for trailers with robust hydraulic components that offer smooth operation and precise control.
  4. Maneuverability: Consider the trailer’s maneuverability, especially if you’ll be navigating tight spaces or challenging terrain. Look for features such as independent steering axles and hydraulic steering systems for enhanced maneuverability.
  5. Safety Features: Prioritize trailers equipped with safety features such as overload protection, automatic leveling systems, and anti-lock braking systems (ABS) to ensure safe operation.
  6. Durability and Maintenance: Choose trailers constructed from high-quality materials that can withstand heavy use and harsh environments. Additionally, consider maintenance requirements and availability of spare parts to minimize downtime.
  7. Cost and ROI: Balance the upfront cost of the trailer with its long-term benefits and return on investment (ROI). Consider factors such as efficiency gains, reduced labor costs, and increased payload capacity when evaluating the overall value proposition.

By carefully considering these factors, you can select a hydraulic modular trailer that meets your specific transportation needs while offering reliability, performance, and safety.

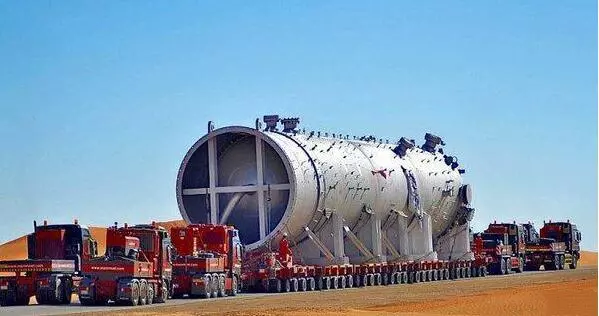

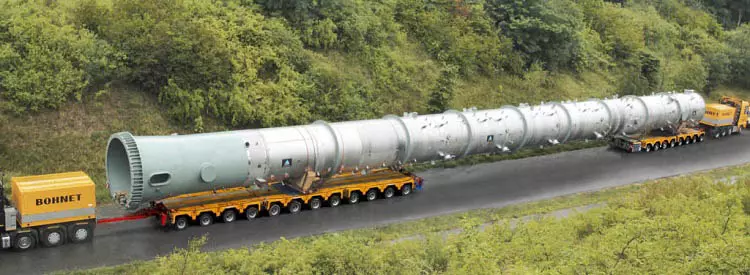

Application Scenarios Of Hydraulic Modular Trailer

  • Some companies specialize in transporting heavy cargo from one destination to another. Such companies serve clients who need to transport heavy loads a few times in a year.
  • The manufacturers also require transport solutions to transport the fully-assembled equipment to the clients or warehouse. The goldhofer multi axle trailer can be customized to transport any cargo as long as it is well packaged.
  • The construction of bridges, large buildings and roads also require the use of modular trailers. Big bridge segments and large girders are placed onto the modular trailers from the construction sites.
  • Construction companies usually have projects located in different areas. Modular hydraulic trailer help in the transportation of the already built sections to places where they will be installed and at the same time shift materials and equipment from one project to another.
  • Ships and ship sections are normally huge and bulky. You can imagine how the construction of the big ships you see transporting goods and people across seas is done.
  • Modular trailers become very useful in the movement of ship sections to assembly halls and the entire ship to the sea. Ships are normally very heavy weighing up to thousands of tones.
  • The biggest ships will need goldhofer spmt with over 200 axle lines. On some occasions, the placement of the axles is done side by side to help in carrying long and wide ship sections.
  • The chemical industry also requires special transportation goldhofer modular trailer to move heavy raw materials, equipment, and finished products.
  • Setting up the manufacturing sites requires the companies to transport heavy and long tubes, cylindrical tanks, and metallic beams among other parts. In most cases, the parts are purchases from other assembly companies and transported to the chemical production sites.
Hydraulic Modular Trailer

Hydraulic Axle Modular Trailer

Hydraulic Modular Trailer

Hydraulic Multi Axle Trailer

Hydraulic Modular Trailer

Modular Hydraulic Trailer

Hydraulic Modular Trailer

Multi Axle Modular Trailer

Hydraulic Modular Trailer

3 Axles Hydraulic Modular Trailer

Hydraulic Modular Trailer

4 Axles Hydraulic Modular Trailer

Hydraulic Modular Trailer

5 Axles Hydraulic Modular Trailer

Hydraulic Modular Trailer

6 Axles Hydraulic Modular Trailer

Hydraulic Modular Trailer

10 Axles Hydraulic Modular Trailer

Hydraulic Modular Trailer

12 Axle Hydraulic Modular Trailer

Hydraulic Modular Trailer

14 Axle Hydraulic Modular Trailer

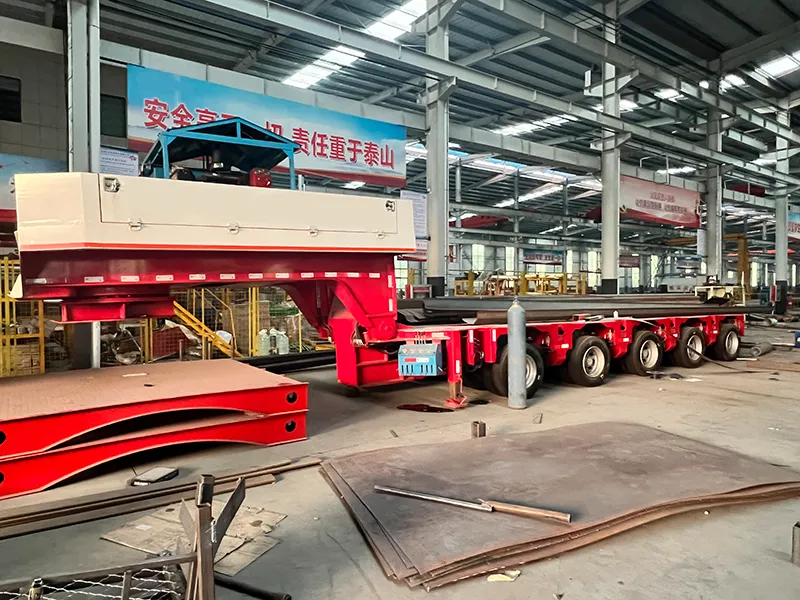

Hydraulic Modular Trailer-im (3)
