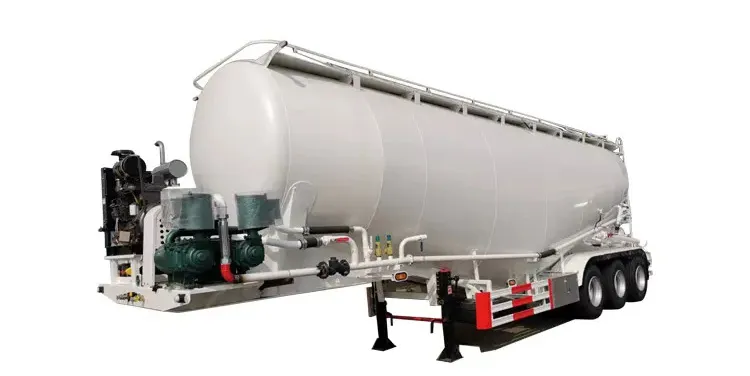

Bulk Cement Tank Trailer

The cement semi trailer It is mainly used to transport powdered materials such as cement, fly ash, calcium carbide powder, talcum powder, carbon black, and granular materials such as rice grains and plastic particles.

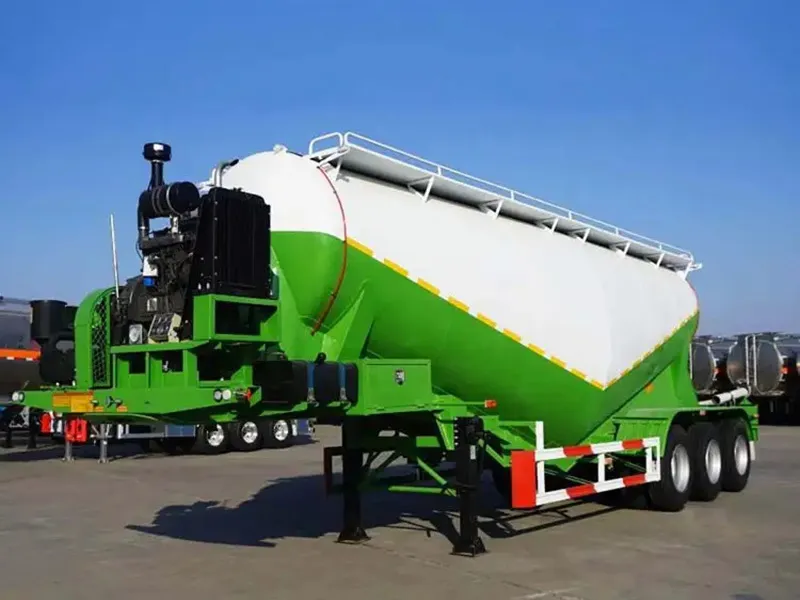

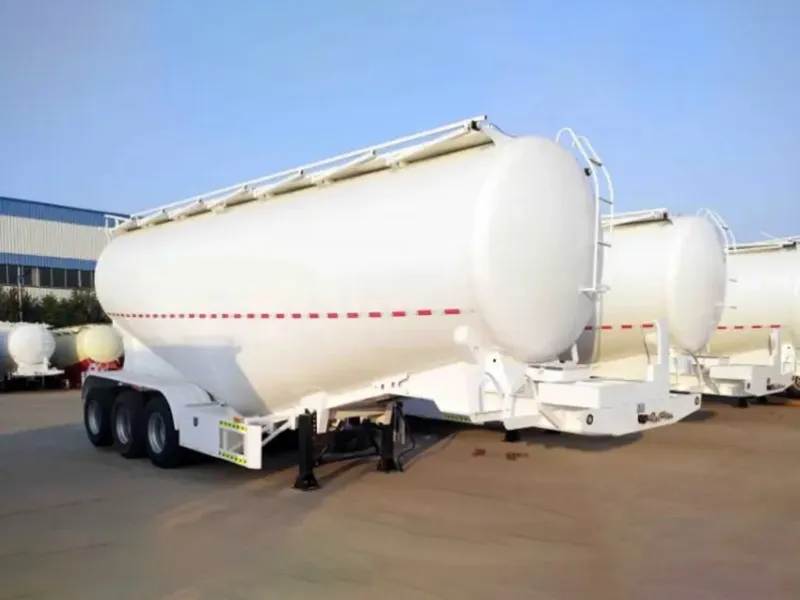

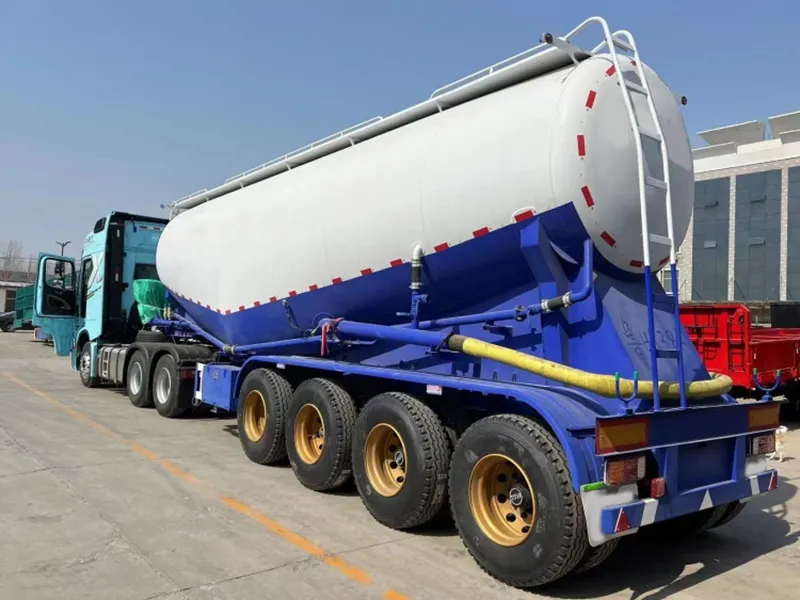

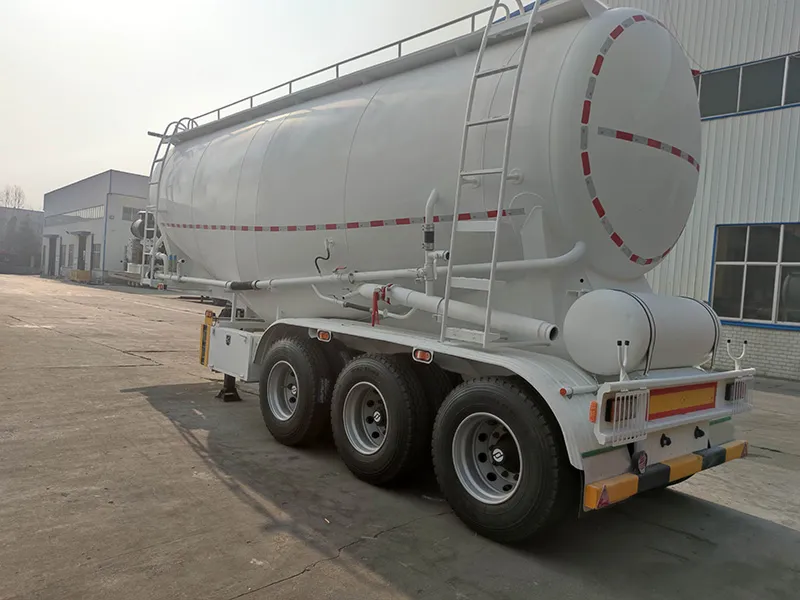

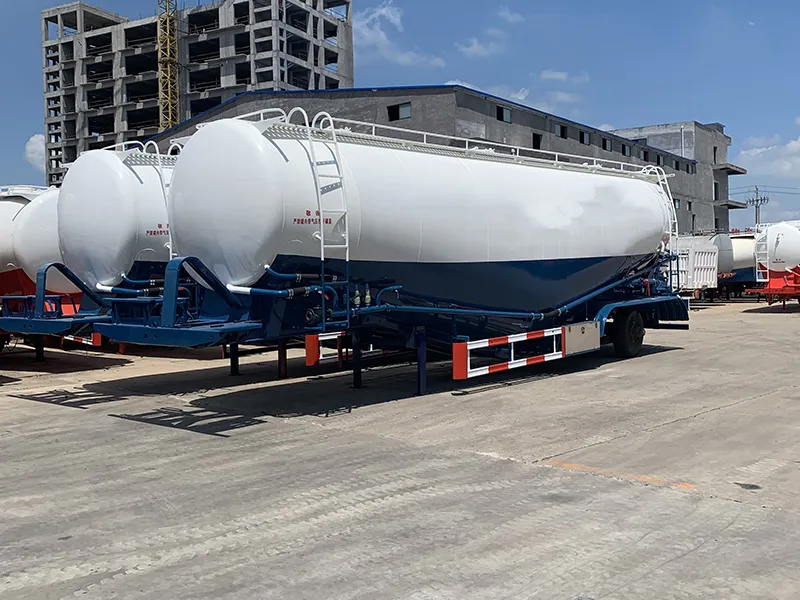

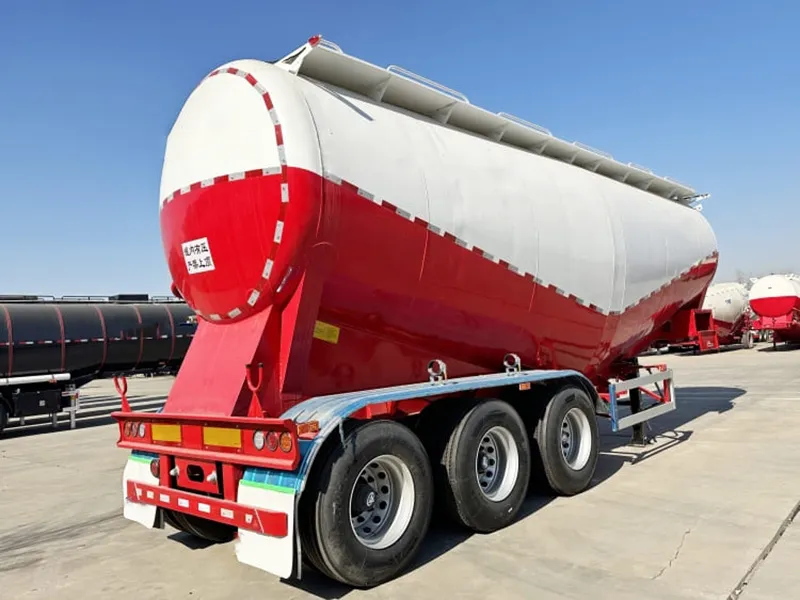

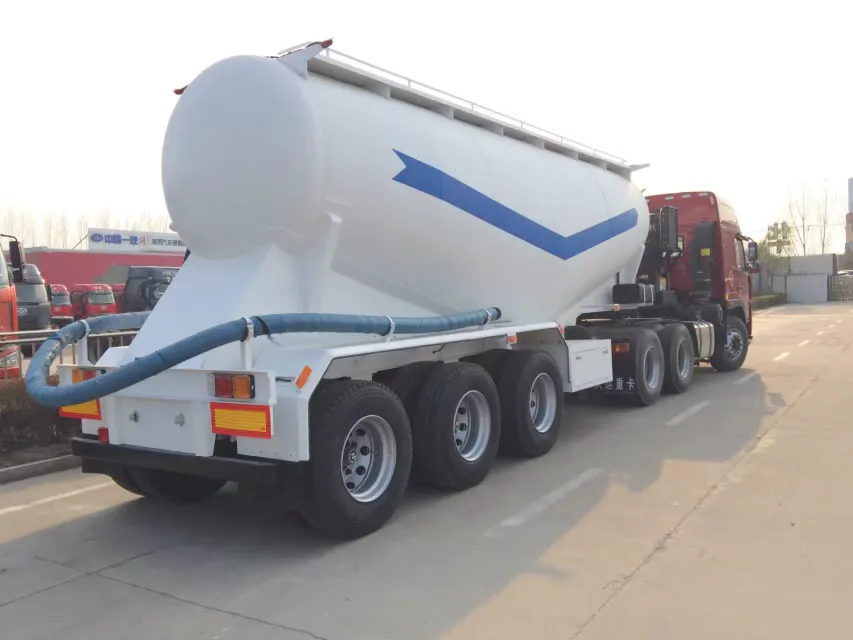

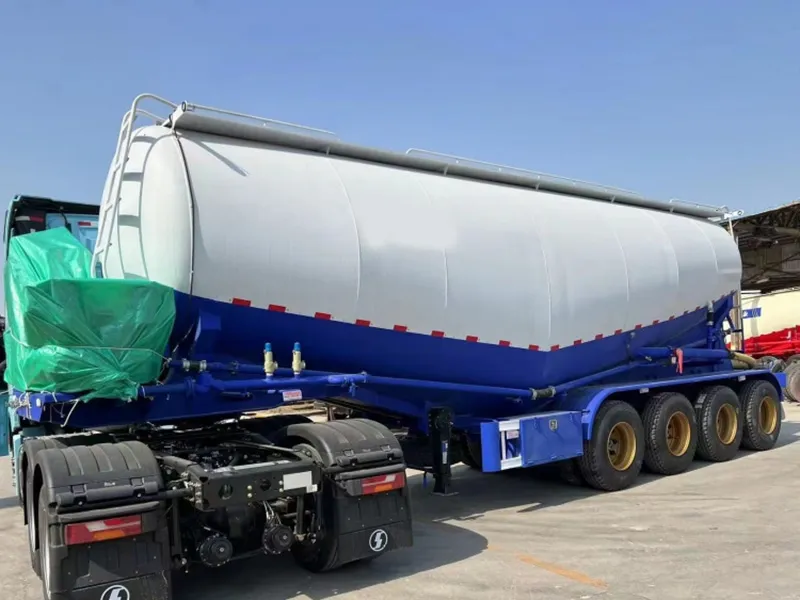

Product Gallery Of Bulk Cement Tank Trailer

Product Parameter Of Bulk Cement Tank Trailer

Product
Bulk Cement semi-trailer
Tare Weight
About 10350kg
Dimension (The exact size depends on final design)
Length:l2100 mm(outside dimension)
Width: 2500 mm(outside dimension)
Height: 3950mm(outside dimension)
Loading Capacity
35000L
Tank Assembly
Front/Rear end plate
Material
Carbon steel
Thickness
6mm
Tank Body
Material
Carbon steel
Thickness
5mm
Manhole Cover
Diameter
diameter 500mm
Material
Carbon steel
Number
4pcs
Discharging Valve
Diameter
3or 4 inch
Number
1PCS 6M RUBBER HOSE
Diesel engine
WEICHAI, Tianhe 4100/4102 or other brand
Discharging Pipe
Diameter
3 inch
Compressor
BOHAI 10m²/i2 m³or other brand
Cat Walk
with, Standard type
Running mechanism
Main beam
Materigl
Q235 carbon steel
Plate
upper plate is 14mm, middle plate is 8mm, Down plate is16mm
Height
500mm
Side beam
Material
Q235 carbon steel
Thickness
16mm or 18mm channelsteel
Axle
Brand
FUWA
Type
13T
Number
3 pcs
Rim
Type
9.0-22.5
Number
13pcs
Tyre
Brand
Triangle brand
Type
12R22.5
Number
13pcs
Suspension
American type mechanical suspension for 3 axle
Spring leaf
Leaf width
90mm
Leaf thickness
13mm
Layer/set
10 Layer
king pin
Brand
JOST brand
Type
Bolts type
Diameter
2.0 inch
Brake system
Air tank
45L qir tanks
Brake chamber
6 double Spring brake chamber
ABS
Without
Landing gear
Brand
JOST brand
Type
JOST C200T
Accessories
Spare tyre carrier
2 set
Light
LED light
Voltage
24V
Receptacle
7 ways(7 wire harness) and quick change type
Tool box
One piece,1m×0.5m×0.5m (equipped with l unit Tire spanner,I unit gudgeon sleeve and I unit cranking bar)
Painting
Complete chassis sand blasting to clean rust, 1 coat ofanti corrosive prime,2 coats of final paint

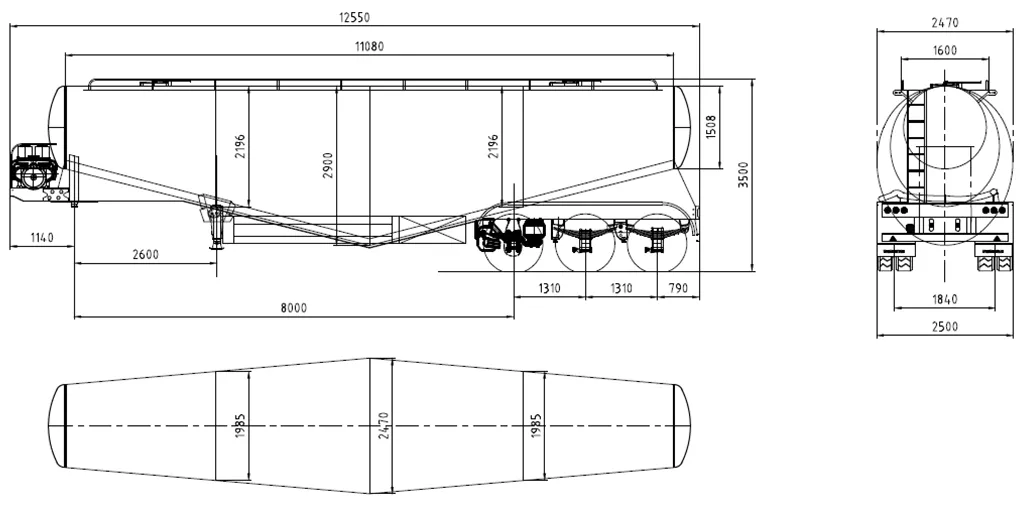

Product Configuration Of Bulk Cement Tank Trailer

Product Configuration Of Bulk Cement Tank Trailer_11zon

Frame and Traction Pins:

  • The frame of the bulk cement tank trailer is typically constructed from high-strength steel to ensure durability and structural integrity.
  • Traction pins, also known as kingpins, are crucial components that connect the trailer to the tractor unit. They are designed to withstand heavy loads and provide secure attachment during transportation.

Suspension System:

  • The suspension system of the bulk cement tank trailer plays a critical role in ensuring stability and smooth operation during transit.
  • Common suspension types include air suspension and mechanical suspension, each offering unique advantages in terms of load-bearing capacity and ride comfort.
  • Air suspension systems utilize air springs and shock absorbers to provide adjustable ride height and improved shock absorption, ideal for long-distance hauling.
  • Mechanical suspension systems rely on leaf springs and shock absorbers for load support and damping, offering simplicity and reliability for various operating conditions.

Axle and Wheels:

  • The bulk cement tank trailer typically features multiple axles equipped with high-load capacity wheel hubs and bearings to support the weight of the cargo.
  • Axles may be configured in various arrangements, such as single axle, tandem axle, or tri-axle setups, depending on the trailer’s load capacity requirements.
  • Wheels are typically fitted with durable tires designed to withstand heavy loads and provide reliable performance over long distances. Tire pressure monitoring systems (TPMS) may be integrated to ensure optimal tire pressure and minimize the risk of blowouts.

Support Device:

  • The support device of the bulk cement tank trailer includes landing gear and stabilizing jacks, which are essential for parking and stabilizing the trailer during loading and unloading operations.
  • Landing gear consists of retractable legs that are manually or hydraulically operated to support the front end of the trailer when it is detached from the tractor unit.
  • Stabilizing jacks are deployed at the rear of the trailer to prevent tipping and provide additional stability when the trailer is stationary.

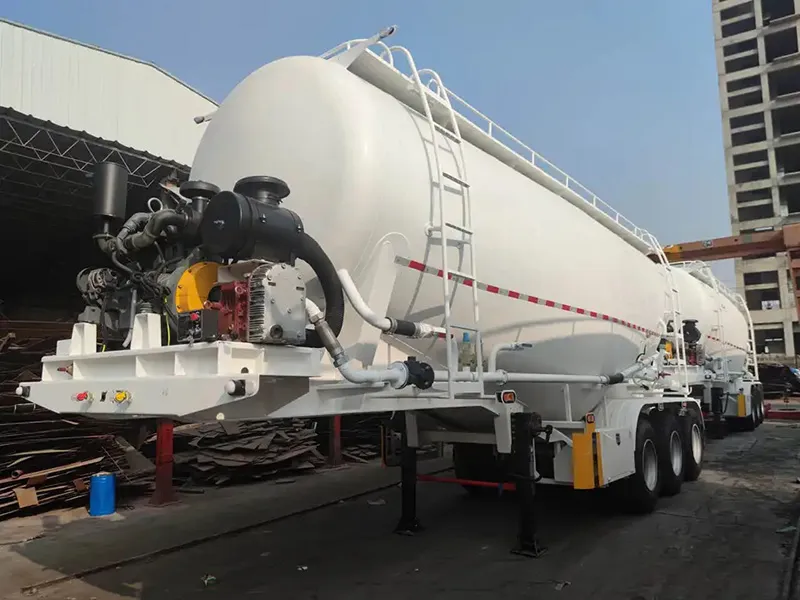

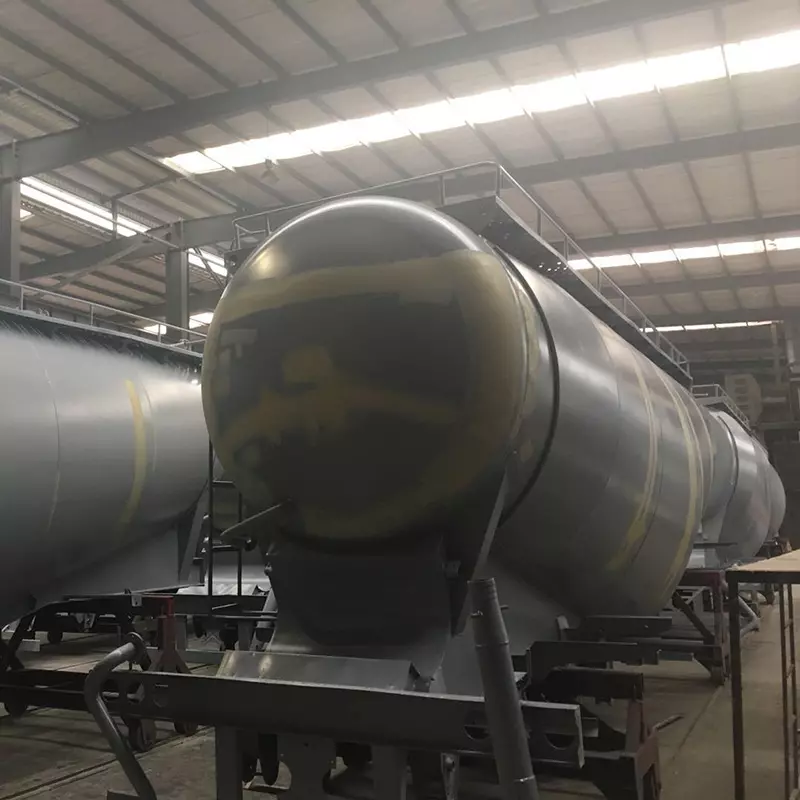

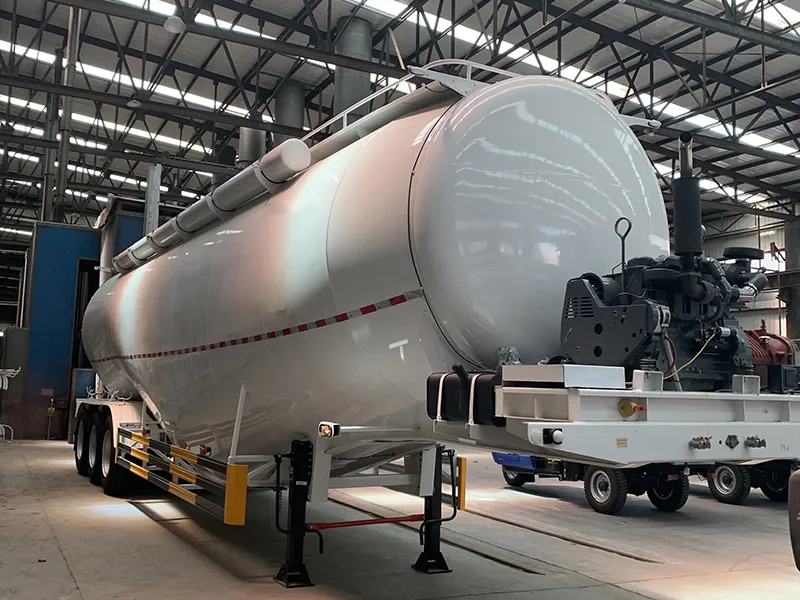

Production Process Of Bulk Cement Tank Trailer

Bulk Cement Tank Trailer
Bulk Cement Tank Trailer
Bulk Cement Tank Trailer

The production process of a bulk cement tank trailer involves several key stages to ensure quality, functionality, and safety. Here are the steps typically involved in the production process:

  1. Design and Engineering:
    The process begins with designing the bulk cement tank trailer based on industry standards and customer requirements. Engineers create detailed drawings and specifications for the trailer’s chassis, tank, brake system, electrical system, and other components.
  2. Material Selection and Procurement:
    High-quality materials such as steel or aluminum are selected for constructing the chassis and tank. Components such as brake systems, electrical wiring, suspension parts, and tires are sourced from reputable suppliers to meet safety and performance standards.
  3. Fabrication and Assembly:
    Fabrication shops cut and shape the metal components according to the design specifications. Welding, bending, and assembly processes are used to create the chassis, tank structure, and other parts of the trailer. Components like axles, suspension systems, brakes, electrical wiring, and lighting fixtures are installed during assembly.
  4. Tank Manufacturing:
    Specialized processes are employed to manufacture the bulk cement tank, including welding, pressure testing, and surface treatment. Inner coatings or linings may be applied to the tank to prevent corrosion and ensure product integrity during transportation.
  5. Integration of Systems:
    After the chassis and tank are assembled, various systems such as the brake system, electrical system, and management system are integrated into the trailer. Technicians ensure proper connection, testing, and calibration of these systems to ensure they function correctly and meet safety standards.
  6. Quality Control and Testing:
    Quality control inspections are conducted throughout the production process to check for structural integrity, welding quality, component alignment, and overall finish. Functional testing of the brake system, electrical system, lighting, and other components is performed to verify performance and compliance with regulations.
  7. Finishing and Final Inspection:
    Once assembly and testing are complete, the bulk cement tank trailer undergoes finishing processes such as painting, labeling, and final detailing. A final inspection is conducted to confirm that all components are in working order, safety features are functional, and the trailer meets regulatory requirements.
  8. Delivery and Customer Service:
    The finished bulk cement tank trailer is delivered to the customer or distributor according to agreed-upon terms. Manufacturers often provide customer support, maintenance guidelines, and warranty services to ensure the trailer’s long-term performance and customer satisfaction.

Working Principle Of Bulk Cement Tank Trailer

  • The working principle of a bulk cement tank trailer involves the transport of powdered cement in bulk quantities from one location to another. These trailers typically consist of a large cylindrical tank mounted on a chassis, equipped with various mechanisms for loading, unloading, and maintaining the integrity of the cargo.
  • The process begins with loading powdered cement into the tank through pneumatic or mechanical means. Once loaded, the tank is sealed to prevent leakage during transportation. During transit, the trailer is typically pulled by a truck or tractor.
  • When it arrives at the destination, the cement can be unloaded using pneumatic systems. Compressed air is introduced into the tank, creating pressure that forces the cement out through discharge pipes or hoses. This pneumatic discharge system allows for efficient and controlled unloading of the cargo.
  • Throughout the entire operation, safety measures are paramount to prevent accidents or environmental hazards. Proper maintenance of equipment, monitoring of pressure levels, and adherence to regulatory standards are essential aspects of ensuring the safe and effective operation of bulk cement tank trailers.

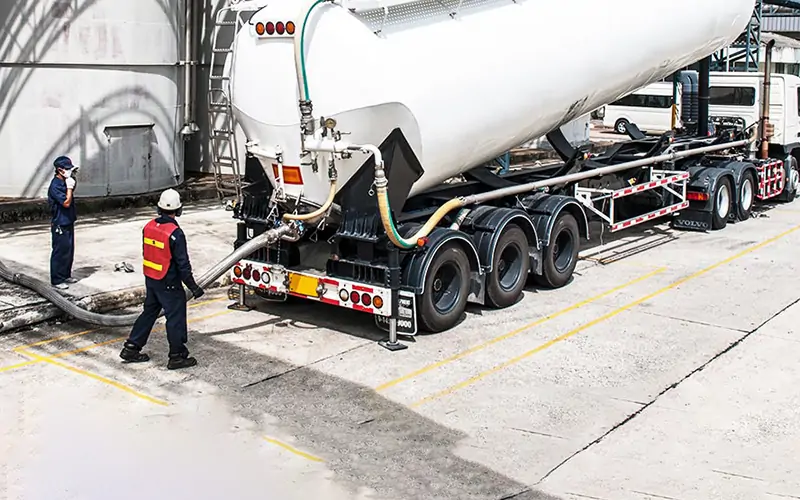

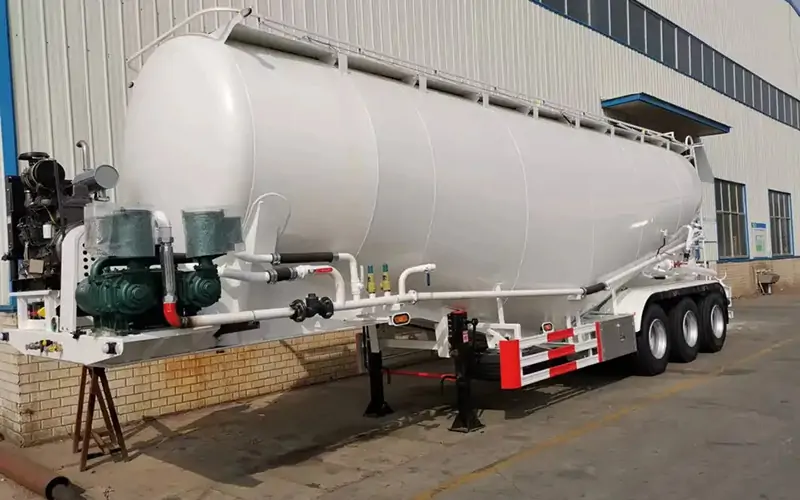

Application Scenarios Of Bulk Cement Tank Trailer

Bulk Cement Tank Trailer-a
Bulk Cement Tank Trailer-a
Construction Industry:

Bulk cement tank trailers are extensively used in the construction industry for transporting cement to construction sites. They are essential for delivering large quantities of cement efficiently, especially for projects requiring continuous concrete production. Construction of buildings, bridges, roads, and other infrastructure projects often rely on bulk cement transportation to meet concrete demands.

Infrastructure Development:

Infrastructure development projects such as highway construction, airport expansion, and railway projects require bulk cement for concrete production. Bulk cement tank trailers play a crucial role in supplying cement to these projects, ensuring a steady flow of construction materials to meet project timelines and specifications.

Industrial Applications:

Various industries utilize bulk cement tank trailers for transporting cement and other powdered materials used in manufacturing processes. Industries such as cement production, mining, chemical manufacturing, and power generation rely on bulk cement transportation for their operations.

Oil and Gas Sector:

The oil and gas sector often requires bulk cement for cementing operations in oil wells. Bulk cement tank trailers are employed to transport cement to drilling sites for cementing casings and wellbore integrity, essential for safe and efficient oil and gas production.

Agriculture:

In agricultural applications, bulk cement tank trailers are used for storing and transporting agricultural lime, a soil amendment used to neutralize acidic soils. These trailers enable farmers to efficiently distribute agricultural lime across their fields, improving soil pH and enhancing crop yields.

Bulk Material Handling:

Beyond cement, bulk cement tank trailers can also transport other powdered or granular materials such as fly ash, lime, gypsum, and sand. Industries involved in bulk material handling utilize these trailers to transport various materials required for their manufacturing processes or construction projects.
