LOW BED TRAILER

The bottom platform of low flatbed gooseneck semi trailer is usually 4 mm thickness,1mm thicker than flatbed semi trailer,so low flatbed semi trailer has high bearing capacity.And the checkered platform increase friction,which will provide a guarantee of safety for the cargo.

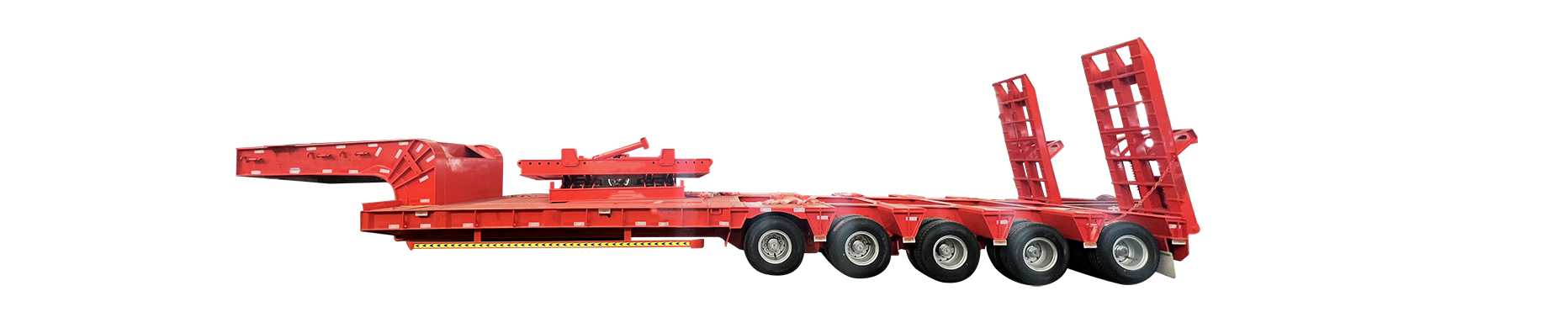

Product Gallery Of Low Bed Trailer

Product Parameter Of Low Bed Trailer

Specification
Dimension 13000x3000x3750mm(Outside)
The Payload Max.60T
Working Platform 9000x3000mm
Bottom Platform 4mm pattern
Twist Lock 4pcs for 20ft container
  Main beam Heavy duty and extra durability designed “H” beam, Opting for high tensile steel Q345B. Welded by automatic Submerged-Arc processes.
Frame beam Top Flange 20mm; Bottom Flange 20mm, Middle Flange 10mm; Height Flange 500mm
Side beam 300mm
Ramp Mechanical ladder reinforced type
Axle 3pcs 16tons heavy axles for Africa rough road condition
Landing Gear JOST brand 28T lifting capacity with two speeds
King Pin 2.0 or 3.5 inch
Suspension Mechanical suspension reinforced type
Leaf spring 90mm(W)*16mm(T)*10 Layer
Braking System Dual line pneumatic brake system, T30/30+T30 air chamber, 40L air tanks, Emergency relay valve
Tyre 315/80R22.5*12pcs
Rim 12pcs reinforced type
Accessories One standard tool box and spare tire carrier
Electrical system 24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights , rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Color Optional

Product Advantage Of Low Bed Trailer

  1. There are plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
  2. The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
  3. Durability:  Antimony alloy, nickel alloy and copper alloy are added to our steel, which has the advantages of acid resistance,  sulfur resistance and corrosion resistance.
  4. Excellent and professional team: Experienced staff will respond to all your questions within 12 hours.
  5. Accept customer’s customized requirements, can provide different models of trailer and trailer accessories, competitive price.
  6. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
  1. Anti-slip strip on tail and rear of platform to ensure loading safely.Optional landing gear under tail to ensure trailer to be stable when loading.

Product Detail Of Low Bed Trailer

  1. 28T Landing Gear; One or Two side operation on your requirement; JOST or FUWA brand.
  2. Heavy duty and extra durability designed “H” beam, Opting for high tensile steel Q345B.Welded by automatic Submerged-Arc processes.
  3. Axle: 12T 13T 16T Axles; FD, L1, FUWA, BPW brand on your requirement. Multi-axles, such as 4 axles 5 axles 6 axles on your requirement too.
  4. Tyre: Tubeless tyres: 12R22.5 13R22.5 Double-tyres or 385/65R22.5 Super single tyres ;Steel wire tires:12.00220,11.00220,according to your requirement.
  5. Mechanical Suspension or Air Suspension on your requirement.
  6. Mechanical ramp or Hydraulic ramp according to your demand.
  7. Painting and LOGO: we can paint your logo on or make stickers on your lowbed semi trailer.
Low Bed Trailer

Working Principle Of Low Bed Trailer

A low bed trailer, also known as a lowboy trailer, is a specialized type of semi-trailer specifically designed to transport tall and heavy equipment or machinery. The main working principle of a low bed trailer lies in its unique design features, which allow it to safely and efficiently transport oversized cargo. Here are some key components and working principles of a low bed trailer:

  • Low Profile: A low bed trailer has a low deck height compared to standard trailers, which allows for the transport of tall equipment without the risk of height clearance issues.
  • Extendable Ramps: Low bed trailers are often equipped with extendable hydraulic ramps that can be adjusted to facilitate the loading and unloading of heavy machinery. These ramps can be raised or lowered to match the height of the equipment being transported.
  • Multiple Axles: Low bed trailers typically have multiple axles to distribute the weight of the cargo evenly and provide stability during transportation. The number of axles can vary depending on the capacity of the trailer and the weight of the load.
  • Gooseneck or Detachable Neck: Some low bed trailers have a gooseneck or a detachable neck at the front, which allows for easier loading and unloading of equipment. The gooseneck also helps to improve the weight distribution and stability of the trailer.
  • Air Suspension System: Many low bed trailers are equipped with an air suspension system that can be adjusted to provide a smoother ride and improved handling, especially when transporting heavy loads over uneven terrain.
  • Safety Features: Low bed trailers often come with safety features such as locking mechanisms, load securement points, reflective markings, and lighting systems to ensure safe and secure transportation of oversized cargo.

The working principle of a low bed trailer is to provide a safe, stable, and efficient means of transporting tall and heavy equipment by utilizing specialized design features and components tailored to meet the unique requirements of oversized cargo transportation.

Application Scenarios Of Low Bed Trailer

Low bed trailers, also known as lowboy trailers, are highly versatile and find application in various scenarios due to their ability to transport oversized and heavy cargoes. Here are some common application scenarios of low bed trailers:

  1. Construction Industry: Low bed trailers are extensively used in the construction industry to transport heavy construction equipment such as excavators, bulldozers, cranes, and large industrial machinery to and from job sites. Their low deck height and extendable ramps make them well-suited for loading and transporting such equipment.
  2. Mining and Resource Extraction: In the mining and resource extraction sectors, low bed trailers are utilized to transport large and heavy mining equipment, including haul trucks, loaders, and drilling rigs, between mining sites or to and from processing facilities.
  3. Agricultural Machinery Transport: Agricultural machinery such as tractors, combine harvesters, and other large farming equipment can be efficiently transported using low bed trailers, making them essential for the agricultural industry.
  4. Energy and Infrastructure Projects: Low bed trailers play a crucial role in the transportation of oversized components for energy and infrastructure projects. This includes the movement of heavy transformers, generators, wind turbine components, and large industrial modules to construction sites or power generation facilities.
  5. Military and Defense: Military applications often involve the transport of heavy armored vehicles, tanks, and other military equipment. Low bed trailers are employed to facilitate the movement of these oversized and weighty assets for military operations and training exercises.
  6. Heavy Haulage and Oversized Cargo: Beyond specific industries, low bed trailers are used for general heavy haulage, including the transportation of oversized cargo such as industrial machinery, oversized containers, prefabricated structures, and other large components that require specialized transport due to their size and weight.

The low bed trailers are essential in a wide range of industries and applications where the transportation of heavy, large, or oversized equipment and machinery is required. Their specialized design and capabilities make them indispensable for moving heavy loads safely and efficiently in diverse sectors.

Factory Show

American type axle

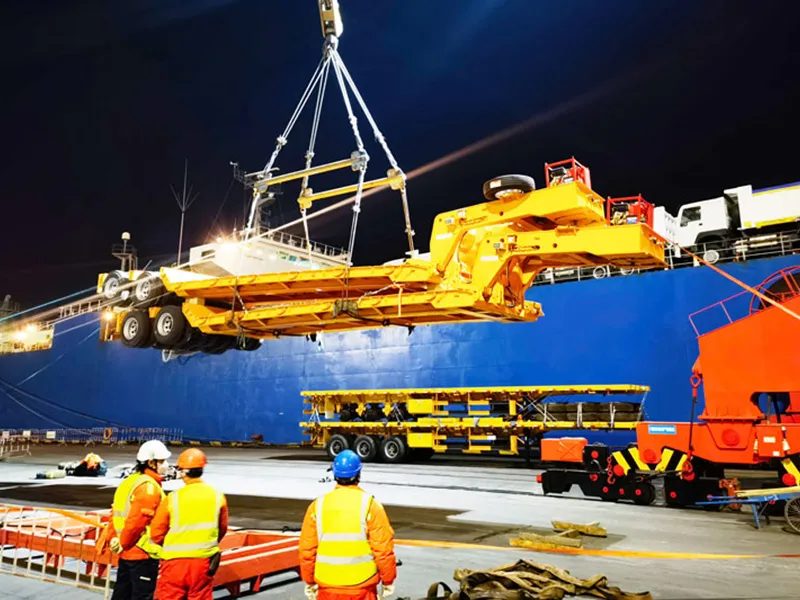

Product Shipping Of Low Bed Trailer

Our company provides good service for customers.About shipping,you can arrange  your own ships to pick up the goods at Chinese ports, and we can also help you arrange the shipments.We will find a shipping company and keep you updated estimated time of arrival.Ensure the safe and stable delivery of the trailer to your hands.

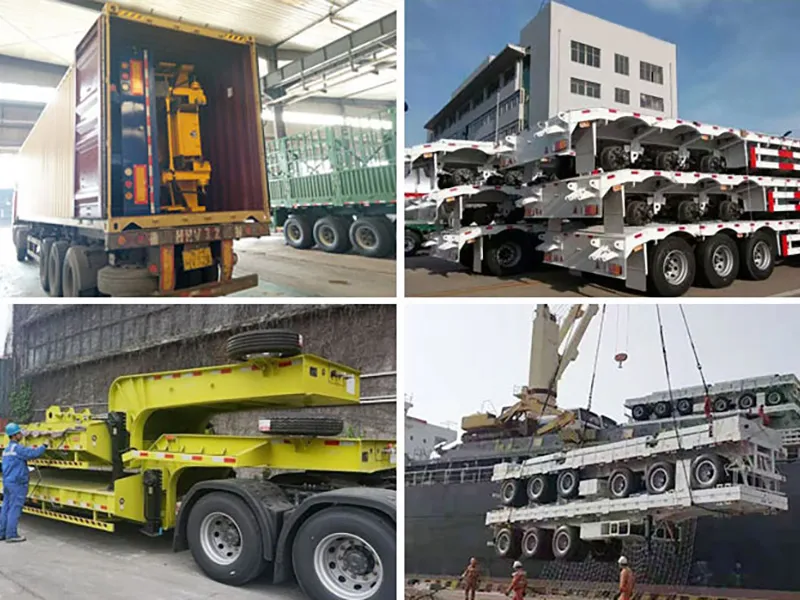

Low bed semi trailer will ship to your country by Bulk Cargo or RO-RO.When bulk cargo is transported, we will spray wax to prevent corrosion and rust.If it is RO-RO, it will be put directly inside the cabin.If you buy more than two low bed semi trailers, We’ll stack them to reduce the volume, so as to reduce the ocean freight cost for you.
