Disc brake axle

Product Application of Disc brake axle

Trailer axle is connected with frame through suspension, and wheels are installed at both ends. The function of the trailer axle is to support the load of the car and maintain the normal driving of the car on the road.  Disc Brake Shaft axle are widely used by India Africa and central American. It has the advantages of  better lubrication effect , small  resistance and high speed performance.

Disc Brake Axle

Product Advantages of Disc brake axle

1. Disc Brake Shaft axle has good thermal stability. This is because the brake disc has no friction and force on the friction pad, and because the size of the brake pad is not long, the working surface area is only 12% to 6% of the brake disc area, so the heat dissipation is better.

2. Disc Brake Shaft axle has good water stability. Because the brake pad has a high unit pressure on the disc, it is easy to squeeze out the water, and at the same time, it is easy to be smashed after being wetted by the centrifugal force, and the wiping effect of the pad on the disc is required. First, the second brake can return to normal; while the drum brake needs more than ten brakes to restore normal braking efficiency.

3. Under the condition of outputting the same amount of braking torque, the quality and size of the disc brake is smaller than that of the drum type.

Product Parameters of Disc brake axle

MODEL
Capacity
Tread Rut
Axle Tube
Total Length
Caliper WABCO
Recommended Wheel
LHU2009DB001AA
9/20kg/lbs
1835mm
127mm
2046mm
PAN19-1
7.50v-20
LHU2009DB001AA-00
11.5/25kg/lbs
1816mm
127mm
2046mm
PAN22-1
8.0v-20
LHU2009DB001AA-200
11.5/25kg/lbs
1850mm
127mm
2046mm
PAN22-1
8.0v-20
LHU2009DB001AA-300
11.5/25kg/lbs
1850mm
127mm
2046mm
PAN22-1
8.0v-20
LHU2009DB001AA-301
13/29kg/lbs
1850mm
150*150mm
2201mm
PAN22-1
8.0v-20
Disc brake axle
Disc brake axle
Disc brake axle

Product Detail of Disc brake axle

Disc brake axle

Machine Parts
Name: Brake Lining
Original: China
This product has high quality brake lining.
The brake pad is squeezed on the brake disc or brake drum to produce friction when the vhicle need to be braked. Because of the friction, the friction block will gradually be worn out. High quality brake lining can improve the service life of the trailer axler

Machine Parts

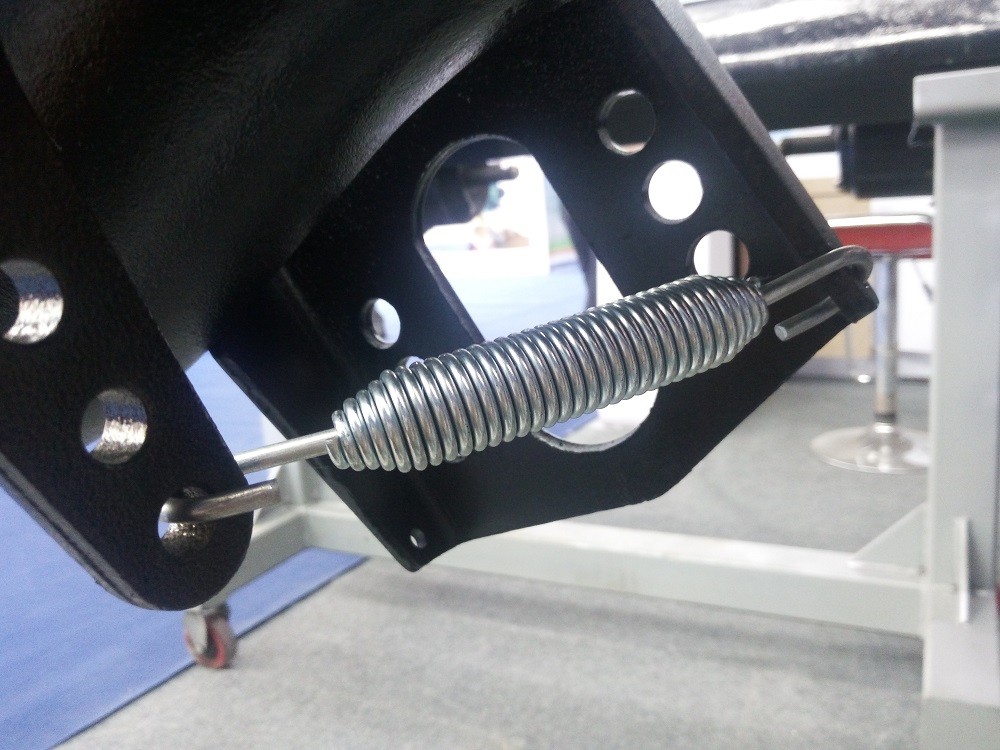

Name:Air chamber bracket
Original: China
If the trailer needs to use the air chamber, this air chamber bracket can help you to install it on to your trailer.

Disc brake axle
Disc brake axle

Machine Parts

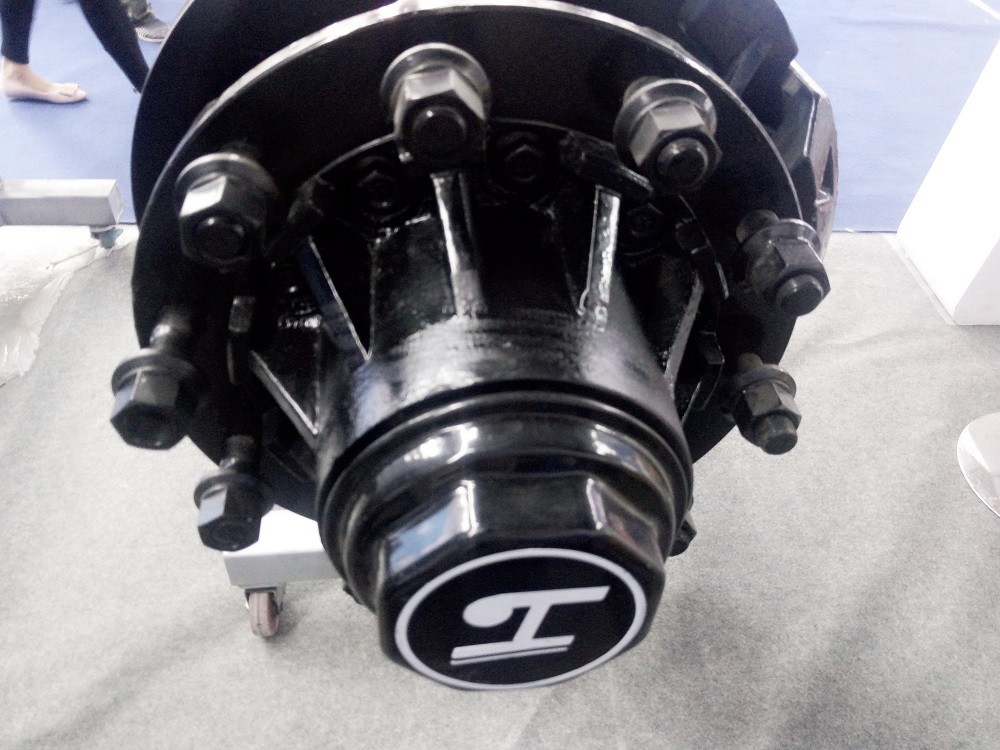

Name: Hub Cap
Original: China
The function of the hub cap is usually use to install the bearing, which plays the role of the equipment running on the bearing shaft. We can also Customized different kinds of LOGOs on the hub cap.

Machine Parts

Name: Adjust Slack
Original: China
The adjusting slack can ensure that the wheel has a constant brake clearance and it can also make the brake  safe and reliable. This part can improve the safty of your trailer.

Disc brake axle
