Fence Trailer

A fence trailer, also known as a stake trailer, is a type of semi-trailer that is equipped with removable or folding side walls. These side walls, resembling a fence, provide added security and protection for the cargo being transported. Fence trailers are commonly used in various industries, such as construction, agriculture, retail, and event logistics, to safely transport goods and materials. Their versatile design allows for easy loading and unloading of cargo, making them a popular choice for many applications.

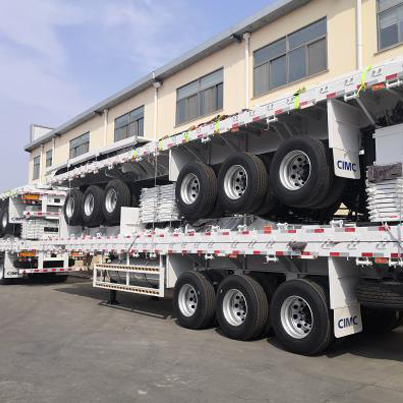

Product Gallery Of Fence Trailer

Product Parameter Of Fence Trailer

Dimension 12.6m×2.65m×3.5m (outside) 14m×2.65m×3.5m (outside)
Body Height 1m panel, 0.2m inter space,0.8m fence
Payload 60T
Twist lock 12pcs container locks for 20ft and 40ft container
Main beam Heavy duty and extra durability designed H beam; Opting for high tensile steel Q345B, Welded by automatic Submerged-Arc processes.
Frame Beam Top Flange 14mm, Bottom Flange 16mm, Middle Flange 8mm, width 140mm, height 500mm
Frame Floor The thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10#Channel
Along beam 6#Channelx6
Axle 3pcs 14tons heavy axles design for Africa rough road condition
Landing Gear JOST brand 28T lifting capacity with linkage speed
King Pin 2.00 or 3.5 inch
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10Layer
Braking System Dual line pneumatic brake system, T30/30+T30 air chamber, 40L air tanks,Emergency relay valve
Tire 12R22.5*12pcs
Accessories Two tool boxes and two spare tire carriers
Electrical system 24 volt electrical system.7 pin electrical connector. Parking ,stop,reverse,number plate and indicator lights, rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

What Is The Fence Trailer?

  • A fence trailer is a specialized trailer designed specifically for transporting fencing materials from one location to another. These trailers are usually equipped with a flatbed or platform with built-in slots or holders to securely hold the materials in place during transit. By providing a convenient and safe way to transport panels, posts, gates, and other fencing accessories, fence trailers play a crucial role in ensuring that all necessary materials are efficiently delivered to the job site.
  • Fence trailers offer a range of advantages to contractors and fencing companies. They enhance efficiency by allowing for the loading, transport, and unloading of materials in a single trip, reducing the need for multiple trips back and forth. Additionally, the safety features of fence trailers ensure that materials are held securely during transport, minimizing the risk of accidents or damage. These trailers also contribute to cost-effectiveness by reducing labor costs and fuel expenses, making them a valuable investment for businesses looking to streamline their operations and increase profitability.
  • In addition to their practical benefits, fence trailers also project a professional image for contractors and fencing companies. By having the proper equipment for transportation, these businesses can demonstrate their commitment to quality and efficiency, leading to increased customer satisfaction and potential for future business opportunities. Overall, fence trailers serve as essential tools for the successful completion of fencing projects, offering versatility, efficiency, safety, cost-effectiveness, and professionalism in one convenient package.

Product Advantage Of Fence Trailer

Fence trailers can be used to transport a variety of fencing materials, including panels, posts, gates, and other accessories. This versatility allows for easy and efficient transportation of all necessary materials for a fencing project.

Using a fence trailer can streamline the process of transporting fencing materials, saving time and labor costs. With a fence trailer, materials can be loaded, transported, and unloaded in a single trip, reducing the need for multiple trips back and forth.

Fence trailers are designed with safety in mind, ensuring that materials are securely held in place during transport. This minimizes the risk of accidents or damage to the materials, as well as ensuring the safety of other drivers on the road.

Investing in a fence trailer can ultimately save money in the long run. By reducing labor costs, fuel costs, and the need for additional vehicles for transport, a fence trailer can increase overall efficiency and profitability for fencing projects.

Using a fence trailer can enhance the professionalism of a fencing company or contractor. Having the proper equipment for transportation shows clients that the job will be done efficiently and effectively, leading to increased customer satisfaction and potentially more business opportunities.

Fence Trailer

How do Fence Trailer work?

Fence trailers are specially designed trailers that are used for transporting fencing materials such as panels, posts, and related equipment. These trailers typically have a flatbed or a platform with built-in slots or holders for securing the fencing materials during transport. Here are five key features of how fence trailers work:

  1. Secure Transport: The main purpose of a fence trailer is to securely transport fencing materials from one location to another. The design of the trailer ensures that the materials are held in place during transit, preventing them from shifting or falling off.
  2. Easy Loading and Unloading: trailers are typically designed for easy loading and unloading of fencing materials. The flatbed or platform of the trailer allows for easy access to the materials, making it convenient to load and unload them.
  3. Customizable Design: trailers can be customized to accommodate different types and sizes of fencing materials. Some trailers may have adjustable slots or holders to securely hold different types of panels or posts.
  4. Durability: trailers are built to be durable and withstand the weight and pressure of heavy fencing materials. They are typically made of strong materials such as steel or aluminum to ensure they can withstand rough handling and long-distance transport.
  5. Maneuverability: Fence trailers are usually equipped with features such as wheels and a hitch that make them easy to maneuver and tow behind a vehicle. This allows for easy transport of fencing materials to various job sites or locations.

How To Choose A Fence Trailer?

When choosing a fence trailer, it’s important to consider the following factors:

  1. Size and capacity: Choose a trailer that is large enough to accommodate the amount of fencing you need to transport. Determine the length, height, and weight of the fencing materials you will be hauling and choose a trailer with a suitable capacity.
  2. Type of materials: Consider the type of fencing materials you will be transporting. Different trailers are designed to handle different types of materials, such as chain-link, wood, or metal fencing.
  3. Trailer hitch: Make sure the trailer you choose is compatible with your vehicle’s hitch. Check the weight capacity of your vehicle’s hitch and choose a trailer that falls within this limit.
  4. Durability and quality: Select a trailer that is made from high-quality materials and is durable enough to withstand the rigors of transporting fencing materials. Look for trailers with reinforced construction and strong components.
  5. Maneuverability: Consider the ease of maneuvering the trailer, especially if you will be using it on job sites with limited space or obstacles. Look for trailers with features like swivel or adjustable hitch options for better maneuverability.
  6. Safety features: Ensure the trailer has proper safety features such as brakes, lights, and reflective markings to comply with road regulations and ensure safe transportation of the fencing materials.
  7. Budget: Set a budget for your fence trailer purchase and compare prices from different manufacturers to find a trailer that meets your needs within your budget.

Overall, choosing the right fence trailer involves considering the size and capacity needed, compatibility with your vehicle, durability, safety features, and budget constraints. Be sure to research and compare different options to find the best trailer for your fencing transportation needs.

Application Scenarios Of Fence Trailer

Fence trailers, also known as stake trailers, are widely used in a variety of industries for transporting goods and materials securely. Common application scenarios for fence trailers include:

  1. Construction Industry: trailers are used to transport construction materials such as lumber, steel beams, and equipment to construction sites. The side walls provide added security and stability for the cargo during transit.
  2. Agriculture: Farmers use trailers to transport crops, livestock, and farm equipment. The side walls help contain the cargo and protect it from damage.
  3. Retail and Distribution: trailers are commonly used to transport goods to retail stores, distribution centers, and warehouses. The side walls help secure the cargo and prevent it from shifting during transport.
  4. Event Logistics: Fence trailers are essential for transporting equipment, props, and materials for events, exhibitions, and trade shows. The side walls provide protection for the cargo and help ensure it arrives safely.
  5. Waste Management: trailers are utilized for transporting recyclable materials, waste, and debris. The side walls help contain the materials and prevent them from spilling during transit.

Overall, fence trailers are versatile and reliable for safely transporting a variety of goods and materials in different industries. Their secure design makes them a popular choice for various application scenarios.

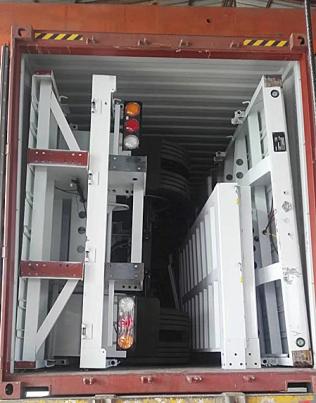

Product Shipping Of Fence Trailer

Upon purchasing a Fence Trailer, the packaging and transportation process involves carefully securing the trailer for delivery to the customer. The trailer is typically packaged with protective materials to ensure it arrives in pristine condition. Once the trailer is loaded onto a transportation vehicle, it is delivered to the customer’s designated location in a timely manner. The transportation process is coordinated to ensure the safe and efficient delivery of the trailer to the customer, ready for immediate use.
