Bogie suspension

Product Application of Bogie suspension

Suspension is a general term for all force transmission devices between a frame (or a load-bearing body) of a car and an axle (or a wheel), and its function is to transmit a force and a force twist acting between the wheel and the frame, and Buffer the impact force transmitted from the uneven road to the frame or the body, and reduce the vibration caused by it to ensure that the car can run smoothly.

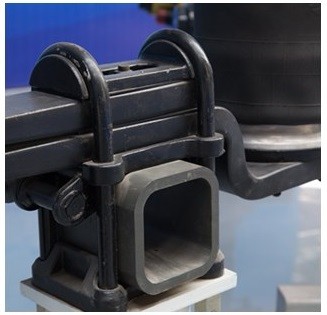

Bogie suspension

Product Advantage of Bogie suspension

  • The advantages of bogie suspension:
  • The light weight reduces the impact on the body and improves the ground adhesion of the wheel; the softer spring with less stiffness can improve the comfort of the car; the engine position can be lowered, the car center of gravity can be reduced, and the car can be driven. Stability; the left and right wheels are individually beating and independent of each other, which can reduce the tilt and vibration of the body.

    Modern cars mostly use single-point suspension systems. According to their different structural forms, single-point suspension systems can be divided into cross-arm type, trailing arm type, multi-link type, candle type and McPherson suspension system.

Product Parameters

Modle
Capacity
Bearing
Axle tube
Dual Spacing
Track
Spring Denter
LHDC24
24T
33213
33218
150*150*12
1850mm
1400mm
980mm
LHDC24
28T
33215
33219
150*150*14
1850mm
1550mm
900mm
LHDC24
32T
32314
32222
150*150*16
1850mm
1550mm
900mm

Product Detail

Bogie suspension

Machine Parts

Name: Suspension front branch

Original: China

The front branch of the suspension is the head of a suspension, which is the comparative large part of a suspension.

Machine Parts

Name: Suspension middle branch
Original: China
The suspension middle branch is an accessory for connecting two leaf springs. There are two interfaces.


Bogie suspension
Bogie suspension

Machine Parts

Name: leaf spring
Original: China
A plate spring made up of not less than one piece of spring steel superposed.Leaf springs are commonly used in wheeled vehicle suspensions, originally called laminate or bracket springs, sometimes referred to as semi-elliptical springs or trolley springs, and are one of the oldest spring forms dating back to the Middle Ages.

Machine Parts

Name: Suspension back branch
Original:China
The back branch of the suspension is the end of a suspension, which is the comparative small part of a suspension.

Bogie suspension

Factory Show

American type axle

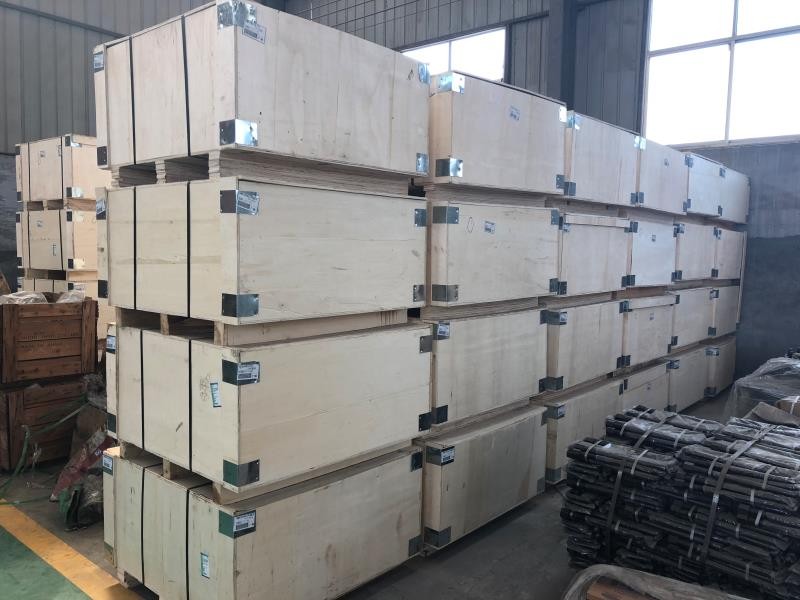

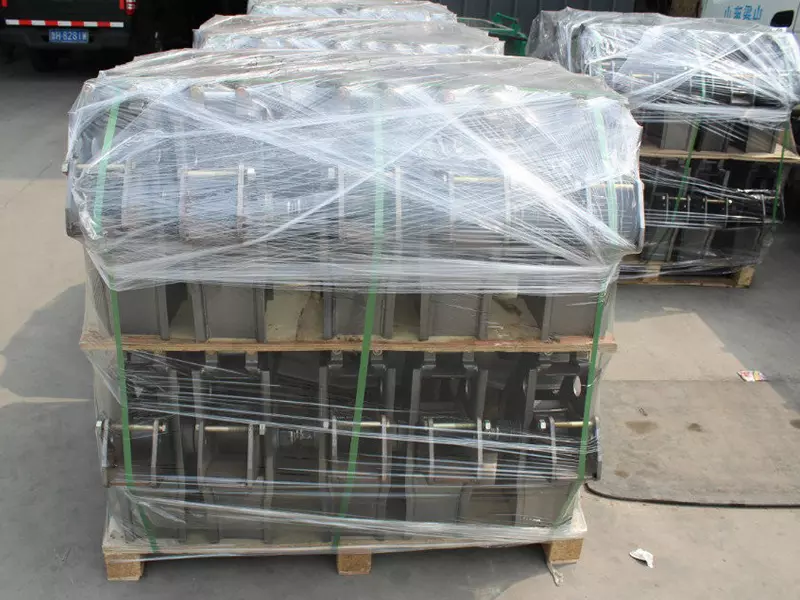

Package Delivery
