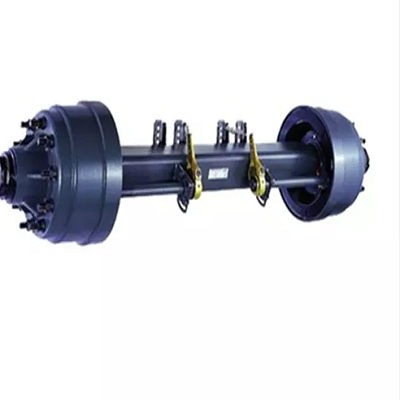

Trailers Manufacturers Outboard Drum Trailer Steering 13T American Type Trailer Axle On Sale

13T American Type
13T American Type

Product Introduction Of 13T American Type

Technical Parameter of 13T American Type

ModelCapacity(kg)Track(mm)Axle TubePCD(mm)Total LengthRecommended Wheel
(mm)(mm)
LHAA-Y11T110001820○12733521657.5V-20
LHAA-Y13T130001840○12733521857.5V-20
LHAA-F13T130001840□15033521857.5V-20
LHAA-F14T140001840□15033521857.5V-20
LHAA-F16T160001850□15033522058.00V-20
LHAA-F20T200001850□15033522528.00V-20
1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  13T American Type can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

Detailed Images of 13T American Type

Hot Sale American Axle
Semi-trailer-parts
13T American Type
Semi-trailer-parts-2
13T American Type

Product Features of 13T American Type

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of 13T American Type

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of 13T American Type

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
