Ejes De Remolque Partes Del Remolque 13Ton Ejes Externos

13Ton Ejes Externos
13Ton Ejes Externos

Product Introduction Of 13Ton Ejes Externos

Technical Parameter of 13Ton Ejes Externos

ModelCapacity(mm)Brake Size (mm)P.C.D(mm)Axle Tube(mm)Track(mm)Spring Center (mm)
LH1-13T13T420*180335Square1501840950
LH2-13T13T420*180335Round/Square1271840930
LH-14T14T420*220335Square1501840930
LH-16T16T420*220335Square1501840940
LH-20T20T420*220335Square1501840940

 Noted:

  1. The 13Ton Ejes Externos can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

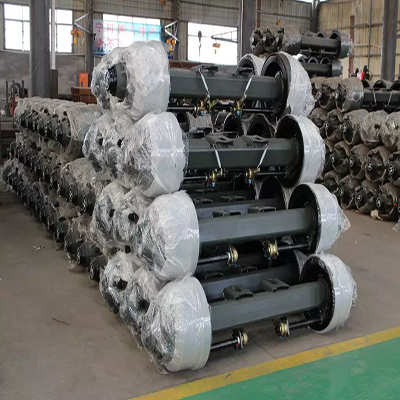

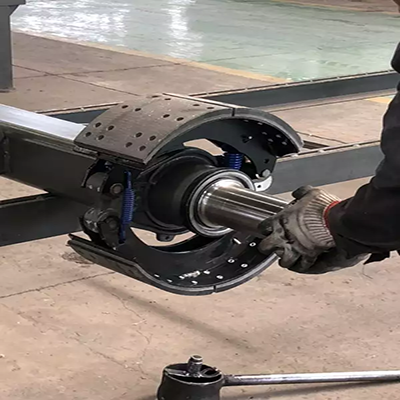

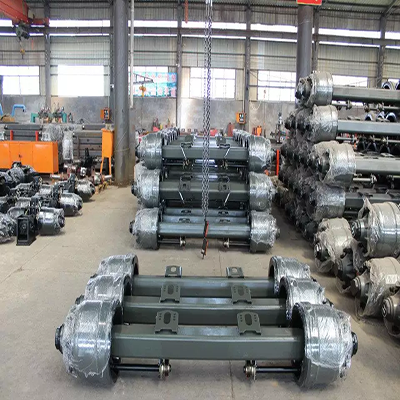

Detailed Images of 13Ton Ejes Externos

Hot Sale American Axle
13Ton Ejes Externos
13Ton Ejes Externos
13Ton Ejes Externos
13Ton Ejes Externos

Product Features of 13Ton Ejes Externos

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of 13Ton Ejes Externos

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of 13Ton Ejes Externos

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of 13Ton Ejes Externos
