German Type 16T Assemble Abs Truck Rear Steer Axle

Abs Truck Rear Steer Axles
Abs Truck Rear Steer Axles

Product Introduction Of Abs Truck Rear Steer Axles

Technical Parameter of Abs Truck Rear Steer Axles

Model

Capacity

(kg)

Track(mm)

Axle Tube

(mm)

Brake Size

PCD

(mm)

Total Length

(mm)

Recommended Wheel

LHGA-F12T

12000

1840

○127

420*180

335

2165

7.5V-20

LHGA-F14T

14000

1840

○127

420*200

335

2185

7.5V-20

LHGA-F16T

16000

1850

□150

420*200

335

2185

7.5V-20

LHGA-F18T

18000

1850

□150

420*220

335

2185

7.5V-20

 Noted:

  1. The  Abs Truck Rear Steer Axles can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

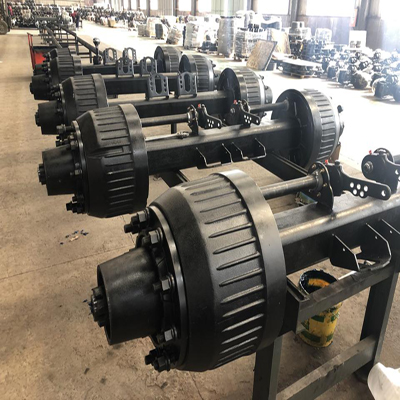

Detailed Images of Abs Truck Rear Steer Axles

Hot Sale American Axle
Germany-Drum-Axle-2
Abs Truck Rear Steer Axles
Germany-Drum-Axle-1
Abs Truck Rear Steer Axles

Product Features of Abs Truck Rear Steer Axles

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Abs Truck Rear Steer Axles

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Abs Truck Rear Steer Axles

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
