Heavy Duty Truck American Suspension System Trailer Spare Parts

American Suspension System
American Suspension System

Product Introduction Of American Suspension System

Technical Parameter of American Suspension System

Model

Height Of Towing Plate

L1

(mm)

L2

(mm)

L3

(mm)

L4

(mm)

L5

(mm)

H

(mm)

LHAS-2/3180

1180

485

1310

495

1135

1155

180

LHAS-2/3230

1230

485

1310

495

1135

1155

230

LHAS-2/3270

1270

485

1310

495

1135

1155

270

LHAS-2/3320

1320

485

1310

495

1135

1155

320

1. Can be equipped with 13/16/20T axles.                 2. Can be equipped with round shaft/square shaft.

 3. You can choose front/reverse installation.                     4. Can choose the leaf spring specification.

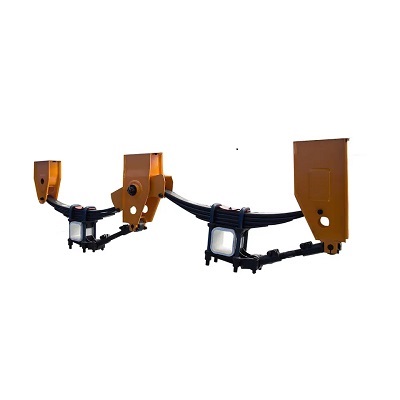

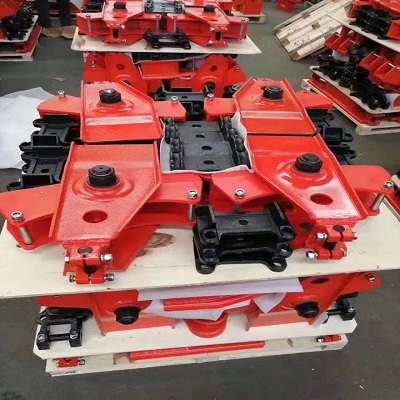

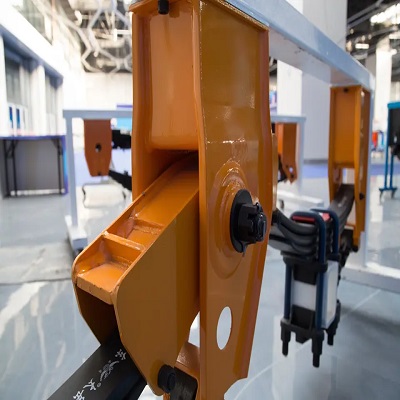

Detailed Images of American Suspension System

American Suspension
American Suspension System
American Suspension System
American Suspension System
American Suspension System

Product Features of American Suspension System

Hanger Assembly: The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.

Leaf Spring: Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.

Advantage:

  1. Carry greater vertical load and better torque.
  2. Easy installation, low price, long service life, low maintenance cost.
  3. It is suitable for various road conditions and has many optional specifications.

Production Process of American Suspension System

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of American Suspension System

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586
