13 Tons Suitable
American Axle 13 Tons Suitable For Semi-trailer
2022-12-30
13ton Axle American Type
Wholesale Factory Direct 13ton Axle American Type Axles With Leaf Spring And Chassis Parts For Semi-Trailer Manufacturing
2022-12-30

Trailer Axles American Type 13T FUWA Axle With Best Price

American Type 13T
American Type 13T

Product Introduction Of American Type 13T

Technical Parameter of American Type 13T

item
value
Use
Trailer Parts
Parts
Trailer Axles
OE NO.
LH01
Max Payload
13T
Size
13T
Place of Origin
China

Shandong
Brand Name
LUEN
Product Name
LUEN Best Price Trailer Axles American Type Outboard 13 Ton Axle for Sale
Material
Steel
Application
Trailer Truck Used
Color
Customer Demands
Capacity
13T
Track
1968.50mm
Brake Size
420*180mm
P.C.D
285.75mm
Certificate
ISO 9001
Package
Standard Package/Customer Requirements

 Noted:

  1. The American Type 13T can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

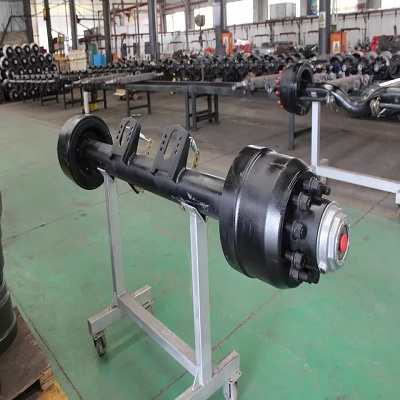

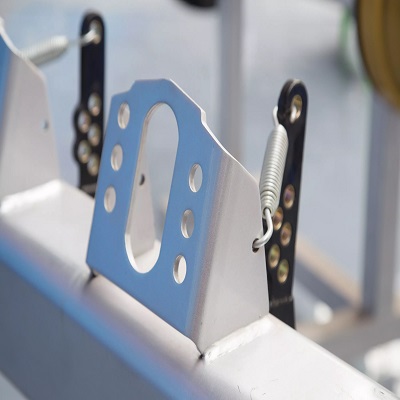

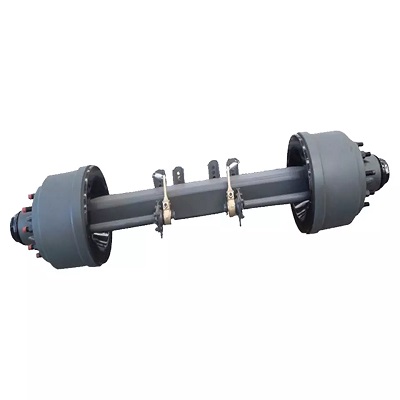

Detailed Images of American Type 13T

Hot Sale American Axle
American Type 13T
American Type 13T
American Type 13T
American Type 13T

Product Features of American Type 13T

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of American Type 13T

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of American Type 13T

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of American Type 13T
