Hot Sale 3 Axles/2 Axles German Type Semi Trailer Suspension For OEM Semi Trailer Accessories
2023-02-02
Semi Trailer Vehicle
Germany Type two Or Three Axle Mechanical Suspension Series For Semi Trailer Vehicle
2023-02-01

High Quality Two Axle Mechanical German Type Suspension Made In China

Axle Mechanical
Axle Mechanical

Product Introduction Of Axle Mechanical

Technical Parameter of Axle Mechanical

Model

Height Of Towing Plate

L1

(mm)

L2

(mm)

L3

(mm)

L4

(mm)

L5

(mm)

H

(mm)

LHAS-2/3180

1180

485

1310

495

1135

1155

180

LHAS-2/3230

1230

485

1310

495

1135

1155

230

LHAS-2/3270

1270

485

1310

495

1135

1155

270

LHAS-2/3320

1320

485

1310

495

1135

1155

320

1. Can be equipped with 13/16/20T axles.                         2. Can be equipped with round shaft/square shaft.

       3. You can choose front/reverse installation.                     4. Can choose the leaf spring specification.

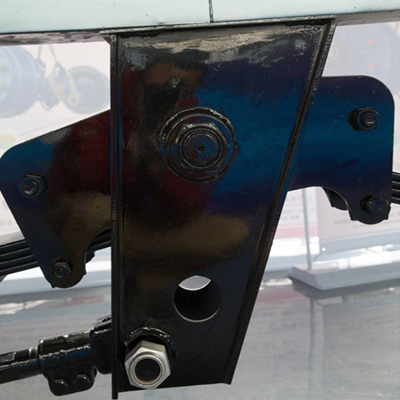

Detailed Images of Axle Mechanical

German Type Suspension
Axle Mechanical
German Type Suspension
Axle Mechanical

Advantages of Axle Mechanical

  1. German suspension effectively reduces the severe vibration during vehicle operation and ensures the best braking performance of the vehicle.
  2. Smooth operation to protection of various items from the impact of vehicle operation.
  3. German suspension makes the car adapt to the road condition faster and better.
  4. When the vehicle is running at no load, the axle is lifted by the axle lifting device to reduce tire wear.
  5. German suspension lifting device can raise or lower the height of the vehicle for easy unloading.

Production Process of Axle Mechanical

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of Axle Mechanical

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586

FAQ of Axle Mechanical
