Fuwa Axle Beam
Hot Selling Fuwa Axle Beam 13Ton With Best Price
2023-01-07
12T/14T/16T Standard Size
12T/14T/16T Standard Size German Type Trailer BPW Axle
2023-01-06

Tri-axle Flatbed Trailer Axle Trailer Axle Kits

Axle Trailer Axle Kits
Axle Trailer Axle Kits

Product Introduction Of Axle Trailer Axle Kits

Technical Parameter of Axle Trailer Axle Kits

Model

Capacity(mm)

Brake Size

P.C.D(mm)

Axle Tube(mm)

Track(mm)

Spring Center

(mm)

(mm)

LH1-13T

13T

420*180

335

Square150

1840

950

LH2-13T

13T

420*180

335

Round/Square127

1840

930

LH-14T

14T

420*220

335

Square150

1840

930

LH-16T

16T

420*220

335

Square150

1840

940

LH-20T

20T

420*220

335

Square150

1840

940

 Noted:

  1. The  Axle Trailer Axle Kits can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

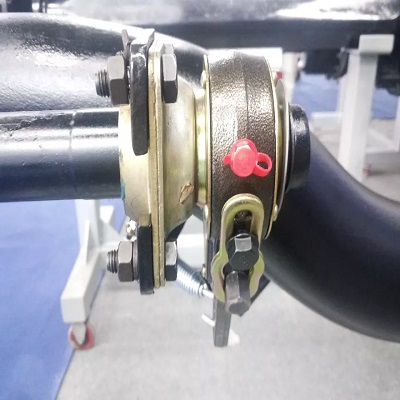

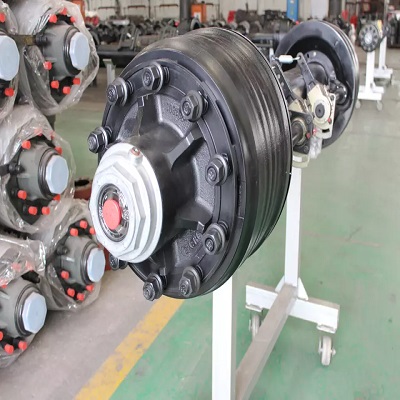

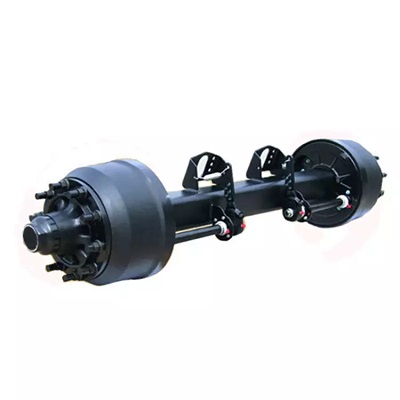

Detailed Images of Axle Trailer Axle Kits

Hot Sale American Axle
Axle Trailer Axle Kits
Axle Trailer Axle Kits
Axle Trailer Axle Kits
Axle Trailer Axle Kits

Product Features of Axle Trailer Axle Kits

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Axle Trailer Axle Kits

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Axle Trailer Axle Kits

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Axle Trailer Axle Kits
