American Suspension Tandem
Axle Less Heavy Duty Truck Semi Trailer Parts American Suspension Tandem Suspension For Sale
2023-01-18
3 Axle Suspension Trailer
Hot Sale Semi Trailer Parts 3 Axle Suspension Trailer Parts
2023-01-18

Heavy Spring Set BPW Trucks Trailer Parts Independent Coil Trailer American Suspension

BPW Trucks Trailer
BPW Trucks Trailer

Product Introduction Of BPW Trucks Trailer

Technical Parameter of BPW Trucks Trailer

Model
Height of towing plate
A1
B1
A2
B2
H
Axle Load
LH-02-180
1180mm
473mm
443mm
465mm
435mm
185mm
16T*2
LH-02-230
1230mm
523mm
493mm
515mm
485mm
235mm
16T*2
LH-02-270
1270mm
563mm
533mm
555mm
525mm
275mm
16T*2
LH-02-320
1320mm
613mm
583mm
605mm
575mm
325mm
16T*2

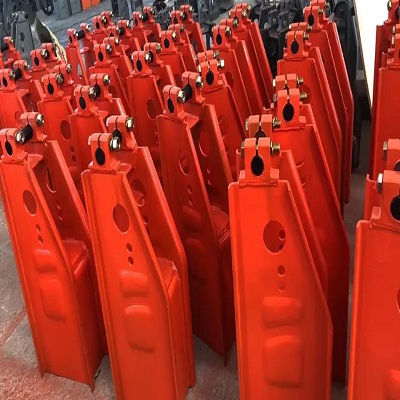

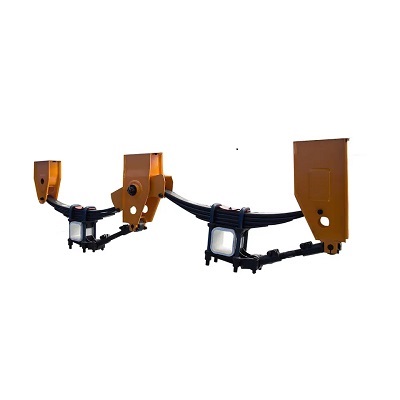

Detailed Images of BPW Trucks Trailer

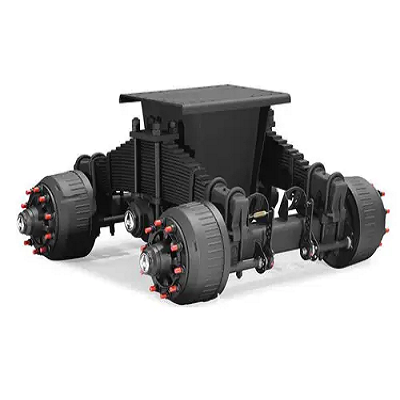

American Suspension
BPW Trucks Trailer
BPW Trucks Trailer
BPW Trucks Trailer
BPW Trucks Trailer

Product Features of BPW Trucks Trailer

Hanger Assembly: The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.

Leaf Spring: Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.

Advantage:

  1. Carry greater vertical load and better torque.
  2. Easy installation, low price, long service life, low maintenance cost.
  3. It is suitable for various road conditions and has many optional specifications.

Production Process of BPW Trucks Trailer

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

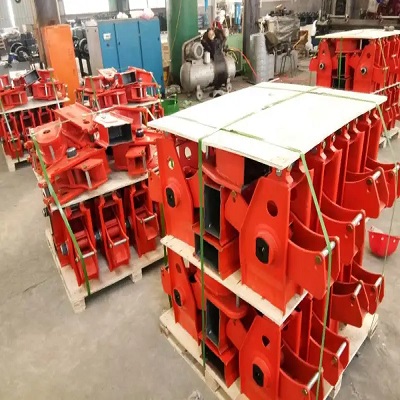

Package of BPW Trucks Trailer

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586

FAQ of BPW Trucks Trailer
