Eixo Tipo Alemao
2022 Qualidade Garantida 12T 14T 16T Eixo Tipo Alemao
2023-01-07
1850mm Semi Trailer
Factory Truck 1850mm Semi Trailer Parts 16Ton American Fuwa Axles
2023-01-07

16T German Type Axle Made In China Semi Trailer Truck Trailer Steel

China Semi Trailer
China Semi Trailer

Product Introduction Of China Semi Trailer

Technical Parameter of China Semi Trailer

Model

Capcaity

Total Length

Track

Axle Tube

Studs

PCD

Brake Size

Bearing

(KG)

(mm)

(mm)

LHG-12T

12000

2144

1840

150*150*12

10-M22*1.5 ISO

335

420*180

33213

33118

LHG-14T

14000

2198

1840

150*150*14

10-M22*1.5 ISO

335

420*180

33215

33119

LHG-16T

16000

2272

1840

150*150*16

10-M22*1.5 ISO

335

420*180

32314

32222

 Noted:

  1. The  China Semi Trailer can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

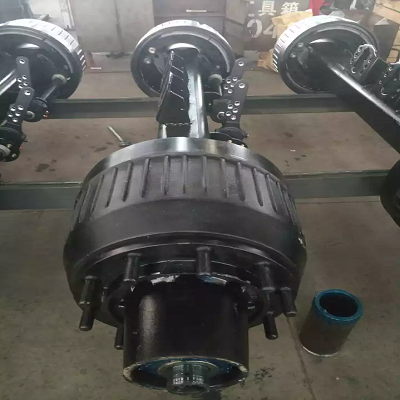

Detailed Images of China Semi Trailer

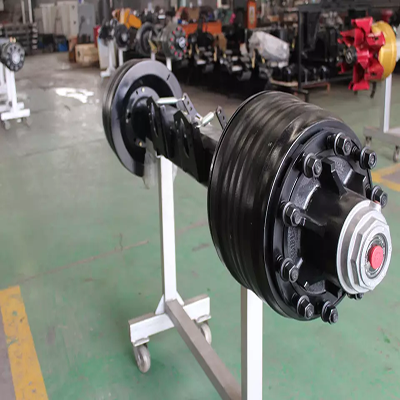

Hot Sale American Axle
Germany-Drum-Axle-2
China Semi Trailer
Germany-Drum-Axle-1
China Semi Trailer

Product Features of China Semi Trailer

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of China Semi Trailer

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of China Semi Trailer

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
