Dump Truck Axle 13T American Type Axle Made In China

Dump Truck Axle
Dump Truck Axle

Product Introduction Of Dump Truck Axle

Technical Parameter of Dump Truck Axle

ModelCapacity(mm)Brake Size (mm)P.C.D(mm)Axle Tube(mm)Track(mm)Spring Center (mm)
LH1-13T13T420*180335Square1501840950
LH2-13T13T420*180335Round/Square1271840930
LH-14T14T420*220335Square1501840930
LH-16T16T420*220335Square1501840940
LH-20T20T420*220335Square1501840940

 Noted:

  1. The Dump Truck Axle can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

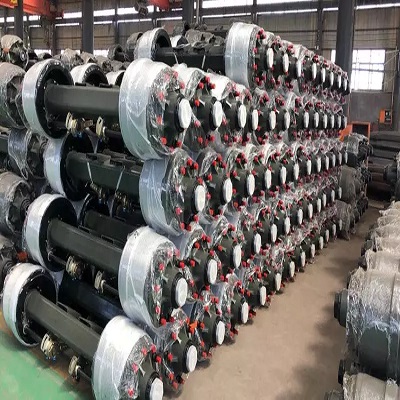

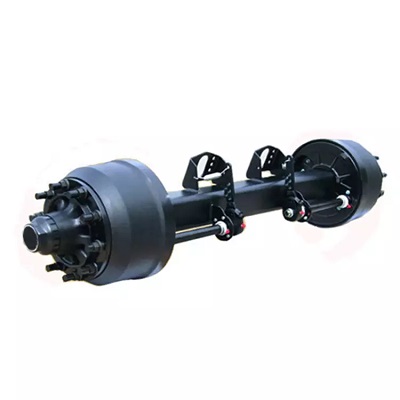

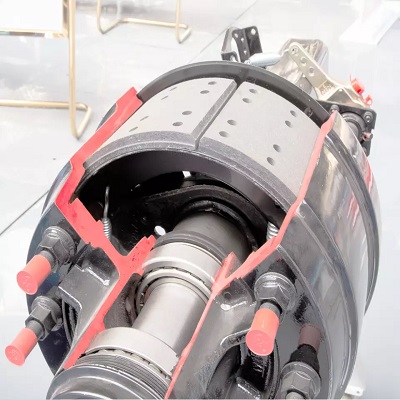

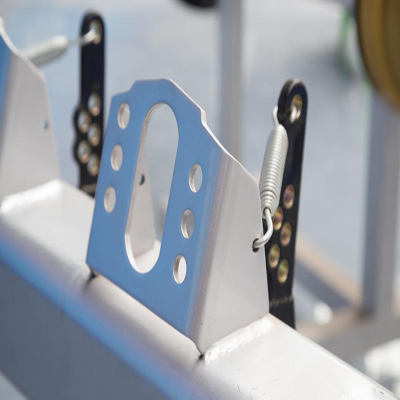

Detailed Images of Dump Truck Axle

Hot Sale American Axle
Dump Truck Axle
Dump Truck Axle
Dump Truck Axle
Dump Truck Axle

Product Features of Dump Truck Axle

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Dump Truck Axle

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Dump Truck Axle

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Dump Truck Axle
