Tipo Aleman Bpw
Tipo Aleman Bpw 12/13/28tons Eje De Remolque
2023-01-14
BPW Type Axle
Semi Trailer Axle 12T BPW Type Axle Trailer Axle Made In China
2023-01-14

Tipo Aleman Bpw 12/13/28tons Eje De Remolque Para Piezas De Semirremolque

Eje De Remolque
Eje De Remolque

Product Introduction Of Eje De Remolque

Technical Parameter of Eje De Remolque

ModelCapacity(kg)Track(mm)Axle TubePCD(mm)Total LengthRecommended Wheel
(mm)(mm)
LHAA-Y11T110001820○12733521657.5V-20
LHAA-Y13T130001840○12733521857.5V-20
LHAA-F13T130001840□15033521857.5V-20
LHAA-F14T140001840□15033521857.5V-20
LHAA-F16T160001850□15033522058.00V-20
LHAA-F20T200001850□15033522528.00V-20
1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  Eje De Remolque can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

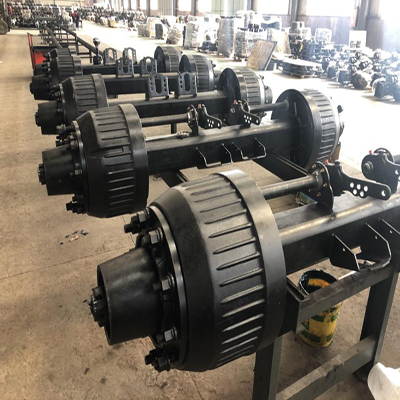

Detailed Images of Eje De Remolque

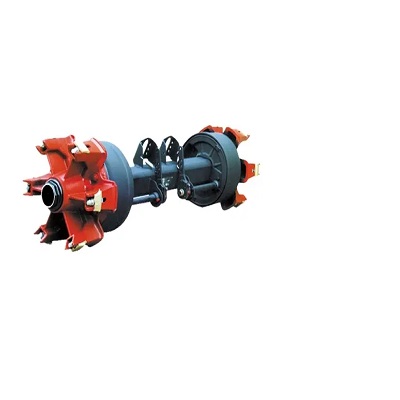

Hot Sale American Axle
Germany-Drum-Axle-2
Eje De Remolque
Germany-Drum-Axle-1
Eje De Remolque

Product Features of Eje De Remolque

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Eje De Remolque

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

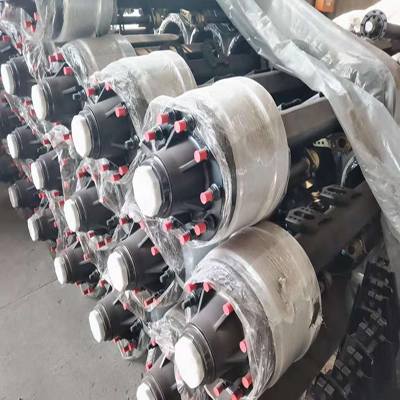

Package of Eje De Remolque

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Eje De Remolque
