Hot Axle Semi Trailer Axle Europe Disc Brake Shaft Axle For Sale

Europe Disc Brake
Europe Disc Brake

Product Introduction Of Europe Disc Brake

Technical Parameter of Europe Disc Brake

MODEL

Capacity

Tread Rut

Axle Tube

Total Length

Caliper WABCO

Recommended Wheel

LHU2009DB001AA

9/20kg/lbs

1835mm

127mm

2046mm

PAN19-1

7.50v-20

LHU2009DB001AA-00

11.5/25kg/lbs

1816mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-200

11.5/25kg/lbs

1850mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-300

11.5/25kg/lbs

1850mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-301

13/29kg/lbs

1850mm

150*150mm

2201mm

PAN22-1

8.0v-20

 Noted:

  1. The  Europe Disc Brake can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

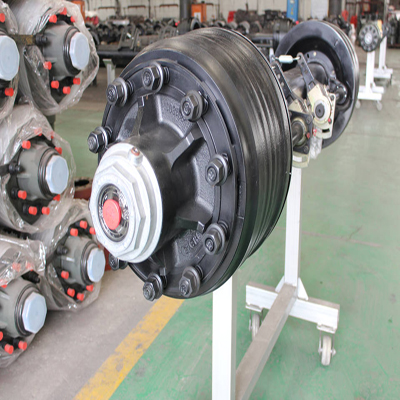

Detailed Images of Europe Disc Brake

Disc-3
Disc Brake Shaft Axle
Europe Disc Brake
Disc Brake Shaft Axle
Europe Disc Brake

Product Features of Europe Disc Brake

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. S-type cam head design and adjustable brake chamber sub-pump hole make its braking force larger, and it can more reasonably distribute the front, rear and rear axle braking forces, and the braking force distribution is more reasonable.
    The special formula shoe used has a large friction coefficient, high temperature resistance, better braking performance, and long-distance braking can also operate freely, which can shorten the braking distance.

Production Process of Europe Disc Brake

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Europe Disc Brake

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing
