Axle Used Semi Trailer Truck
Axle American Type Axle Used Semi Trailer Truck
2023-01-04
Heavy Duty Truck Axle
Heavy Duty Truck Axle Fuwa Shaft 16T From China Made
2023-01-04

Fuwa Axle Semi Trailer Truck American Type Axle 14T

Fuwa Axle Semi Trailer
Fuwa Axle Semi Trailer

Product Introduction Of Fuwa Axle Semi Trailer

Technical Parameter of Fuwa Axle Semi Trailer

ModelCapacity(kg)Track(mm)Axle TubePCD(mm)Total LengthRecommended Wheel
(mm)(mm)
LHAA-Y11T110001820○12733521657.5V-20
LHAA-Y13T130001840○12733521857.5V-20
LHAA-F13T130001840□15033521857.5V-20
LHAA-F14T140001840□15033521857.5V-20
LHAA-F16T160001850□15033522058.00V-20
LHAA-F20T200001850□15033522528.00V-20
1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The Fuwa Axle Semi Trailer can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

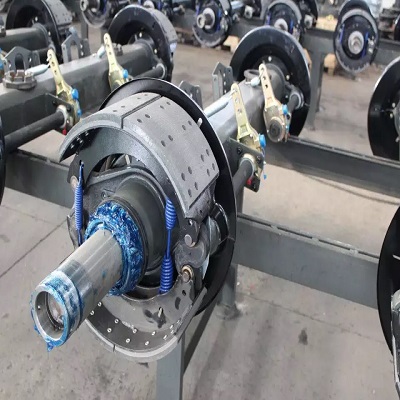

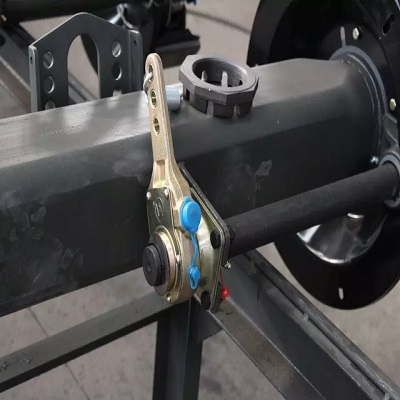

Detailed Images of Fuwa Axle Semi Trailer

Hot Sale American Axle
Fuwa Axle Semi Trailer
Fuwa Axle Semi Trailer
Fuwa Axle Semi Trailer
Fuwa Axle Semi Trailer

Product Features of Fuwa Axle Semi Trailer

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Fuwa Axle Semi Trailer

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Fuwa Axle Semi Trailer

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
