FUWA Axle Shaft
Brand New Outboard American Type 13t 16t Semi Trailer Parts Drum Brake Style FUWA Axle Shaft
2022-12-18
16 Ton Trailer Axle
Axles Trailer Parts American Type 16 Ton Trailer Axle With ABS System
2022-12-18

Preferable Strong 16T Drum Brake Style Axle FUWA Semi Trailer Axle For Sale

FUWA Semi Trailer Axle
FUWA Semi Trailer Axle

Product Introduction Of FUWA Semi Trailer Axle

Technical Parameter of FUWA Semi Trailer Axle

Model

Capacity(kg)

Track(mm)

Axle Tube

(mm)

PCD(mm)

Total Length

(mm)

Recommended Wheel

LHAA-Y11T

11000

1820

○127

335

2165

7.5V-20

LHAA-Y13T

13000

1840

○127

335

2185

7.5V-20

LHAA-F13T

13000

1840

□150

335

2185

7.5V-20

LHAA-F14T

14000

1840

□150

335

2185

7.5V-20

LHAA-F16T

16000

1850

□150

335

2205

8.00V-20

LHAA-F20T

20000

1850

□150

335

2252

8.00V-20

1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  FUWA Semi Trailer Axle can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

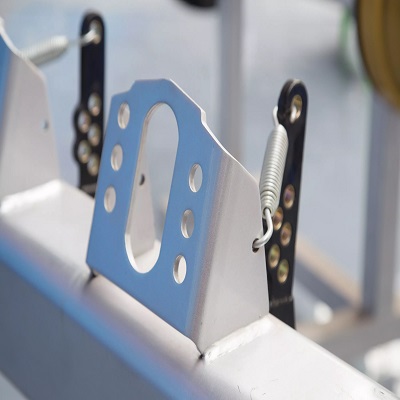

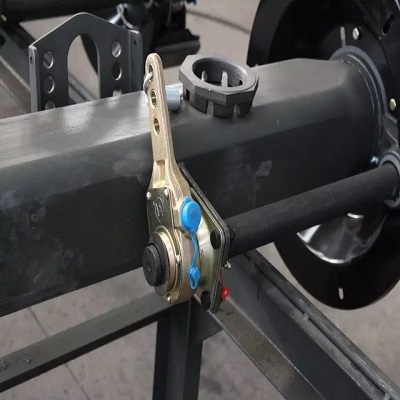

Detailed Images of FUWA Semi Trailer Axle

Hot Sale American Axle
FUWA Semi Trailer Axle
FUWA Semi Trailer Axle
FUWA Semi Trailer Axle
FUWA Semi Trailer Axle

Product Features of FUWA Semi Trailer Axle

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of FUWA Semi Trailer Axle

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of FUWA Semi Trailer Axle

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
