German Axle 12t
German Axle 12t Semi Trailer Made In China Track 1840mm For Sale
2023-02-04
Flat Bed Semi Trailer
Trailer Axles Used In Flat Bed Semi Trailer
2023-02-03

Heavy Duty Quality Trailer Parts Axle Trailer Axle For Dubai

Quality Trailer Parts
Quality Trailer Parts

Product Introduction Of Quality Trailer Parts

Technical Parameter of Quality Trailer Parts

MODELCapacityTread RutAxle TubeTotal LengthStudsRecommended Wheel
LHG/12T12T1840mm150*150*122144mm10-M22*1.5 ISO7.50v-20
LHG/14T14T1840mm150*150*142198mm10-M22*1.5 ISO8.00v-20
LHG/16T16T1850mm150*150*162272mm10-M22*1.5 ISO8.00v-20

 Noted:

  1. The  Quality Trailer Parts can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

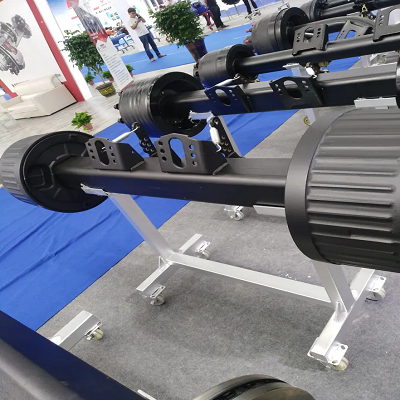

Detailed Images of Quality Trailer Parts

Hot Sale American Axle
Germany-Drum-Axle-2
Quality Trailer Parts
Germany-Drum-Axle-1
Quality Trailer Parts

Product Features of Quality Trailer Parts

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Quality Trailer Parts

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Quality Trailer Parts

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
