2023 Best Selling Independent Suspension American Type Suspension By Trailer

Selling Independent Suspension
Selling Independent Suspension

Product Introduction Of Selling Independent Suspension

Technical Parameter of Selling Independent Suspension

Model
Height of towing plate
A1
B1
A2
B2
A3
B3
H
Axle Load
LH-03-180
1180mm
489mm
459mm
480mm
450mm
467mm
437mm
185mm
16T*3
LH-03-230
1230mm
539mm
509mm
530mm
500mm
517mm
487mm
235mm
16T*3
LH-03-270
1270mm
579mm
549mm
570mm
540mm
557mm
527mm
275mm
16T*3
LH-03-320
1320mm
629mm
599mm
620mm
590mm
607mm
577mm
325mm
16T*3

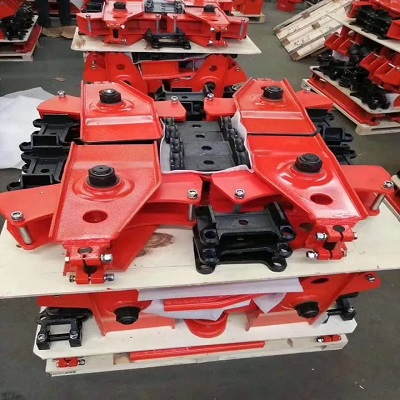

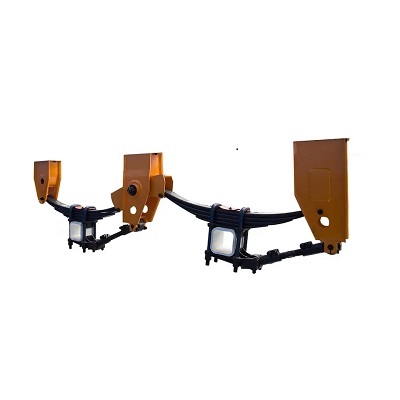

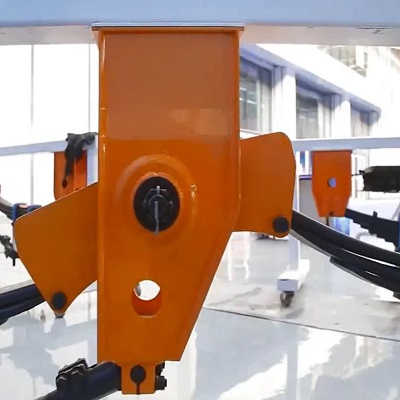

Detailed Images of Selling Independent Suspension

American Suspension
Selling Independent Suspension
Selling Independent Suspension
Selling Independent Suspension
Selling Independent Suspension

Product Features of Selling Independent Suspension

Hanger Assembly: The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.

Leaf Spring: Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.

Advantage:

  1. Carry greater vertical load and better torque.
  2. Easy installation, low price, long service life, low maintenance cost.
  3. It is suitable for various road conditions and has many optional specifications.

Production Process of Selling Independent Suspension

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of Selling Independent Suspension

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586
