Semi Trailer Axle Spare Parts Axle German Type Axle 14T For Sale

Semi Trailer Axle Spare
Semi Trailer Axle Spare

Product Introduction Of Semi Trailer Axle Spare

Technical Parameter of Semi Trailer Axle Spare

ModelCapacityTrack(mm)Axle TubeBrake SizePCDTotal LengthRecommended Wheel
(kg)(mm)(mm)(mm)
LHGA-F12T120001840○127420*18033521657.5V-20
LHGA-F14T140001840○127420*20033521857.5V-20
LHGA-F16T160001850□150420*20033521857.5V-20
LHGA-F18T180001850□150420*22033521857.5V-20
1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  Semi Trailer Axle Spare can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

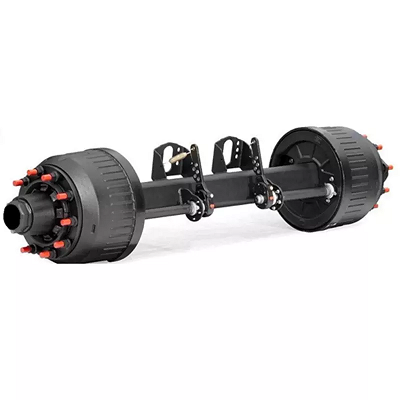

Detailed Images of Semi Trailer Axle Spare

Hot Sale American Axle
Germany-Drum-Axle-2
Semi Trailer Axle Spare
Germany-Drum-Axle-1
Semi Trailer Axle Spare

Product Features of Semi Trailer Axle Spare

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Semi Trailer Axle Spare

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Semi Trailer Axle Spare

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
