German Type Axle Suitable
Semi-trailer Accessories BPW 16T German Type Axle Suitable for Semi-trailer
2023-01-13
Trailer Parts Manufacture
China Trailer Parts Manufacture 12ton German Type Axle For Semi-trailer
2023-01-13

Hot Sale Semi-trailer Parts 16T BPW German Type Axle For Semi-trailer

Semi-trailer Parts 16T
Semi-trailer Parts 16T

Product Introduction Of Semi-trailer Parts 16T

Technical Parameter of Semi-trailer Parts 16T

Model

Capacity

(kg)

Track(mm)

Axle Tube

(mm)

Brake Size

PCD

(mm)

Total Length

(mm)

Recommended Wheel

LHGA-F12T

12000

1840

○127

420*180

335

2165

7.5V-20

LHGA-F14T

14000

1840

○127

420*200

335

2185

7.5V-20

LHGA-F16T

16000

1850

□150

420*200

335

2185

7.5V-20

LHGA-F18T

18000

1850

□150

420*220

335

2185

7.5V-20

 Noted:

  1. The Semi-trailer Parts 16T can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

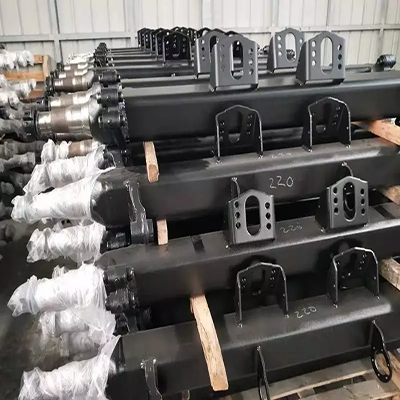

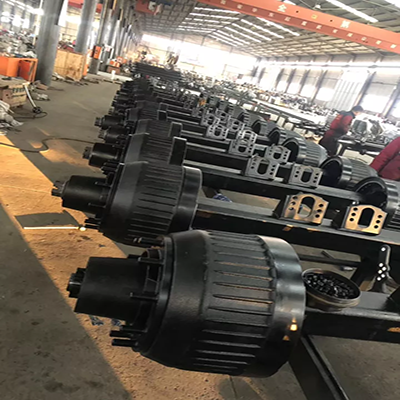

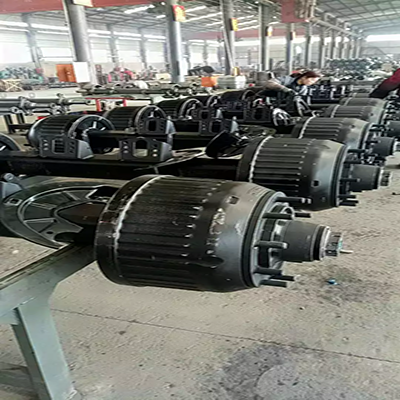

Detailed Images of Semi-trailer Parts 16T

Hot Sale American Axle
Semi-trailer Parts 16T
Semi-trailer Parts 16T
Semi-trailer Parts 16T
Semi-trailer Parts 16T

Product Features of Semi-trailer Parts 16T

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Semi-trailer Parts 16T

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Semi-trailer Parts 16T

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Semi-trailer Parts 16T
