Factory Hot Sale American Type Air Suspension With Lift Used Semi Trailer Shaft

Semi Trailer Shaft
Semi Trailer Shaft

Product Introduction Of Semi Trailer Shaft

Technical Parameter of Semi Trailer Shaft

Model

H

Offset Distance

Axle Spacing

Air Bag Spec

Axle Load

(mm)

(mm)

(mm)

(mm)

(kg)

LHGAS-38010

380

90

1220-1360

∅360

10000

LHGAS-43012

430

90

1220-1360

∅360

12000

LHGAS-48012

480

90

1220-1360

∅360

12000

LHGAS-38013

380

90

1220-1360

∅360

13000

LHGAS-43013

430

90

1220-1360

∅360

13000

LHGAS-48013

480

90

1220-1360

∅360

13000

1. It can be equipped with lifting air suspension according to customer requirements.

                              2. According to customer requirements, there are reverse/formal air suspensions.

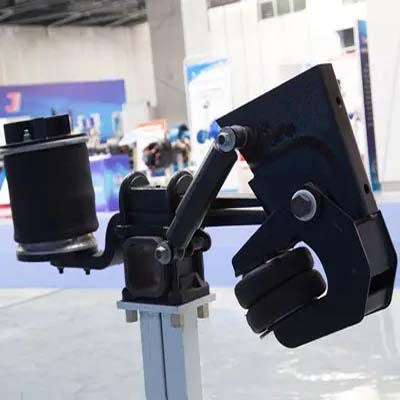

Detailed Images of Semi Trailer Shaft

Lift-for-Trailer-Truck-3
Semi Trailer Shaft
Lift-for-Trailer-Truck-5
Semi Trailer Shaft

Advantages of Semi Trailer Shaft

  1. The light weight reduces the impact on the body and improves the ground adhesion of the wheel; the softer spring with less stiffness can improve the comfort of the car; the engine position can be lowered, the car center of gravity can be reduced, and the car can be driven. Stability; the left and right wheels are individually beating and independent of each other, which can reduce the tilt and vibration of the body.
  2. Modern cars mostly use single-point suspension systems. According to their different structural forms, single-point suspension systems can be divided into cross-arm type, trailing arm type, multi-link type, candle type and McPherson suspension system.

Production Process of Semi Trailer Shaft

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of Semi Trailer Shaft

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586

FAQ of Semi Trailer Shaft
