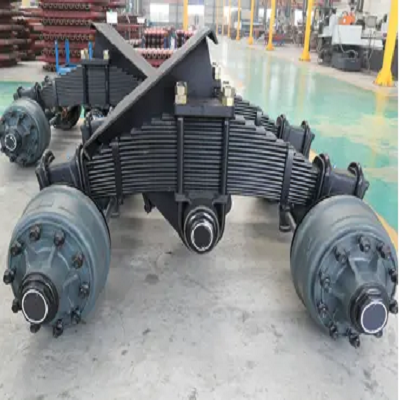

Trailer Parts Bogie Suspension Single Point Suspension For Sale

Suspension Single Point
Suspension Single Point

Product Introduction Of Suspension Single Point

Technical Parameter of Suspension Single Point

ModelCapacity(kg)Track-TK(mm)Wheel Base-WBLeaf Spring Center Distance(mm)
(mm)
LHBS-GA24240018401400980
LHBS-GA28280018401550900
LHBS-GA32320018501550900
ModelLeaf Spring Width/QTY(mm)Panel Dimension-A*B*CPCD(mm)Recommend Wheel Rim
(mm)
LHBS-GA2490*16-18980*800*14∅3357.5V-20
LHBS-GA28120*16-17980*800*14∅3358.0V-20
LHBS-GA32120*16-17980*700*14∅3358.0V-20
                                            1. Each part can be customized according to customer requirements.
                                            2. German type/American type/spoke type can be selected for axles.

Detailed Images of Suspension Single Point

Trailer-Suspension-Bogie
Trailer-Suspension-Bogie-2
Suspension Single Point
Trailer-Suspension-Bogie-3
Suspension Single Point

Advantages of Suspension Single Point

  1. The light weight reduces the impact on the body and improves the ground adhesion of the wheel; the softer spring with less stiffness can improve the comfort of the car; the engine position can be lowered, the car center of gravity can be reduced, and the car can be driven. Stability; the left and right wheels are individually beating and independent of each other, which can reduce the tilt and vibration of the body.
  2. Modern cars mostly use single-point suspension systems. According to their different structural forms, single-point suspension systems can be divided into cross-arm type, trailing arm type, multi-link type, candle type and McPherson suspension system.

Production Process of Suspension Single Point

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of Suspension Single Point

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586

FAQ of Suspension Single Point
