Suspension German Type Suspension Used Semi Trailer Truck

Suspension Used
Suspension Used

Product Introduction Of Suspension Used

Technical Parameter of Suspension Used

Model

Axle Load

(T)

Leaf Spring Specifications

(mm)

Steel Plate Thickness

(mm)

H

(mm)

LHGS-2/312

12

100*12-12

8

153

LHGS-2/314

14

100*12-12

10

153

LHGS-2/316

16

100*14-12

10

153

1. Can be equipped with 13/16/20T axles.                         2. Can be equipped with round shaft/square shaft.

       3. You can choose front/reverse installation.                     4. Can choose the leaf spring specification.

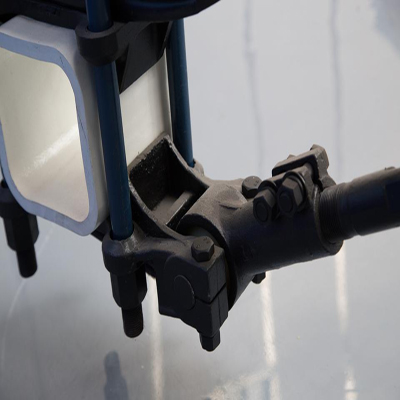

Detailed Images of Suspension Used

German Type Suspension
Suspension Used
German Type Suspension
Suspension Used

Advantages of Suspension Used

  1. German suspension effectively reduces the severe vibration during vehicle operation and ensures the best braking performance of the vehicle.
  2. Smooth operation to protection of various items from the impact of vehicle operation.
  3. German suspension makes the car adapt to the road condition faster and better.
  4. When the vehicle is running at no load, the axle is lifted by the axle lifting device to reduce tire wear.
  5. German suspension lifting device can raise or lower the height of the vehicle for easy unloading.

Production Process of Suspension Used

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembly
Assembly
Finished-Products
Finished Products

Package of Suspension Used

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-586

FAQ of Suspension Used

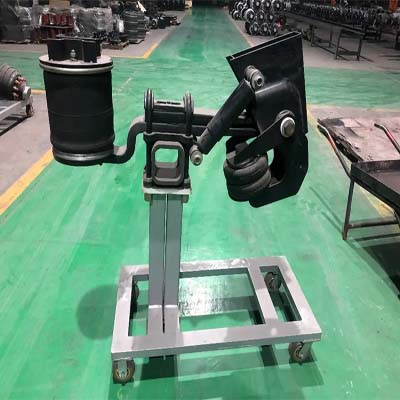

Hot Products of German Suspension
