High Quality Trailer Parts
High Quality Trailer Parts Disc Brake Shaft Axle from China Manufacturer
2023-02-06
Used Disc Brake Axle
BEST SELLING Semi Trailer Used Disc Brake Axle For Trailer
2023-02-06

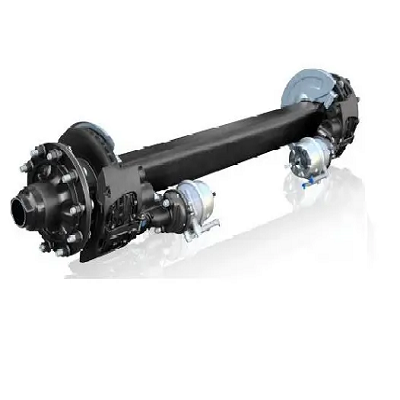

Disc Brake Shaft Axle For Trailer And Semi Trailer Sale

Trailer And Semi Trailer
Trailer And Semi Trailer

Product Introduction Of Trailer And Semi Trailer

Technical Parameter of Trailer And Semi Trailer

MODEL

Capacity

Tread Rut

Axle Tube

Total Length

Caliper WABCO

Recommended Wheel

LHU2009DB001AA

9/20kg/lbs

1835mm

127mm

2046mm

PAN19-1

7.50v-20

LHU2009DB001AA-00

11.5/25kg/lbs

1816mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-200

11.5/25kg/lbs

1850mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-300

11.5/25kg/lbs

1850mm

127mm

2046mm

PAN22-1

8.0v-20

LHU2009DB001AA-301

13/29kg/lbs

1850mm

150*150mm

2201mm

PAN22-1

8.0v-20

 Noted:

  1. The  Trailer And Semi Trailer can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

Detailed Images of Trailer And Semi Trailer

Disc-3
Disc Brake Shaft Axle
Trailer And Semi Trailer
Disc Brake Shaft Axle
Trailer And Semi Trailer

Product Features of Trailer And Semi Trailer

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. S-type cam head design and adjustable brake chamber sub-pump hole make its braking force larger, and it can more reasonably distribute the front, rear and rear axle braking forces, and the braking force distribution is more reasonable.
    The special formula shoe used has a large friction coefficient, high temperature resistance, better braking performance, and long-distance braking can also operate freely, which can shorten the braking distance.

Production Process of Trailer And Semi Trailer

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer And Semi Trailer

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing

FAQ of Trailer And Semi Trailer
