German Type Axles Trailer Axle Kits

Trailer Axle Kits
Trailer Axle Kits

Product Introduction Of Trailer Axle Kits

Technical Parameter of Trailer Axle Kits

 Model  Capacity  Brake size Track Axle Tube Studs PCD Bearing
     (kg)    (mm) (mm) (mm)
LHG-12T 12000   S420*180 1840 150*150*12 10*M22*1.5 ISO 335 32313/33118
LHG-14T  14000   S420*180 1840 150*150*14 10*M22*1.5 ISO 335 32315/32319
LHG-16T  16000   S420*200 1850  150*150*16 10*M22*1.5 ISO 335 32314/3222

 Noted:

  1. The  Trailer Axle Kits can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

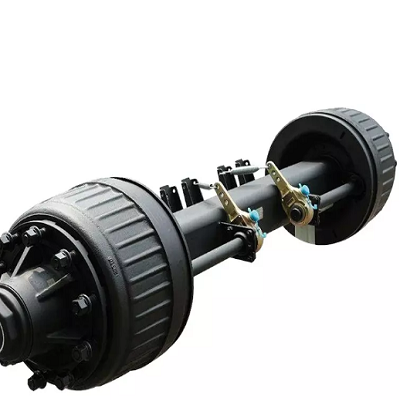

Detailed Images of Trailer Axle Kits

Hot Sale American Axle
Germany-Drum-Axle-2
Trailer Axle Kits
Germany-Drum-Axle-1
Trailer Axle Kits

Product Features of Trailer Axle Kits

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Axle Kits

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Axle Kits

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
