Drum Inboard Axle
Heavy Duty Trailer Parts Online Customization Semi Trailer 16ton 13t American Drum Inboard Axle Axles From Chinese Manufacturer
2022-12-08
Trailer Spare Parts
 Trailer Spare Parts Axle Have Good Quality American Type Axle For Hot Sale
2022-12-08

China Heavy Duty Trailer Axles Manufacturers for Sale

China Heavy Duty Trailer Axles Manufacturers for Sale
Trailer Axles Manufacturers

Product Introduction Of Trailer Axles Manufacturers

Technical Parameter of Trailer Axles Manufacturers

Model

 Capacity

   (kg)

 Brake size

   (mm)

Track

(mm)

Axle Tube

(mm)

StudsPCD

Total length

(mm)

Bearing
LH/10.5T 10500  S420*1801820round 127*12710*M22*1.5335~2165

InnerIIM518445/10

OuterIIM518445/10



LH/13T 13000  S420*1801840square 150*15010*M22*1.5335~2185
LH/14T 14000  S420*2001840square 150*15010*M22*1.5335



~2185

LH/16T 16000  S420*2201850square 150*15010*M22*1.5335~2205
LH/20T 20000  S420*2201850square 150*15010*M24*1.5335~2252



 Noted:

  1. The Trailer Axles Manufacturers can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

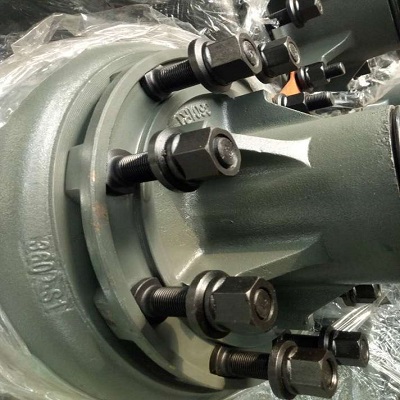

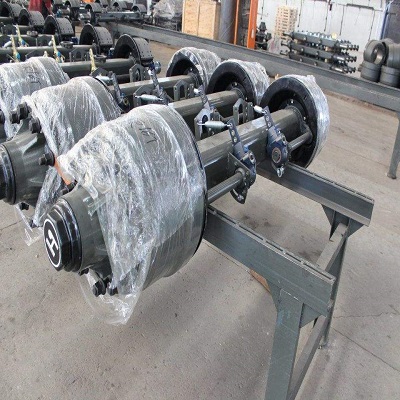

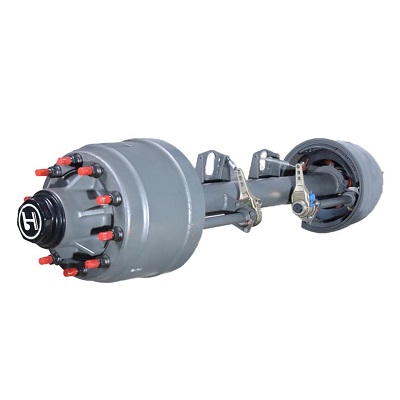

Detailed Images of Trailer Axles Manufacturers

Hot Sale American Axle
China Heavy Duty Trailer Axles Manufacturers for Sale
Trailer Axles Manufacturers
China Heavy Duty Trailer Axles Manufacturers for Sale
Trailer Axles Manufacturers

Product Features of Trailer Axles Manufacturers

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Axles Manufacturers

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Axles Manufacturers

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
