2023 Popular Customized American Type Trailer Axles Trailer Manufacturer

Trailer Axles Trailer
Trailer Axles Trailer

Product Introduction Of Trailer Axles Trailer

Technical Parameter of Trailer Axles Trailer

  Model

 Capacity

 Brake size

Track

Axle Tube

Studs

PCD

Total length

Bearing

   (kg)

   (mm)

(mm)

(mm)

(mm)

LH/11.5T

 11500

  S420*180

1820

round 127*16

10*M22*1.5 ISO

335

~2183

InnerIIM518445/10

LH/11.5T

 13000

  S420*180

1840

round 127*18

10*M22*1.5 ISO

335

~2183

OuterIIM518445/10

LH/13T

 13000

  S420*180

1840

round 127*18

10*M22*1.5 ISO

335





~2183



LH/13T

 13000

  S420*180

1840

round 127*18

10*M22*1.5 ISO

335

~2183



LH/16T

 16000

  S420*220

1850

round 127*18

10*M24*1.5 ISO

335

~2183



 Noted:

  1. The  Trailer Axles Trailer can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

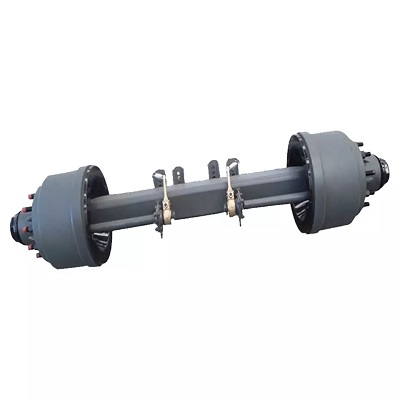

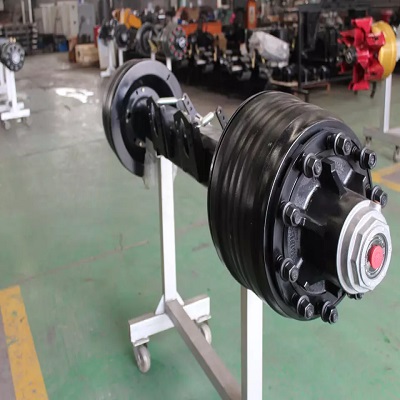

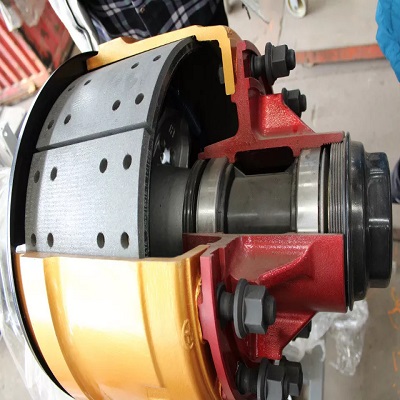

Detailed Images of Trailer Axles Trailer

Hot Sale American Axle
Trailer Axles Trailer
Trailer Axles Trailer
Trailer Axles Trailer
Trailer Axles Trailer

Product Features of Trailer Axles Trailer

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Axles Trailer

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Axles Trailer

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
