Trailer Parts 32T Bogie Suspension With 16T American Type Axle Wheel Beam 1400mm

Trailer Parts 32T
Trailer Parts 32T

Product Introduction Of Trailer Parts 32T

Technical Parameter of Trailer Parts 32T

Model Capacity(mm) Brake Size (mm) P.C.D(mm) Axle Tube(mm) Track(mm) Spring Center (mm)
LH1-13T 13T 420*180 335 Square150 1840 950
LH2-13T 13T 420*180 335 Round/Square127 1840 930
LH-14T 14T 420*220 335 Square150 1840 930
LH-16T 16T 420*220 335 Square150 1840 940
LH-20T 20T 420*220 335 Square150 1840 940

 Noted:

  1. The  Trailer Parts 32T can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

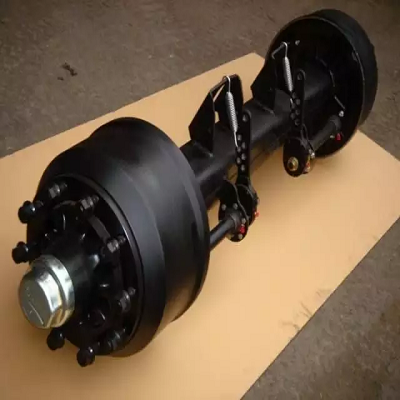

Detailed Images of Trailer Parts 32T

Hot Sale American Axle
Semi-trailer-parts
Trailer Parts 32T
Semi-trailer-parts-2
Trailer Parts 32T

Product Features of Trailer Parts 32T

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Parts 32T

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Parts 32T

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Trailer Parts 32T
