Semi Trailer Parts American Axles

Trailer Parts American Axles
Trailer Parts American Axles

Product Introduction Of Trailer Parts American Axles

Technical Parameter of Trailer Parts American Axles

Model Capacity Brake sizeTrackAxle TubeStudsPCDTotal lengthBearing
   (kg)   (mm)(mm)(mm)(mm)
LH/10.5T 10500  S420*1801820round 127*12710*M22*1.5335~2165

InnerIIM

518445/10

LH/13T 13000  S420*1801840square 150*15010*M22*1.5335~2185

OuterIIM

518445/10

LH/14T 14000  S420*2001840square 150*15010*M22*1.5335
~2185
LH/16T 16000  S420*2201850square 150*15010*M22*1.5335~2205
LH/20T 20000  S420*2201850square 150*15010*M24*1.5335~2252

 Noted:

  1. The  Trailer Parts American Axles can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

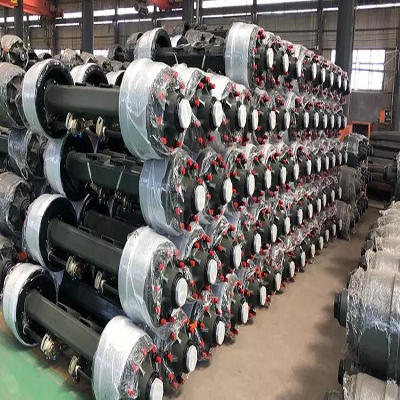

Detailed Images of Trailer Parts American Axles

Hot Sale American Axle
Semi-trailer-parts
Trailer Parts American Axles
Semi-trailer-parts-2
Trailer Parts American Axles

Product Features of Trailer Parts American Axles

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Parts American Axles

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Parts American Axles

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Trailer Parts American Axles
