German Type Spoke Axle 16MT For Middle East Market

Type Spoke Axle 16MT
Type Spoke Axle 16MT

Product Introduction Of Type Spoke Axle 16MT

Technical Parameter of Type Spoke Axle 16MT

MODEL

Capacity

Tread Rut

Axle Tube

Total Length

Studs

Recommended Wheel

LH-4321610

12T

1840mm

□150mm

2158mm

6-M20*2

Trilex wheel 8.5-24

LH-4351610

12T

1840mm

□150mm

2158mm

6-M20*2

Trilex wheel 8.5-24

LH-4327610

14T

1840mm

□150mm

2172mm

6-M20*2

Trilex wheel 8.5-24

LH-4328610

16T

1840mm

□150mm

2245mm

6-M20*2

Trilex wheel 8.5-24

LH-4329610

18T

1840mm

□150mm

2245mm

6-M20*2

Trilex wheel 8.5-24

LH-4352610

18T

1840mm

□150mm

2245mm

6-M20*2

Trilex wheel 8.5-24

 Noted:

  1. The Type Spoke Axle 16MT can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

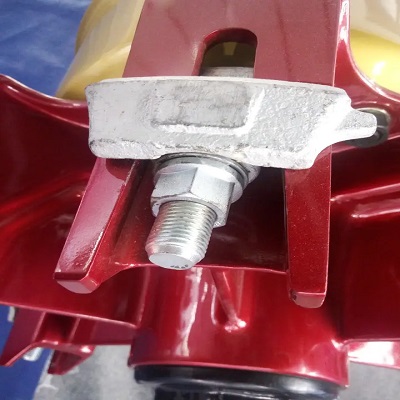

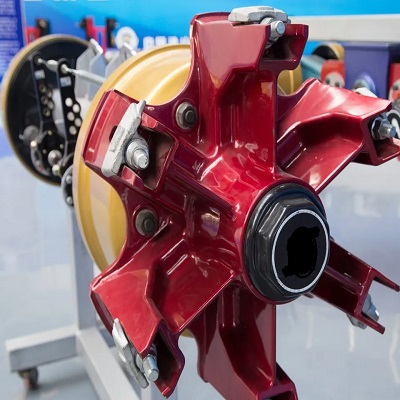

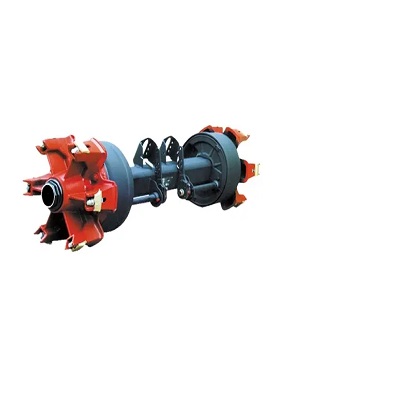

Detailed Images of Type Spoke Axle 16MT

Spoke-Axle-1a
Type Spoke Axle 16MT
Type Spoke Axle 16MT
Type Spoke Axle 16MT
Type Spoke Axle 16MT

Product Features of Type Spoke Axle 16MT

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. S-type cam head design and adjustable brake chamber sub-pump hole make its braking force larger, and it can more reasonably distribute the front, rear and rear axle braking forces, and the braking force distribution is more reasonable.
    The special formula shoe used has a large friction coefficient, high temperature resistance, better braking performance, and long-distance braking can also operate freely, which can shorten the braking distance.

Production Process of Type Spoke Axle 16MT

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Type Spoke Axle 16MT

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
