16T ISO/TS9001 Trailer Swivel Rear Wheel Trailer Axles

Wheel Trailer Axles
Wheel Trailer Axles

Product Introduction Of Wheel Trailer Axles

Technical Parameter of Wheel Trailer Axles

ModelCapacityTrack(mm)Axle TubeBrake SizePCDTotal LengthRecommended Wheel
(kg)(mm)(mm)(mm)
LHGA-F12T120001840○127420*18033521657.5V-20
LHGA-F14T140001840○127420*20033521857.5V-20
LHGA-F16T160001850□150420*20033521857.5V-20
LHGA-F18T180001850□150420*22033521857.5V-20
1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  Wheel Trailer Axles can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

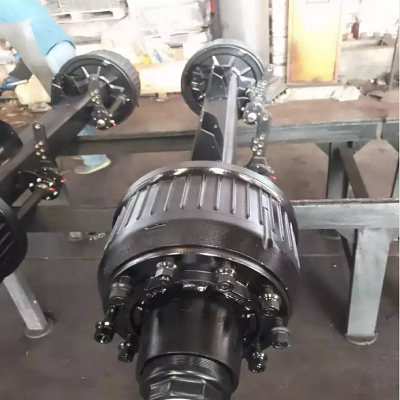

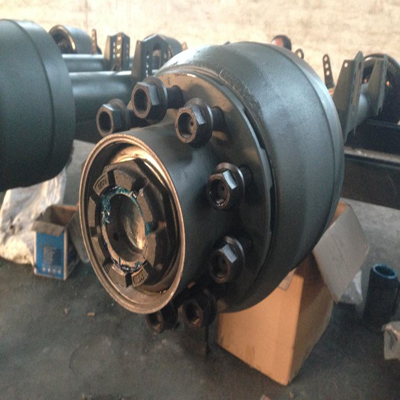

Detailed Images of Wheel Trailer Axles

Hot Sale American Axle
Germany-Drum-Axle-2
Wheel Trailer Axles
Germany-Drum-Axle-1
Wheel Trailer Axles

Product Features of Wheel Trailer Axles

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Wheel Trailer Axles

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Wheel Trailer Axles

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
