12T 14T Track
German Type Axle 12T 14T Track 1840 1850 German Type Axle High Quality For Semi Trailer
2023-02-03
16 Ton German Axle
High Quality 16 Ton German Axle For Semi Trailer Green Can Be Customized
2023-02-03

German Type Axle 16T 14T 12T For Semi Trailer

16T 14T 12T
16T 14T 12T

Product Introduction Of 16T 14T 12T

Technical Parameter of 16T 14T 12T

Model

Capacity

(kg)

Track(mm)

Axle Tube

(mm)

Brake Size

PCD

(mm)

Total Length

(mm)

Recommended Wheel

LHGA-F12T

12000

1840

○127

420*180

335

2165

7.5V-20

LHGA-F14T

14000

1840

○127

420*200

335

2185

7.5V-20

LHGA-F16T

16000

1850

□150

420*200

335

2185

7.5V-20

LHGA-F18T

18000

1850

□150

420*220

335

2185

7.5V-20

 Noted:

  1. The  16T 14T 12T can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

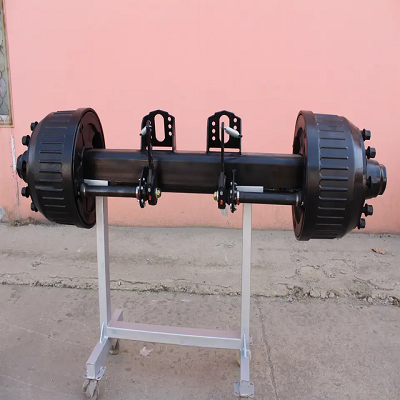

Detailed Images of 16T 14T 12T

Hot Sale American Axle
Germany-Drum-Axle-2
16T 14T 12T
Germany-Drum-Axle-1
16T 14T 12T

Product Features of 16T 14T 12T

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of 16T 14T 12T

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of 16T 14T 12T

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
