Semi Trailer Parts Used
Factory Hot Sale American Type Axle 13Ton Axle Semi Trailer Parts Used For Air/Bogie Suspension
Hot Sale Semi Trailer Axle
Track 1840mm Fuwa Axle Hot Sale Semi Trailer Axle Made In China

China Factory Rear Axle American Type 13t Axles For Heavy Duty Truck Trailer

American Type 13t Axles
American Type 13t Axles

Product Introduction Of American Type 13t Axles

Technical Parameter of American Type 13t Axles

 Model Capacity Brake sizeTrackAxle TubeStudsPCDTotal lengthBearing
   (kg)   (mm)(mm)(mm)(mm)
LH/10.5T 10500  S420*1801820round 127*12710*M22*1.5335~2165InnerIIM518445/10
LH/13T 13000  S420*1801840square 150*15010*M22*1.5335~2185OuterIIM518445/10
LH/14T 14000  S420*2001840square 150*15010*M22*1.5335
LH/16T 16000  S420*2201850square 150*15010*M22*1.5335~2205
LH/20T 20000  S420*2201850square 150*15010*M24*1.5335~2252


  1. The  American Type 13t Axles  can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

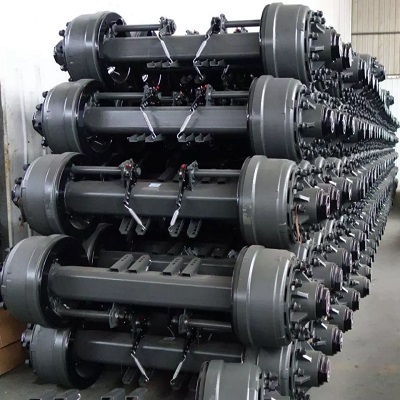

Detailed Images of American Type 13t Axles

Hot Sale American Axle
American Type 13t Axles
American Type 13t Axles

Product Features of American Type 13t Axles

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of American Type 13t Axles

Raw Materials
Cutting Pipe
Plate Cutting
Shot Blasting
Finished Products

Package of American Type 13t Axles

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.

FAQ of American Type 13t Axles
