Type 13T Axle
China Trailer Spare Parts Supplier Outboard FUWA Axle American Type 13T Axle
2022-12-18
FUWA Axle Shaft
Brand New Outboard American Type 13t 16t Semi Trailer Parts Drum Brake Style FUWA Axle Shaft
2022-12-18

Semi Trailer Parts 20T American Type Trailer Axle With Best Price

American Type Trailer Axle
American Type Trailer Axle

Product Introduction Of American Type Trailer Axle

Technical Parameter of American Type Trailer Axle

Item
value
Use
Trailer Parts
Parts
Trailer Axles
OE NO.
LH01
Max Payload
20T
Size
20T
Place of Origin
China

Shandong
Brand Name
LUEN
Product Name
LUEN Semi Trailer Parts 20T American Type Trailer Axle with Best Price
Material
Steel
Application
Trailer Truck Used
Color
Customer Demands
Capacity
20T
Track
1850mm
Axle Tube
Square150*150mm
P.C.D
335mm
Certificate
ISO 9001
Package
Standard Package/Customer Requirements



 Noted:

  1. The  American Type Trailer Axle can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

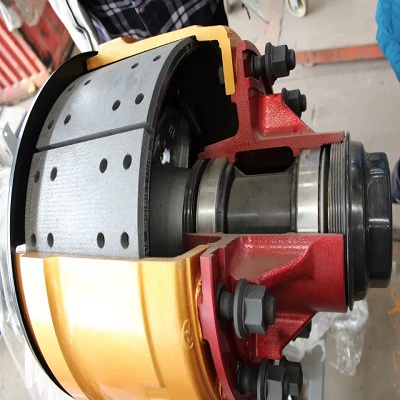

Detailed Images of American Type Trailer Axle

Hot Sale American Axle
American Type Trailer Axle
American Type Trailer Axle

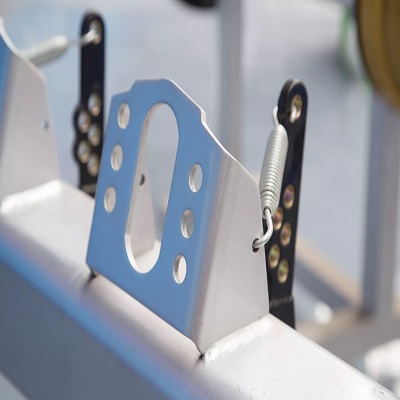

FUWA Axle Shaft
American Type Trailer Axle

Product Features of American Type Trailer Axle

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of American Type Trailer Axle

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of American Type Trailer Axle

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of American Type Trailer Axle
