China Trailer Spare Parts Supplier Outboard FUWA Axle American Type 13T Axle

Type 13T Axle
Type 13T Axle

Product Introduction Of Type 13T Axle

Technical Parameter of Type 13T Axle

Model

Capacity(kg)

Track(mm)

Axle Tube

(mm)

PCD(mm)

Total Length

(mm)

Recommended Wheel

LHAA-Y11T

11000

1820

○127

335

2165

7.5V-20

LHAA-Y13T

13000

1840

○127

335

2185

7.5V-20

LHAA-F13T

13000

1840

□150

335

2185

7.5V-20

LHAA-F14T

14000

1840

□150

335

2185

7.5V-20

LHAA-F16T

16000

1850

□150

335

2205

8.00V-20

LHAA-F20T

20000

1850

□150

335

2252

8.00V-20

1. Provide customized services.                                   2. It can be equipped with ABS brake.

 Noted:

  1. The  Type 13T Axle can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

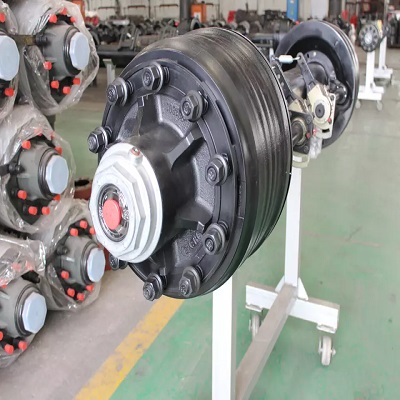

Detailed Images of Type 13T Axle

Hot Sale American Axle
Type 13T Axle
Type 13T Axle
Type 13T Axle
Type 13T Axle

Product Features of Type 13T Axle

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.

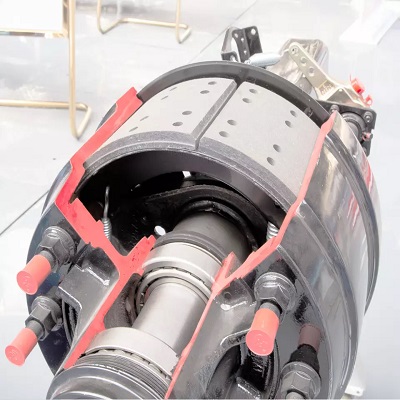

  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Type 13T Axle

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Type 13T Axle

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1
