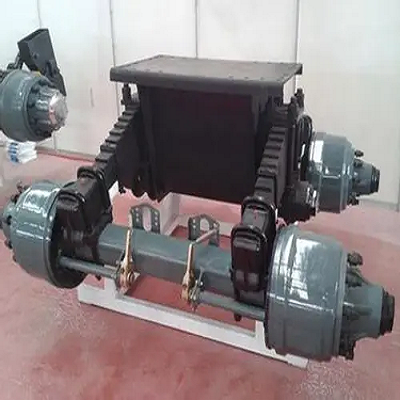

2023 Best Selling Trailer Suspension Bogie Suspension

Single Point Suspension Bogie 24T 32T Tandem Trailer Axle

Single Point Suspension
Single Point Suspension

Product Introduction Of Single Point Suspension

Technical Parameter of Single Point Suspension

Model Capacity(mm) Axe Tube Brake Size Track
LH-24 24T 150*150*12 420*200 1400
LH-28 28T 150*150*14 420*200 1550
LH-32 32T 150*150*16 420*200 1550

Detailed Images of Single Point Suspension

Single Point Suspension
Single Point Suspension

Advantages of Single Point Suspension

  1. The light weight reduces the impact on the body and improves the ground adhesion of the wheel; the softer spring with less stiffness can improve the comfort of the car; the engine position can be lowered, the car center of gravity can be reduced, and the car can be driven. Stability; the left and right wheels are individually beating and independent of each other, which can reduce the tilt and vibration of the body.
  2. Modern cars mostly use single-point suspension systems. According to their different structural forms, single-point suspension systems can be divided into cross-arm type, trailing arm type, multi-link type, candle type and McPherson suspension system.

Production Process of Single Point Suspension

Raw Materials
Cutting Pipe
Plate Cutting
Shot Blasting
Finished Products

Package of Single Point Suspension

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.

FAQ of Single Point Suspension
