China American Type 14T Inboard Semi Trailer Torsion Axle For Trailer Factory

Trailer Torsion Axle
Trailer Torsion Axle

Product Introduction Of Trailer Torsion Axle

Technical Parameter of Trailer Torsion Axle

Model

Capacity(mm)

Brake Size (mm)

P.C.D(mm)

Axle Tube(mm)

Track(mm)

Spring Center (mm)

LH1-13T

13T

420*180

335

Square150

1840

950

LH2-13T

13T

420*180

335

Round/Square127

1840

930

LH-14T

14T

420*220

335

Square150

1840

930

LH-16T

16T

420*220

335

Square150

1840

940

LH-20T

20T

420*220

335

Square150

1840

940

 Noted:

  1. The  Trailer Torsion Axle can be customized according to customer requirements
  2. Axles can install ABS brake.
  3. Axles can install Air brake chamber

Detailed Images of Trailer Torsion Axle

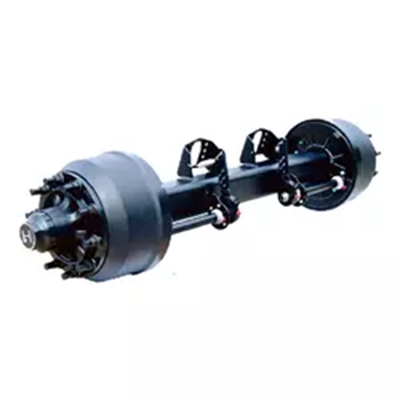

Hot Sale American Axle
Semi-trailer-parts
Trailer Torsion Axle
Semi-trailer-parts-2
Trailer Torsion Axle

Product Features of Trailer Torsion Axle

  1. Shaft body advantage: the shaft tube is made of high quality alloy steel by special technology, high strength, light weight, good coaxiality of both ends of the tube body.
  2. Brake advantage: the brake shoe seat is finished in one time by six-hole boring machine, high processing volume, high positioning accuracy, asbestos-free friction plate, in line with international environmental protection standards.
  3. The axle beam is made of seamless 20Mn2 tubes, which are press-forged in one piece and specially heat-treated to provide great overload capacity and high strength.

Production Process of Trailer Torsion Axle

Raw Materials
Cutting Pipe
Plate Cutting
Machining
Welding
Shot Blasting
Painting
Assembiy
Finished Products

Package of Trailer Torsion Axle

Normally, we packing our goods with wooden cases.

  1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
  2. Protective packaging for specific parts:
    The wheels are packed in highly elastic pearl cotton to prevent collisions during transport.
    The bolts and caps have a protective sleeve of their own.
    The wheels are wrapped in stretch film to prevent damage.
packing-1

FAQ of Trailer Torsion Axle
